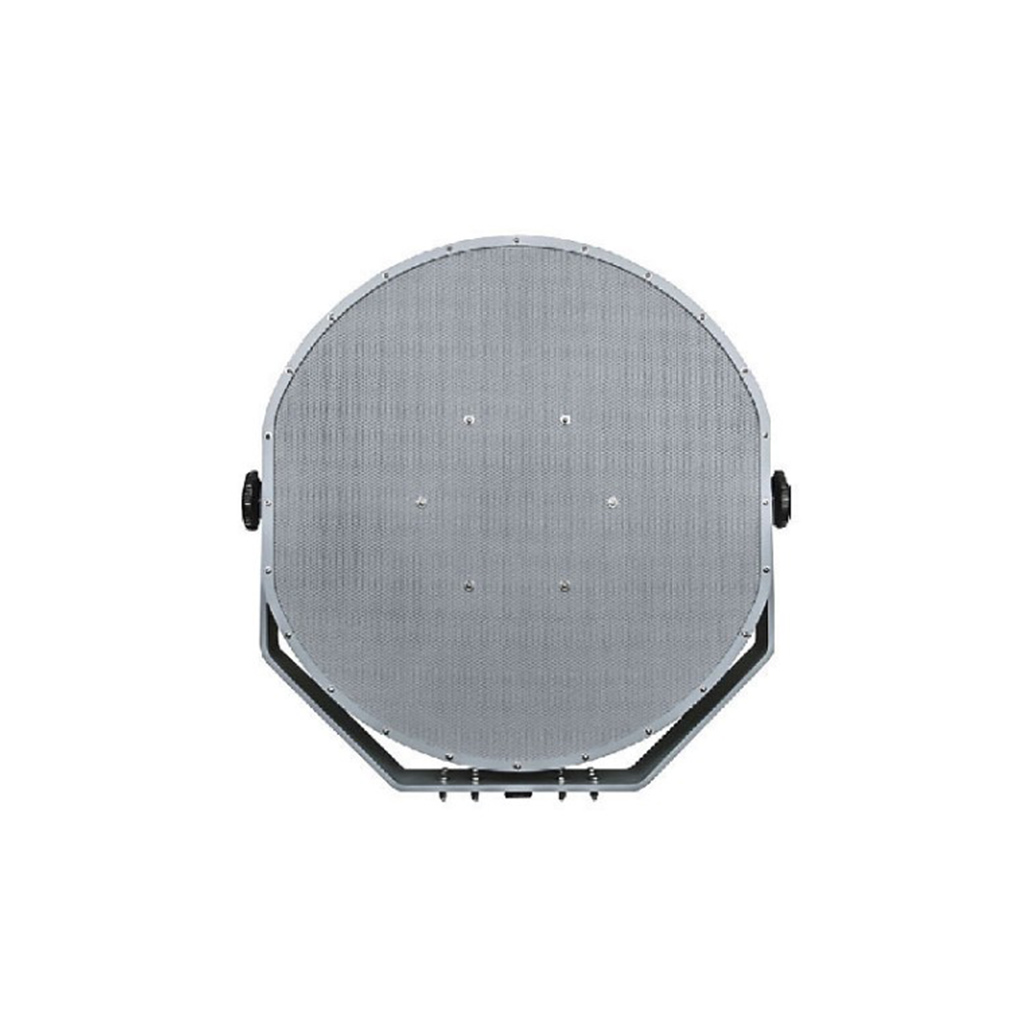

LRAD 1950XL
LRAD 1950XL
OPERATING INFORMATION
- LRAD 1950XL-G : LRAD 1950XL extended range communication system
ACOUSTIC PERFORMANCE
- Maximum Peak Output : 160 dB SPL @ 1 meter, C-weighted
- Maximum Continuous Output : 155 dB SPL @ 1 meter, A-weighted
- Sound Projections : +/- 15° @ 1 kHz / -3 dB
- Communication Ranges : Highly intelligible voice messages over distances up to 5,000 meters in ideal conditions. Operational range up to 1,600 meters over 88 dB of background noise. Ranges based on continuous output.
MECHANICAL SPESIFICATIONS
- Dimensions (HxWxD) : 36 x39 x 12 in (91 x 99 x 31 cm)
- Weight : 90 lbs. (41 kg) (Head unit)
- Construction : Molded low smoke composite, 6061 Aluminum, 316 stainless hardware
- Electronics Housing (WxHxD) : 9 x 22 x 15 in (23 x 56 x 38 cm) water resistant case
INCLUDED ACCESSORIES
- Control Module : Remote MP3 control module
- Record on the Fly Mic : Microphone with record and playback feature for immediate playback
- Auxiliary Cable : Allows connection to any audio device with a headphone jack
- USB Cable : USB cable for downloading files to the MP3 player
- Normalizer Software : Normalizer software for creating customized audio recordings on a PC
- Tripod (Optional) : Rugged, easily transportable aluminum tripod that sets up quickly for rapid employment
ENVIRONMENTAL PERFROMANCE
- Cold/Hot Operating Temperature : MIL-STD-810G, Method 501.5 & 502.5, Procedure II, -33°C to 55°C
- Cold/Hot Storage Temperature : MIL-STD-810G, Method 501.5 & 502.5, Procedure I, -40°C to 70°C
- Operating Humidity : MIL-STD-810G, Method 507.5, Procedure II, Aggravated Cycle
- Rain : MIL-STD-810G, Method 506.5, Procedure I, Blowing rain
- Salt Fog : MIL-STD-810G, Method 509.5
- Shock : MIL-STD-810G, Method 516.6, Procedure I
ELECTRICAL REQUIREMENTS
- Power Consumption : Peak power consumption 1120 Watts
- Power Input : 90 - 260 VAC 50/60 Hz
- Electromagnetic Compatibility (EMC) : FCC Part 15 class A radiated emissions, CE
The LRAD 1950XL issues clear, authoritative warnings, verbal commands, and attention-grabbing deterrent tones to initiate and scale the escalation of force and enhance response capabilities. The optimized frequency range and advanced technology of the LRAD 1950XL ensure voice messages are clearly heard and understood in any language over distances up to 5,000 meters.
