LMX-1202M-SFP
Featured Information
LMX-1202M-SFP
FEATURES
- Supports 8*10/100Tx Fast Ethernet Ports and 2*10/100/1000Tx RJ45 + 2*100/1000 SFP Slots
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Configuration : Web Console, Telnet, CLI Command
- Supports IGMP v1/v2, up to 256 Groups
- Supports QoS (IEEE802.1p) and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c
- System Warning Setting for Automatic Warning through E-Mail
- Redundant Power Input Design – 12~48VDC
- Housing : Metal IP 30 Rated; DIN-Rail and Wall Mount Support
- Standard Operating Temperature : -10~70C
SPECIFICATIONS
- Power Consumption : 15 Watts
- Certifications : FCC, CE, UL 61010-1, 61010-2-201, NEMA TS2
- Weight : Unit: 2.2 lbs.; Shipping: 3.3 lbs.
- Wavelength : Refer to SFP Modules
- Configuration : Web Console, Telnet, CLI
- Switching Architecture : Back-Plane (Switching Fabric): 10.0Gbps
- Serial Console : 1*RS232 (RJ45 Connector)
- Dimensions : 54 x 142 x 99 mm
- Input Voltage & Connection : 12~48VDC Redundant Input w/ 1 removable 6-contact terminal block

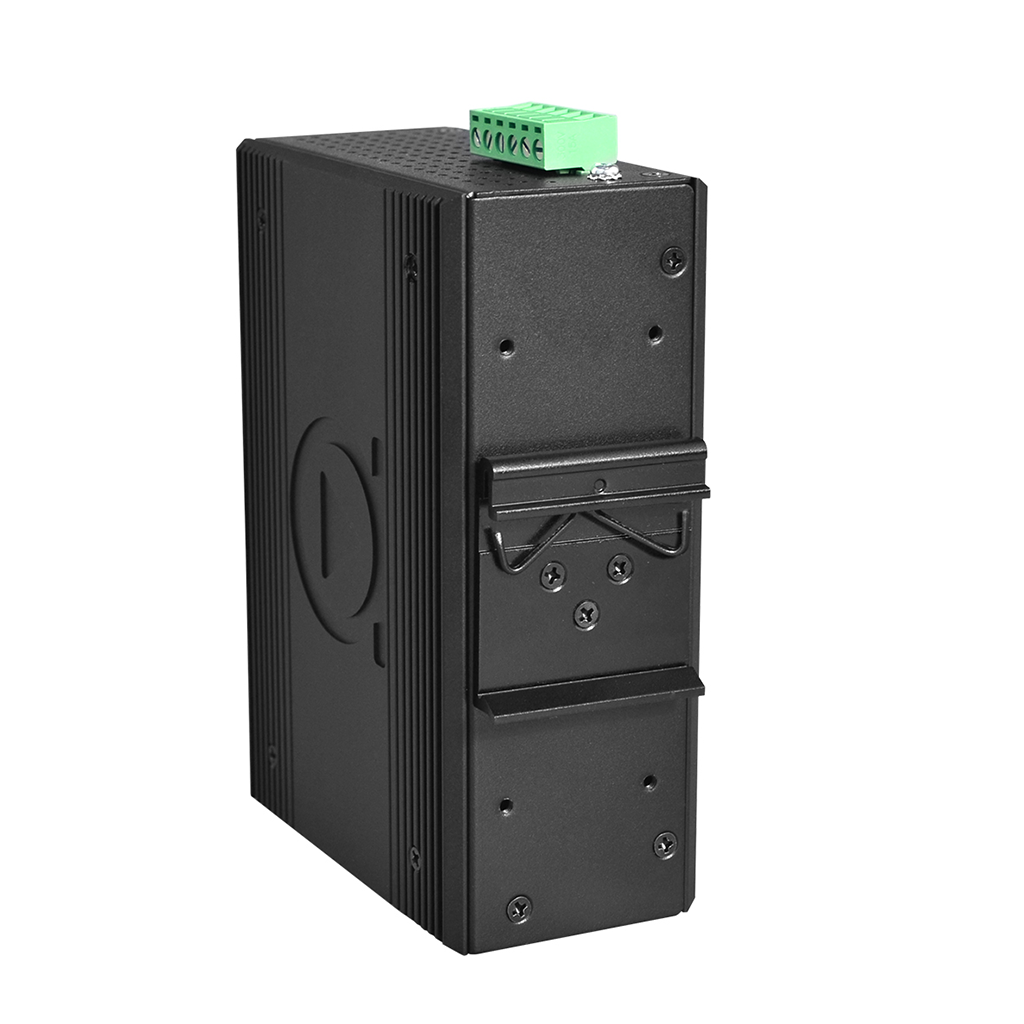

- Housing / Mounting : Metal IP30 rated / DIN-Rail or Wall Mounting
- Operating Temperature : STD: -10° to 70° C
- 5-Year Warranty
- Protocols : IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
- EMI : FCC Class A
- EMS : IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4
- Shock/Vibration/Free Fall : IEC60068-2-27 / 2-6 / 2-32
- Green : RoHS Compliant
- Warranty : 5 years
- VLAN : 0-4095
- Ethernet Port : 8*10/100 + 2*10/100/1000 BaseTx auto negotiation, Full/Half duplex, and auto MDI/MDI-X connection
- Standards : IEEE 802.3 / 802.3u / 802.3x / 802.3ad, IEEE 802.1d / 802.1w / 802.1s / 802.1Q / 802.1X / 802.1p ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
- Protection : Power line EFT: 2,000VDC; Ethernet ESD: 6,000VDC Overload Current, Power Reverse Polarity, CPU Watchdog

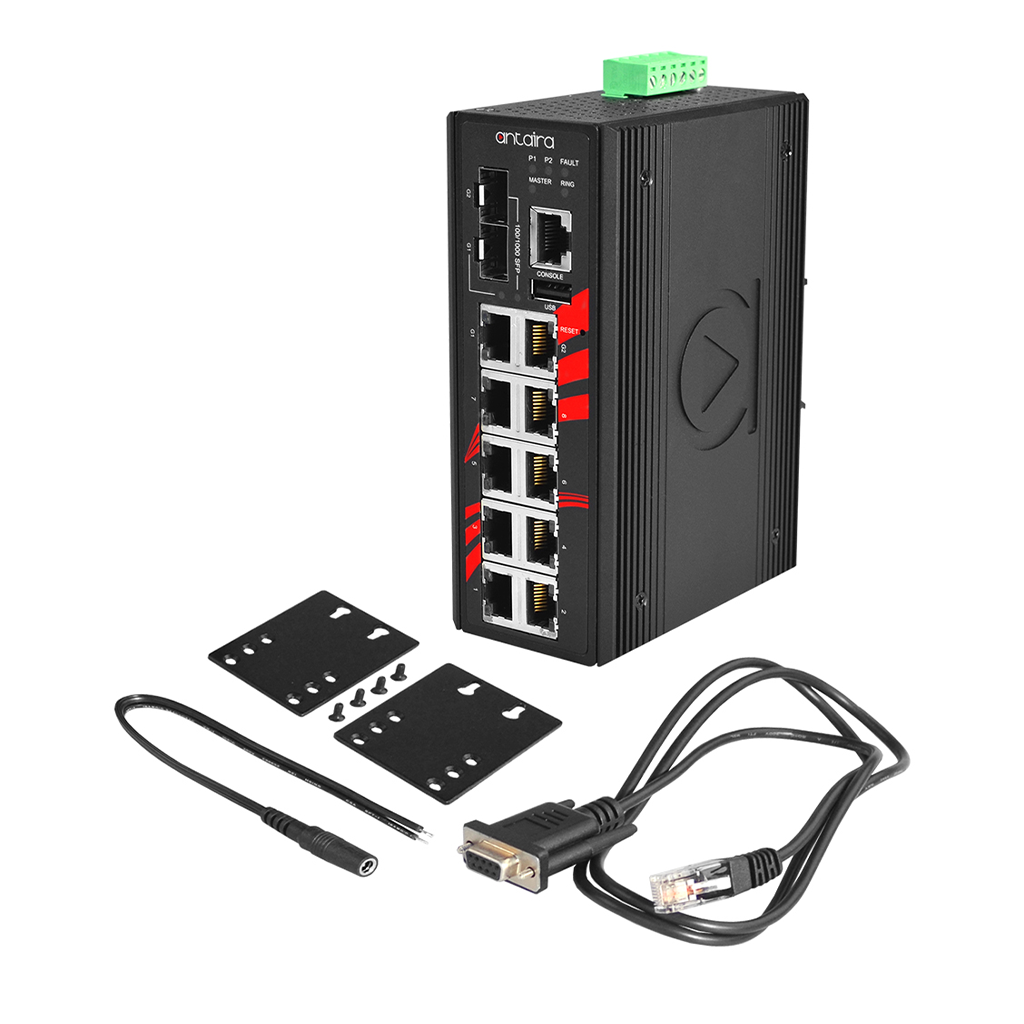

INCLUDED
- 1 - LMX-1202M-SFP
- 1-DC cable –18 AWG & DC jack 5.5x2.1mm
- 1-RJ45 to DB9 Serial Console cable
- 2-Wall mounting brackets and screws
LMX-1202M-SFP

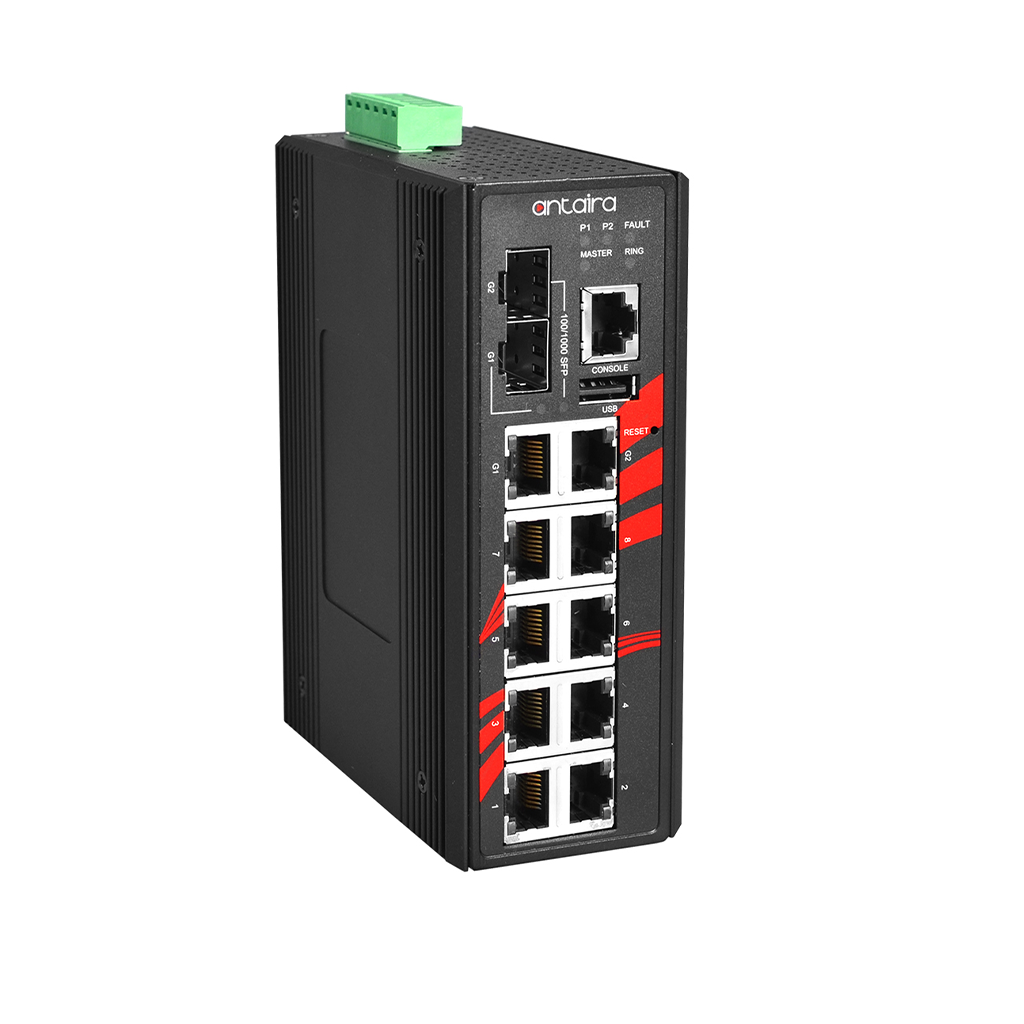

Antaira’s LMX-1202M-SFP is a 12-port industrial gigabit Light Layer 3 managed Ethernet switch that is embedded with 8*10/100Tx Fast Ethernet ports and 2*10/100/1000Tx RJ45 + 2*100/1000 dual rate SFP slots. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. The RJ45 ports provide flexibility to users for either 10/100 or 1000Tx Ethernet connections. The plug in SFP Modules provide 100MB or Gigabit Fiber connection where distance, EMI or security is a concern. The LMX-1202M-SFP has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, or any other outdoor or harsh environment.
