LEADING EDGE MULTI-LINE CMOS
LEADING EDGE MULTI-LINE CMOS
Model :Linea ML Mono 16k 300 kHz

Featured Information

Part number :
ML-HM-16k30H-00-R
Resolution :
16384x4
Spectrum :
Mono
Product thumb

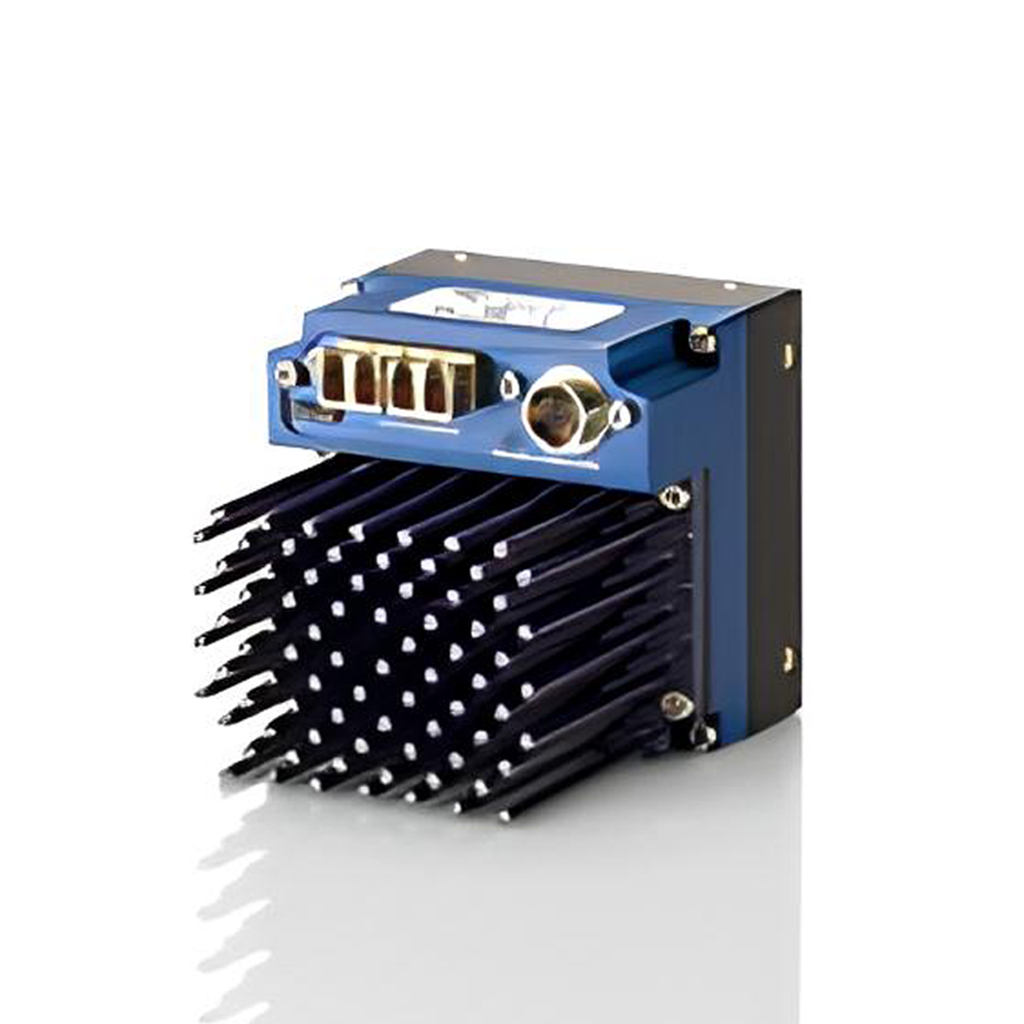

Linea ML Mono 16k 300 kHz
LEADING EDGE MULTI-LINE CMOS

Features :

  • Part number :   ML-HM-16k30H-00-R
  • Resolution :  16384x4
  • Spectrum :  Mono
  • Interface :  Camera Link HS
  • Pixel Size :   5 µm
  • Max Line Rate :  300 kHz
  • Total Pixels :  ~ 16 k
  • Bit Depth :  8 bit, 12 bit
  • Operating Temperature :  0—65°C
  • Supported Lens Options :  M90x1

  • Dimensions (W x H x L) :  97x140.5x78.6 mm

Product thumb
Linea ML Mono 16k 300 kHz
LEADING EDGE MULTI-LINE CMOS

The Linea ML brings leading edge CMOS technology that is faster than ever, with affordable multiline architecture that enables the newest, most powerful inspection techniques including HDR, color and multispectral analysis, and multi-field imaging (single-pass bright/darkfield). With a native fiber optic interface for easy, low-cost long cabling, the Linea ML opens new horizons in inspection.
