LRAD 500X-RE

LRAD 500X-RE

Featured Information

LRAD 500X-RE :

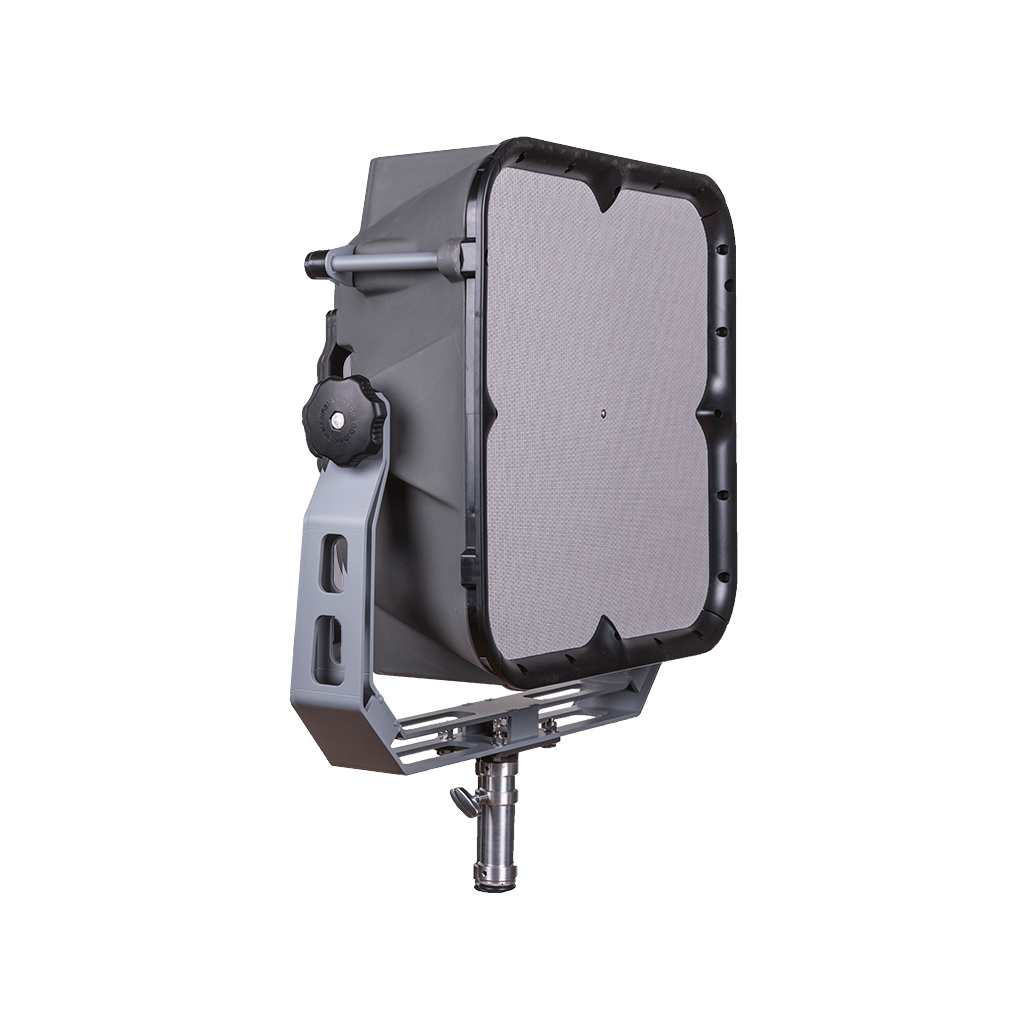

LRAD 500X-RE remote electronics, long range communication system with dash mounted MP3 control module

LRAD 500X-RE

PRODUCT INFORMATION

LRAD 500X-RE : LRAD 500X-RE remote electronics, long range communication system with dash mounted MP3 control module

OPTIONAL ACCESSORIES

Wireless Kit : Wireless operation of LRAD systems over ranges up to 300 meters, 35 mm phone jack connects to a standard MP3 audio device (UHF, US only.) Lightweight hypercardioid headset microphone is included.
HD Action Camera : During LRAD operation, record high definition, date/time stamped video and audio with this compact, rugged digital camera
Maxabeam Kit : 12 million candlepower in a lightweight, mounted searchlight, illuminates targets up to 3,500 meters away
Power Supply Module : External AC to DC power supply, 100-220 VAC to 28 VDC
Power Pack : Portable power pack with internal battery, charger, 24 VDC, 21 AH
Hitch Mount : Vehicle mount - attaches to standard trailer hitch receiver (2 in/5.08 cm)
GPK Mount : Mounts to Objective Gunner Protection Kit (OGPK) for vehicle mounted operations
Shiprail Mount : Stainless stail rail mount
Hard Case : Watertight, dust proof, rugged enclosure for storage and transport
Medium-duty Tripod : Rugged lightweight tripod with only optional hard transport and storage case

ENVIRONMENTAL PERFORMANCE

Hot Operating Temperature : MIL-STD-810G, Method 501.5, Procedure II, Design Type Hot, 60°C
Cold Operating Temperature : MIL-STD-810G, Method 502.5, Procedure II, Design Type Basic Cold, -33°C
Hot Storage Temperature : MIL-STD-810G, Method 501.5, Procedure I, 70°C
Cold Storage Temperature : MIL-STD-810G, Method 502.5, Procedure I, -40°C
Operating Humidity : MIL-STD-810G, Method 507.5, Procedure II - Aggravated Cycle
Rain : MIL-STD-810G, Method 506.5, Procedure I, Blowing Rain
Salt Fog : MIL-STD-810G, Method 509.5
Vibration : MIL-STD-810G, Method 514.6, Wheeled Vehicles

ELECTRICAL REQUIREMENTS

Power Consumption : Typical power consumption is 265 Watts (with tone); Normal power consumption is 60 Watts (with voice content)
Power Input : 12 - 28 VDC

ELECTROMAGNETIC COMPATIBILITY (EMC)

FCC Part 15 class A radiated emissions, CE

INCLUDED ACCESSORIES

Control Module : Remote MP3 control module with 2 to 16 GB onboard storage memory
Record on the Fly Mic : Microphone with record and playback feature for immediate playback
MP3 Auxiliary Cable : Allows connection to any audio device witha headphone jack
USB Cable : USB cable for downloading files to the MP3 player
Normalizer Software : Audio normalizer software for creating customized audio recordings on a PC
Soft Cover : Protective soft cover

ACOUSTIC PERFORMANCE

Maximum Peak Output : 154 dB SPL @ 1 meter, C-weighted
Maximum Continuous Output : 149 dB SPL @ 1 meter, A-weighted
Sound Projection : +/- 15° @ 1kHz/-3dB
Communication Ranges : Maximum range up to 2,000 meters in ideal conditions. Operational range up to 650 meters over 88 dB of background noise. Ranges based on continuous output.

MECHANICALS

Dimensions (WxHxD) : 25 x 25 x 12 inch (63.5 x 63.5 x 30.5 cm)
Weight : 44 lbs (19.96 kg) without accessories
Construction : Molded cross-linked polyethylene, 6061 aluminum, optional stainless steel connectors

SAFETY

MIL-STD-1474D : MIL-STD-1474D standard establishes acoustical noise limits and prescribes testing requirements and measurement techniques for determining conformance to the noise limits specified therein.

LRAD 500X-RE

Datasheet

The LRAD 500X-RE is compact, lightweight, and designed for applications ranging from fixed security installations to small/mid-sized vehicles and vessels. It can be easily transported to provide security and defense personnel a highly effective communication, hailing, and warning capability.
