LNX-0500-M12-67-T

5-Port M12 Industrial IP67 Waterproof Ethernet Switch, w/5* 10/100Tx with M12 co...
LNX-0500-M12-67-T
5-Port M12 Industrial IP67 Waterproof Ethernet Switch, w/5* 10/100Tx with M12 connector, 12-48VDC Power Input; EOT: -40°

Featured Information

Ambient Relative Humidity :
5% to 95%, (non-condensing)
Certifications :
FCC, CE, UL 61010-1 (Pending), UL 61010-2-201 (Pending)
Dimensions :
37.13 x 215.73 x 32.8 mm (W x H x D)
Product thumb
LNX-0500-M12-67-T
5-Port M12 Industrial IP67 Waterproof Ethernet Switch, w/5* 10/100Tx with M12 connector, 12-48VDC Power Input; EOT: -40°

SPESIFICATIONS

  • Ambient Relative Humidity :  5% to 95%, (non-condensing)
  • Certifications :  FCC, CE, UL 61010-1 (Pending), UL 61010-2-201 (Pending)
  • Dimensions :  37.13 x 215.73 x 32.8 mm (W x H x D)
  • EMI :  FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A
  • EMS :  CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
  • Ethernet Port :  5*10/100T(X) M12, 4-pin D-coded, Female, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
  • Flow Control :  IEEE 802.3x back pressure flow control
  • Free Fall / Shock / Vibration :  IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
  • Green :  RoHS Compliant
  • Housing :  Plastic, IP67 protection

  • Protocols :  CSMA/CD
  • Reverse Polarity Protection :  Present
  • Standards :  IEEE 802.3 10Base-T Ethernet IEEE 802.3 100Base-TX Fast Ethernet
  • Storage Temperature :  -40°C to 85°C
  • Switching Architecture :  Back-Plane: Non-Blocking Switching Fabric
  • Transfer Rate :  14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port
  • Warranty :  5 Years
  • Weight :  Unit: 0.749 lbs. Shipping: 1.322 lbs.

  • LED Indicators :  Power Ethernet Ports: Link/Act
  • MAC Table Size :  1K
  • Memory Buffer :  448kbits
  • Mounting :  DIN-Rail, Wall Mounting
  • Operating Temperature :  -40°C to 75°C
  • Overload Current Protection :  Present
  • Power Connection :  1*M12, 5-pin A-coded, Male
  • Power Consumption :  500m Watts
  • Power Input :  12 to 48VDC, Redundant Inputs
  • Processing Type :  Store and Forward

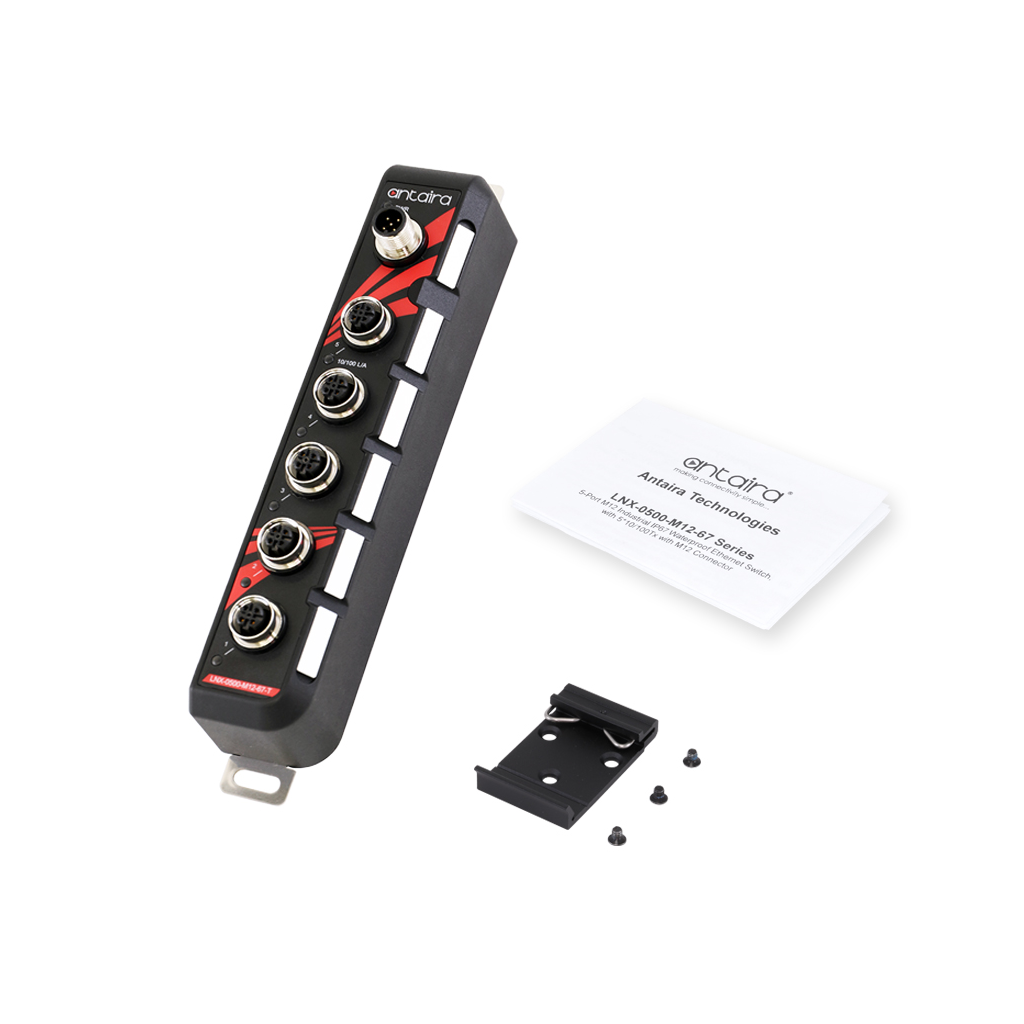

INCLUDED

  • 1 - DIN-Rail kit with screws
  • 1 - LNX-0500-M12-67-T
  • 1 - Quick Installation Guide
  • 6 - M12 protective caps
  • 6 - Port labels

Product thumb
LNX-0500-M12-67-T
5-Port M12 Industrial IP67 Waterproof Ethernet Switch, w/5* 10/100Tx with M12 connector, 12-48VDC Power Input; EOT: -40°

Antaira Technologies’ LNX-0500-M12-67-T is a 5-port 10/100Tx M12 IP67 industrial switch that meets the high-reliability requirements demanded by industrial applications. The LNX-0500-M12-67-T features a wide operating temperature of -10° to 70°C in the standard model and -40° to 75°C in the extended temperature model which allows this device to be used in various industrial environments. Its M12 connectors ensure a tight, robust connection and guarantees reliable operation in applications that are subject to high vibration and shock in environments containing dust, liquid, or laden with gas.
