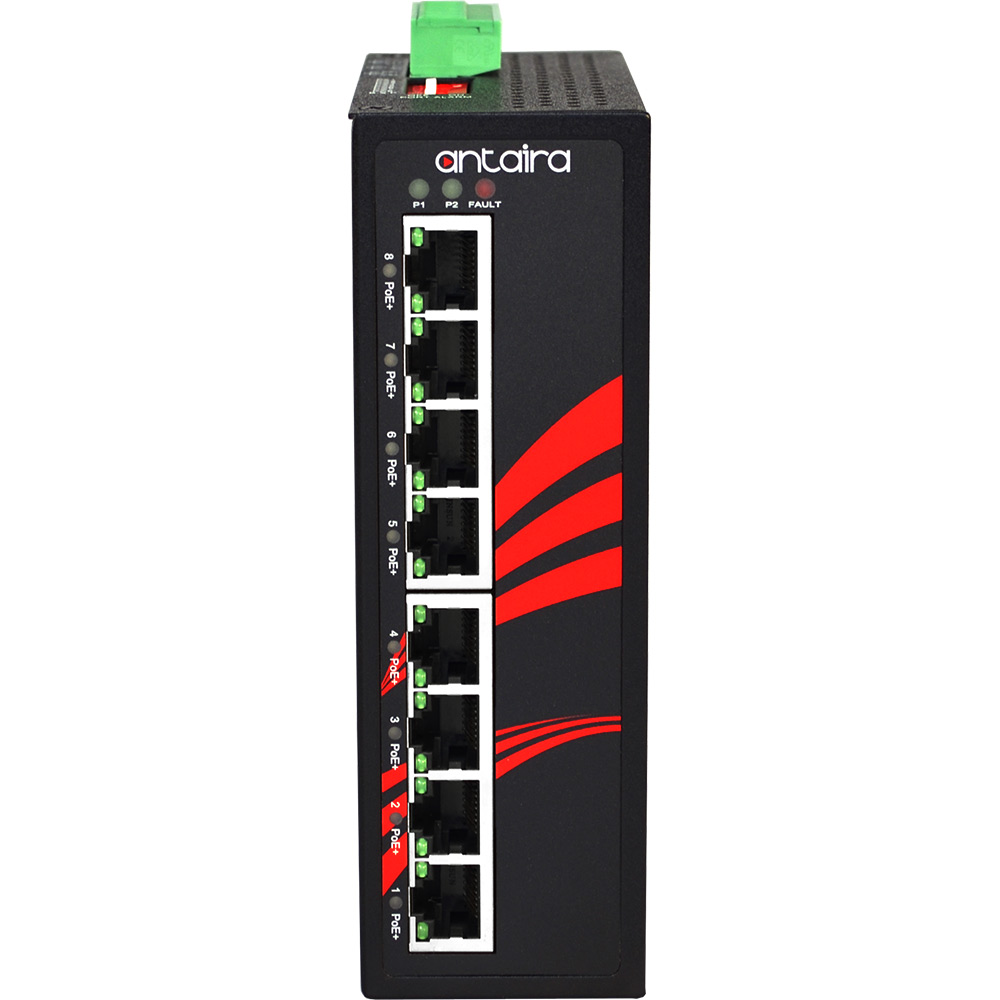

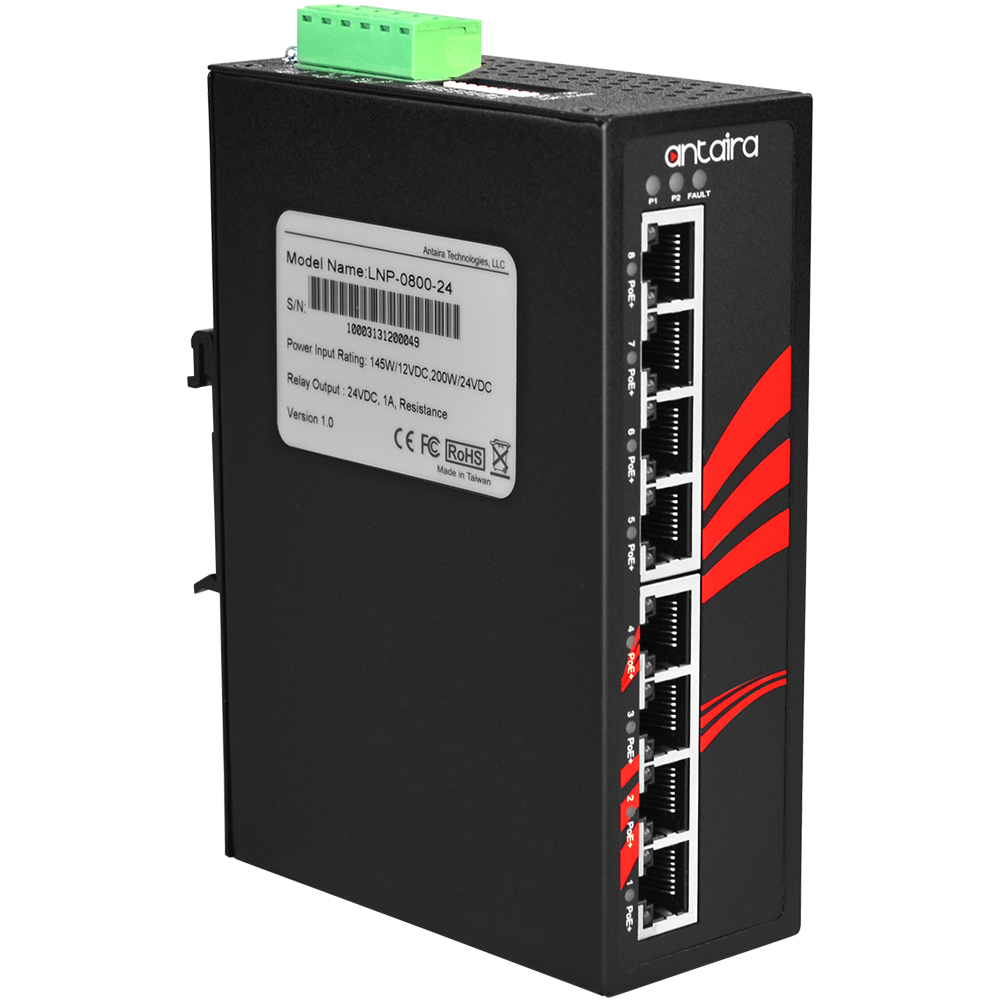

LNP-0800-24

8-Port Industrial PoE+ Unmanaged Ethernet Switch, w/8*10/100Tx (30W/Port), 12VDC-36VDC
LNP-0800-24
8-Port Industrial PoE+ Unmanaged Ethernet Switch, w/8*10/100Tx (30W/Port), 12VDC-36VDC

Featured Information

Ambient Relative Humidity :
5 to 95%, (non-condensing)
Certifications :
FCC, CE, UL/cUL 508, ISA 12.12.01, Class 1 Div 2
Connection :
1 removable 4-contact terminal block
Product thumb
LNP-0800-24
8-Port Industrial PoE+ Unmanaged Ethernet Switch, w/8*10/100Tx (30W/Port), 12VDC-36VDC

SPECIFICATIONS

  • Ambient Relative Humidity :  5 to 95%, (non-condensing)
  • Certifications :  FCC, CE, UL/cUL 508, ISA 12.12.01, Class 1 Div 2
  • Connection :  1 removable 4-contact terminal block
  • Dimensions :  46 x 142 x 99 mm (1.81 x 5.59 x 3.90 in.)
  • EMI :  FCC Class A
  • EMS :  EN6100-4-2; EN6100-4-3; EN6100-4-4; EN6100-4-5; EN6100-4-6; EN6100-4-8 EN6100-6-2; EN6100-6-4
  • Flow Control :  IEEE 802.3x flow control, back pressure flow control
  • Free Fall :  IEC60068-2-32
  • Green :  RoHS Compliant
  • Housing :  Metal, IP30 protection

  • RJ45 Ports :  10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection 8*10/100Tx (PoE+)
  • Shock :  EC60068-2-27
  • Standards :  IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3x Flow Control and Back-Pressure IEEE 802.3at Power over Ethernet
  • Storage Temperature :  -40°C ~ 85°C (-40°F ~ 185°F)
  • Switching Architecture :  Back-Plane (Switching Fabric): 1.0Gbps Packet Throughput Ability (Full-Duplex): 1.488Mpps @ 64bytes
  • Technology Protocol :  CSMA/CD
  • Transfer Rate :  14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port
  • Vibration :  IEC60068-2-6
  • Warranty :  5 Years
  • Weight :  Unit Weight: 1.68 lbs. Shipping Weight: 2.0 lbs

  • Input Voltage :  12~36VDC, Redundant Input
  • MAC Table Size :  2K

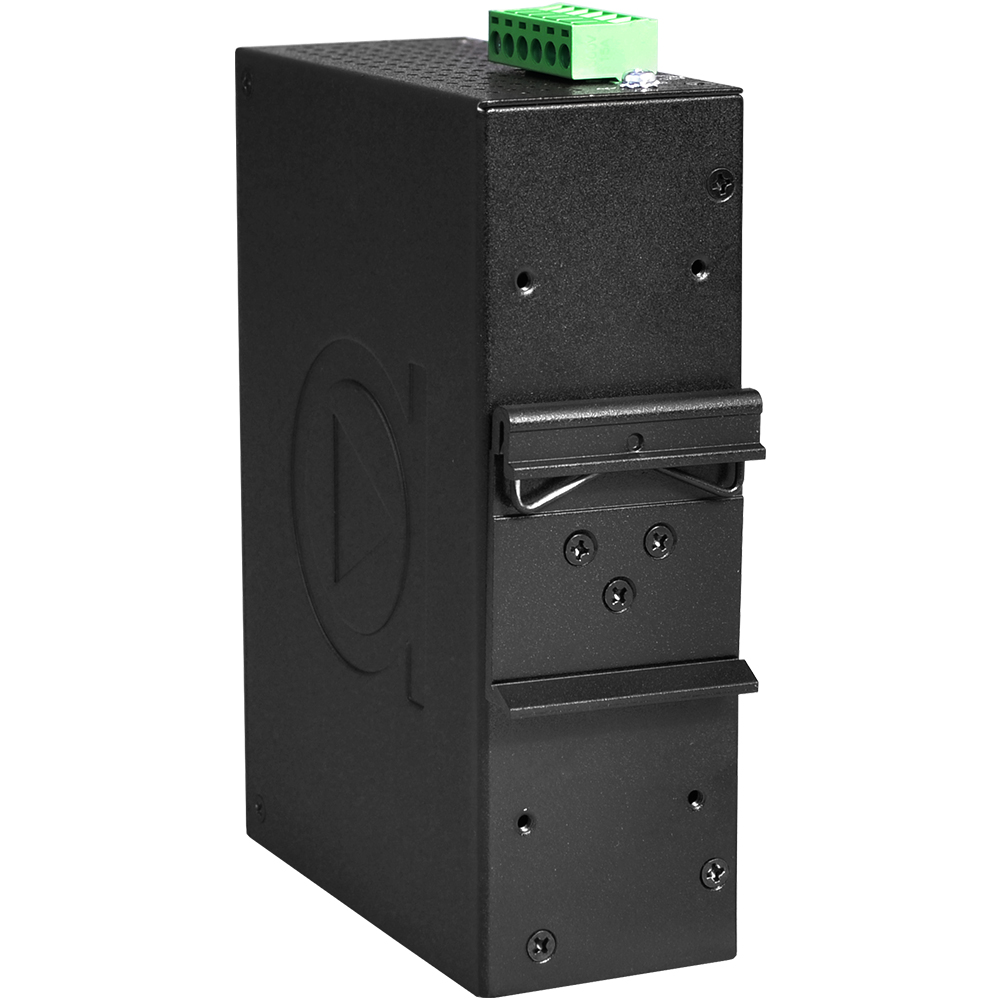

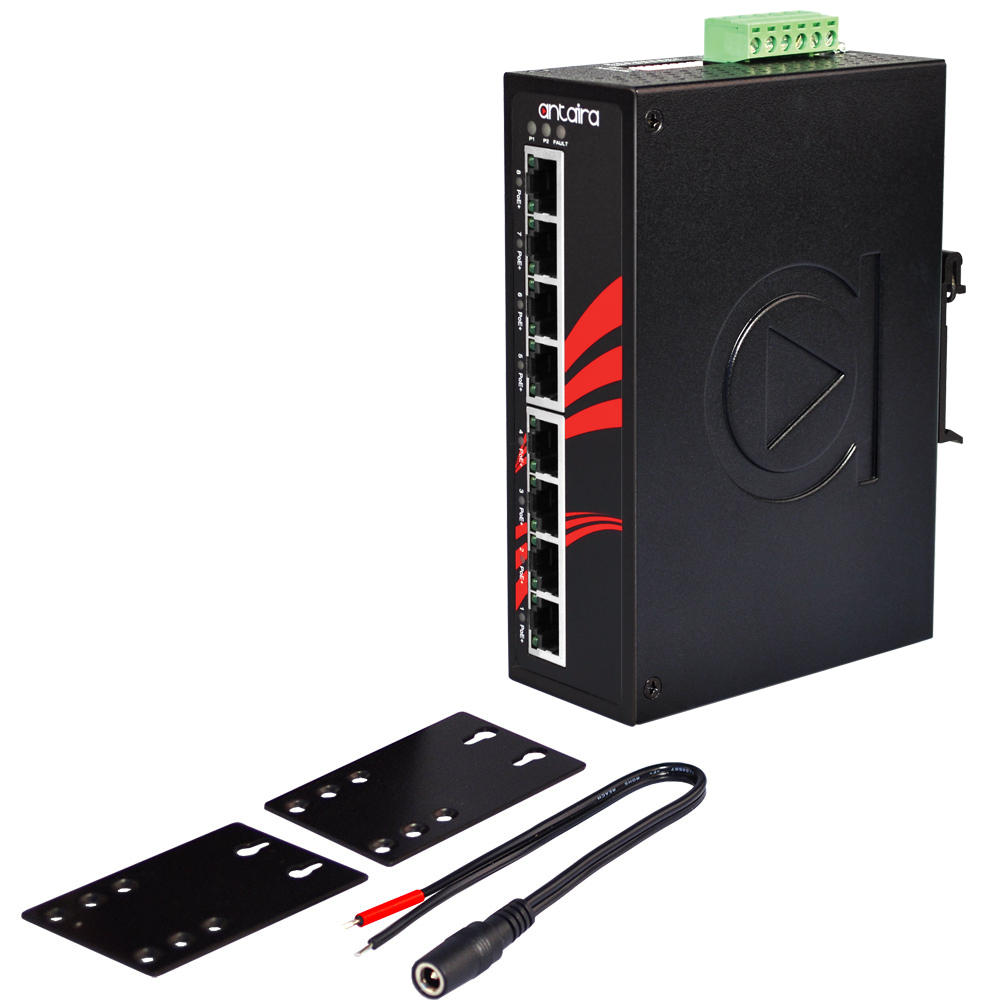

  • Mounting :  DIN-Rail mounting, wall mounting (optional)
  • Operating Temperature :  STD: -10° to 70° C (14° to 158° F)
  • Overload Current Protection :  Slow-Blown Fuse
  • PoE Pin Out :  V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI-X Alternative A)
  • PoE Power Output :  30W @ 48VDC (per PoE port)
  • Power Consumption :  145 Watts @ 12VDC; 200 Watts @ 24VDC
  • Processing Type :  Store and Forward
  • Reverse Polarity Protection :  Yes

Product thumb
LNP-0800-24
8-Port Industrial PoE+ Unmanaged Ethernet Switch, w/8*10/100Tx (30W/Port), 12VDC-36VDC

Antaira’s LNP-0800 series switch is a smart 8-port Industrial Unmanaged Ethernet Switch that supports IEEE-802.3at (Power-over-Ethernet Plus) on ports 1 to 8. This switch is classified as power sourcing equipment (PSE), and when used in this way, the LNP-0800 series switch enables centralization of the power supply and provides up to 30 watts of power per port. The LNP-0800 series switch can be used to power IEEE 802.3af or 802.3at compliant power devices (PD), eliminating the need for additional wiring, and supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, and MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network. In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.
