CMOS LINE SCAN BUILT FOR MAXIMUM THROUGHPUT
CMOS LINE SCAN BUILT FOR MAXIMUM THROUGHPUT
Model :Piranha4 Renkli 8k, 50 kHz
Featured Information
Part number:
P4-CC-08k050
Resolution :
8192x2
Spectrum :
Color
Piranha4 Renkli 8k, 50 kHz
CMOS LINE SCAN BUILT FOR MAXIMUM THROUGHPUT
Features :
- Part number: P4-CC-08k050
- Resolution : 8192x2
- Spectrum : Color
- Interface : Camera Link
- Pixel Size : 7,04µm
- Max Line Rate : 50 kHz
- Total Pixels : ~ 8 k
- Bit Depth : 8 bit, 10 bit
- Operating Temperature : 0—65°C
- Responsivity : 8(R), 8(G), 5(B) DN/nJ/cm2 @ 1x gain, 8-bit
- Dynamic Range : 65 dB
- Dimensions (W x H x L) : 80x80x57 mm
Piranha4 Renkli 8k, 50 kHz
CMOS LINE SCAN BUILT FOR MAXIMUM THROUGHPUT

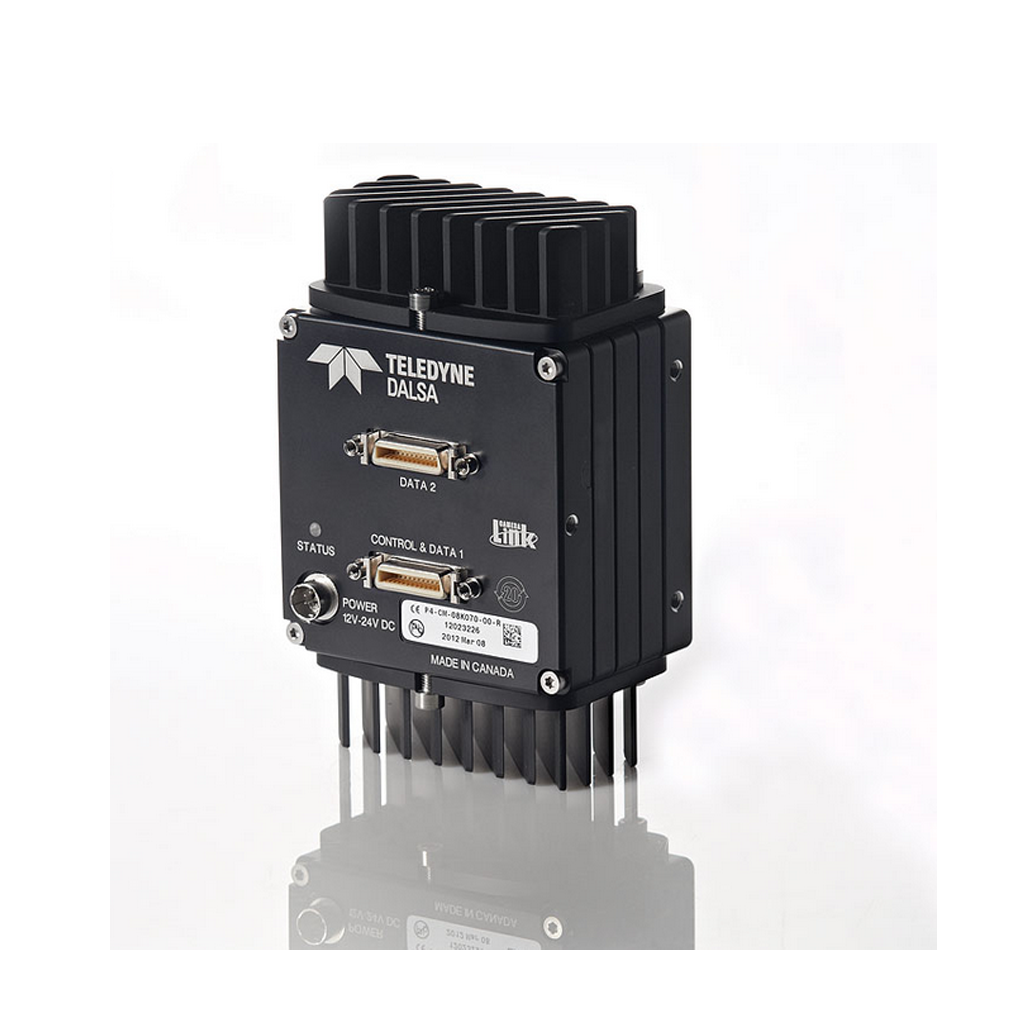

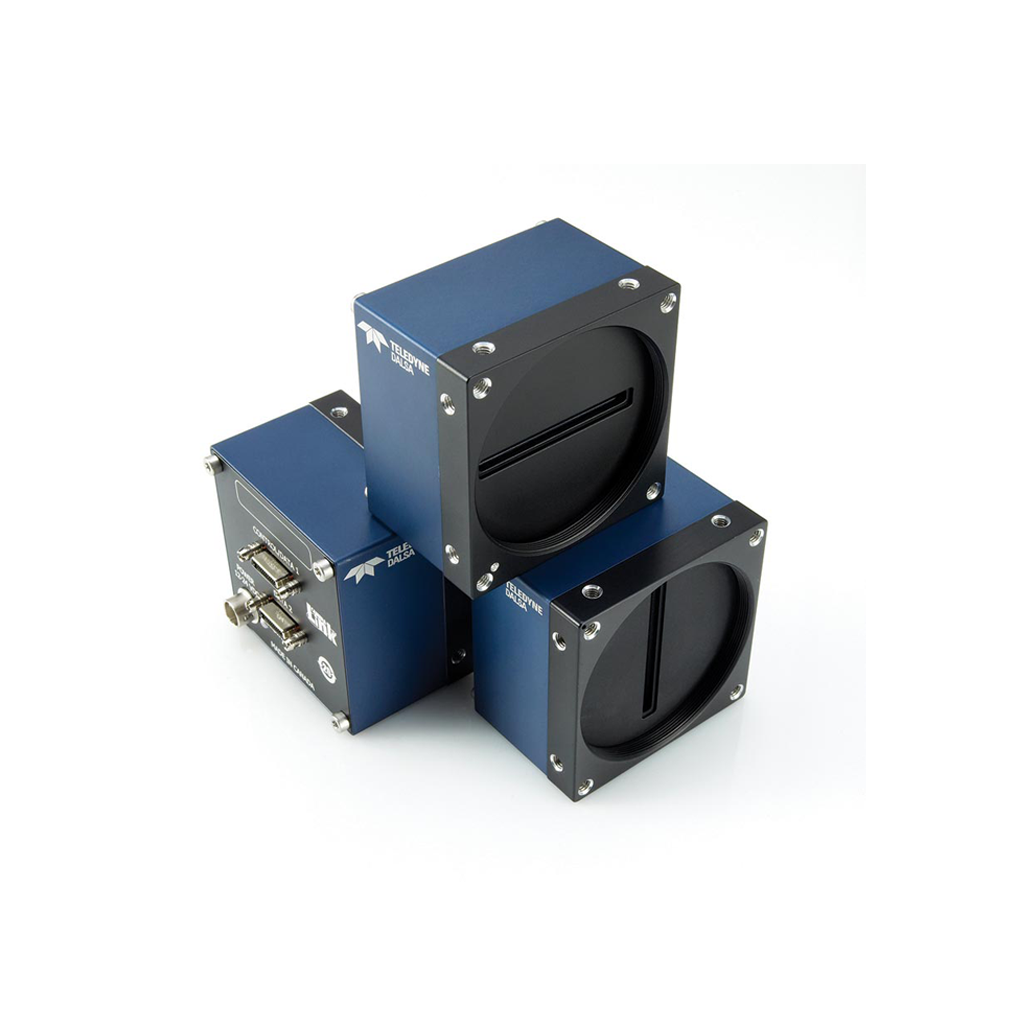

The Piranha4 cameras offer advanced features such as sub-pixel spatial correction, areas of interest (up to 4 at a time) to reduce data processing and simplify cabling, as well as dual-line area mode to double line rate, HDR mode, shading and lens correction. The Piranha4 is built for the real world with features to ease system integration. The advanced GenICam compliant user interface makes it easy to set up and control camera parameters such as exposure control, FFC, white balance, gain, test patterns, diagnostics and more.
