LNX-500A

SPESIFICATIONS

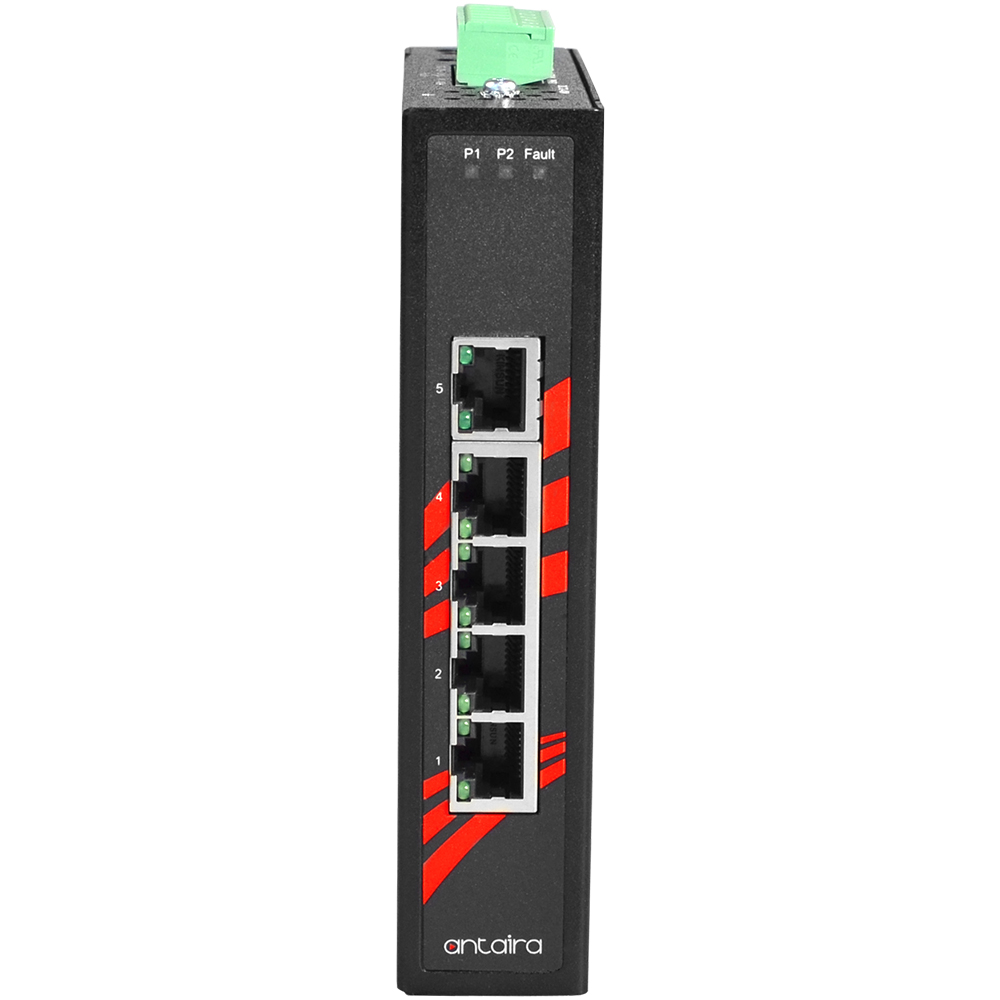

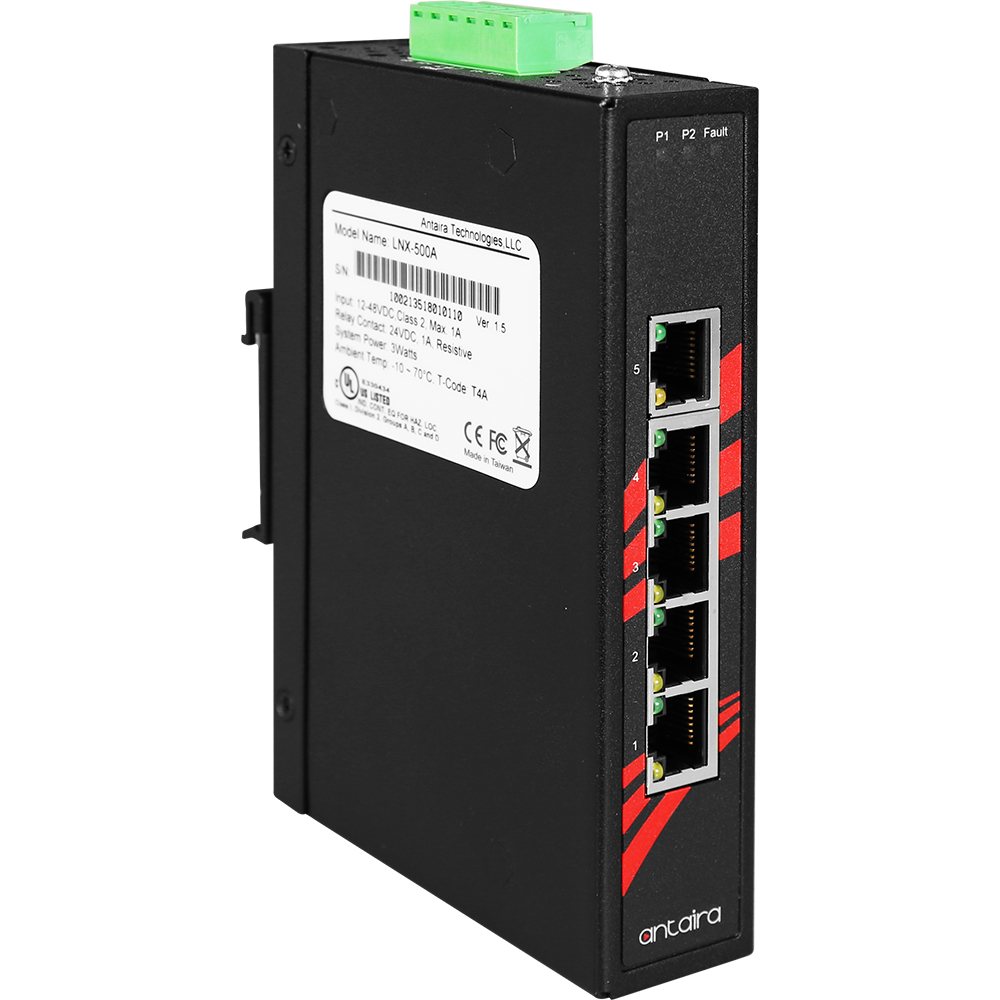

• Antaira Technologies LNX-500A industrial unmanaged Ethernet switch is a leading low price solution for all automation or industrial networking projects. This Fast Ethernet supporting 5 port switch supports 10/100 Mbps Auto-Negotiation and has a wide DC power input design (12 – 48VDC) to allow for all types of applications such as on-vehicle or panel designs. Each port on the LNX-500A has two LED lights to easily indicate link status and transmission speed. This ruggedized unmanaged Ethernet switch also supports Auto MDI/MDI-X function and is also UL Class 1, Division 2 certified for oil and gas applications. The LNX-500A is packaged in a slim and compact size while being secured in a rugged IP-30 case that is DIN-RAIL ready for industrial applications.
• Store and Forward Switching Architecture
• Flow Control on Full-Duplex
• Back Pressure on Half-Duplex
• Supports Auto MDI/MDI-X Function
• Wide-Ranging Redundant Power Design
• UL Class I, Division 2 Certified
• DIN-Rail and Wall Mount Design
• Slim IP-30 Case Design
