LMX-1002G-SFP
Featured Information
LMX-1002G-SFP
FEATURES
- Supports 8*10/100/1000Tx Fast Ethernet Ports and 2*100/1000 SFP Slots
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Configuration: Web Console, Telnet, CLI Command
- Supports IGMP v1/v2, up to 256 Groups
- Supports QoS (IEEE802.1p) and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c
- System Warning Setting for Automatic Warning through E-Mail
- Redundant Power Input Design – 12~48VDC
- Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support
- Standard Operating Temperature: -10~70C
SPESIFICATIONS
- Protocols : IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
- Configuration : Web Console, Telnet, CLI
- VLAN : 1 ~ 4094
- IGMP : Up to 256 Groups
- Ethernet Port : 8*10/100/1000BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Fiber Port : 2* 100/1000 SFP Slots
- Wavelength : Refer to SFP Modules
- Serial Console : 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
- Configuration Back Up : 1*USB 2.0
- Protection : Power line EFT: 2,000VDC; Ethernet ESD: 6,000VDC Overload Current, Power Reverse Polarity, CPU Watchdog

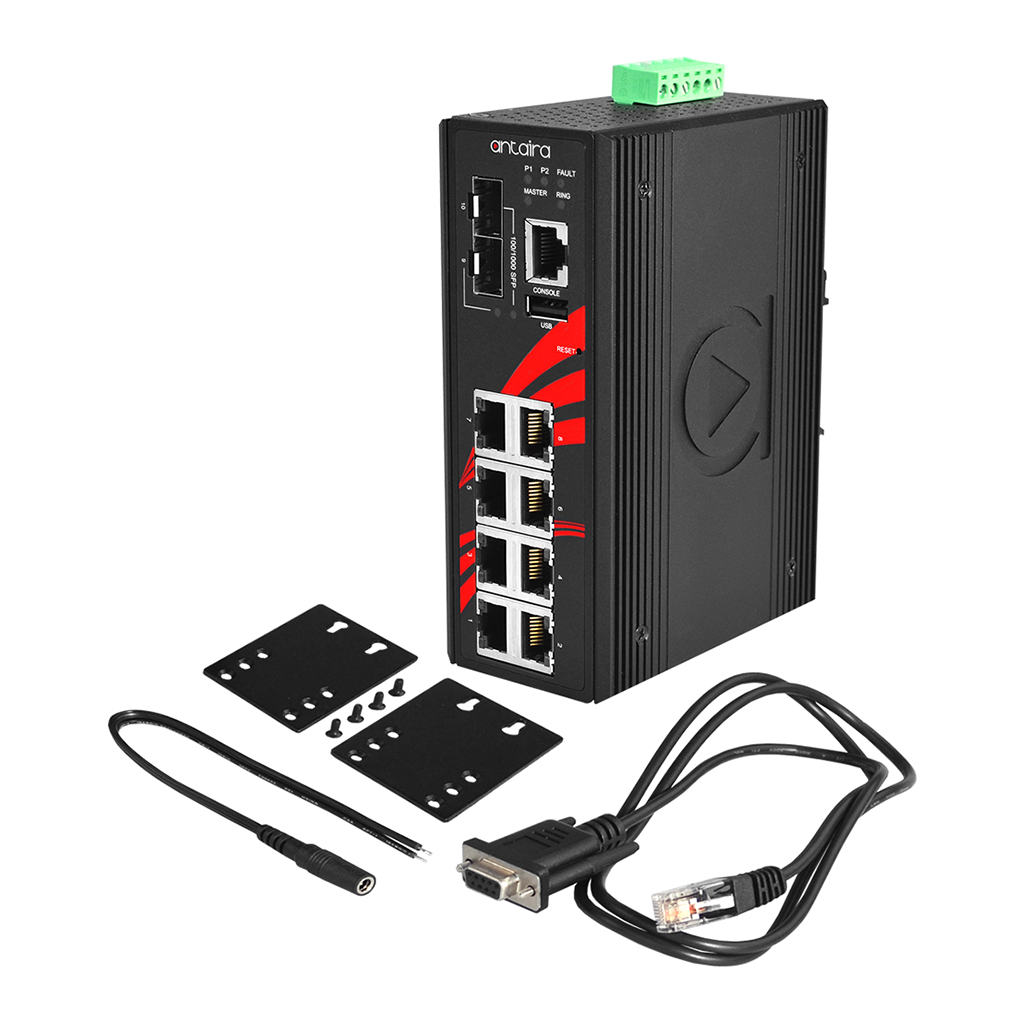

INCLUDING
- 1– LMX-1002G-SFP
- 1-DC cable –18 AWG & DC jack 5.5x2.1mm
- 2-Wall mounting brackets and screws
- 1-RJ45 to DB9 Serial Console cable
STANDARDS
- IEEE 802.3 / 802.3u / 802.3x / 802.3ad
- IEEE 802.1d / 802.1w / 802.1s / 802.1Q / 802.1X / 802.1p
- ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
- Housing / Mounting : Metal IP30 rated / DIN-Rail & Wall-Mount (optional)
- Dimensions : 54 x 142 x 99 mm
- Weight : Unit: 2.2 lbs.; Shipping: 3.0 lbs.
- Input Voltage & Connection : 12~48VDC Redundant Input / 1 removable 6-contact terminal block
- Power Consumption : 15 Watts
- EMI : FCC Class A
- EMS : IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4
- Shock/Vibration/Free Fall : IEC60068-2-27 / 2-6 / 2-32
- Green : RoHS Compliant
- Certifications : FCC, CE, UL 61010-1, 61010-2-201, NEMA TS2, Class 1 Div 2, ATEX
LMX-1002G-SFP
Antaira’s LMX-1002G-SFP is a 10-port industrial gigabit Light Layer 3 managed Ethernet switch that is embedded with eight gigabit Ethernet ports and two dual rate (100/1000) SFP slots for fiber connection. This series is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. It supports Jumbo Frame and wide bandwidth for data transmission and has sufficient port counts for edge level connectivity solutions. The LMX-1002G-SFP has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, or any other outdoor or harsh environment.
