FLIR Elara FR-345-EST
Featured Information
FLIR Elara FR-345-EST
GENERAL
- Detector Type : Long-Life, Uncooled VOx Microbolometer
- Input Voltage : 12-30 VDC (±10%), 24 VAC (21-28 VAC), 802.3at (PoE+)
- Model : 345
- Power Consumption : 17 W
- Visible Sensor Type : 1920 x 1080
ENVIRONMENTAL
- Humidity : 0-95% relative
- IP Rating (dust & water ingress) : IP54
- Operating Temperature Range : 15 to 45°C
- Storage Temperature Range : -40 to 70°C
- Vandal Resistance : IK10
SYSTEM INTEGRATION
- Digital I/O : Input: one dry alarm contact Output: one photo relay contact 1A max at 24 VAC/30 VDC
- Ethernet : 10/100 Mbps
- Network APIs : FLIR SDK FLIR CGI ONVIF Profile S
- Streaming Resolution : Thermal: upscaled to VGA (640 × 480) Visible: 1080p (1920 × 1080), 720p (1280 × 720), VGA (640 × 480)
VIDEO & RECORDING
- Video Compression : Two independent channels of H.264 or M-JPEG for visible One channel of H.264 or M-JPEG for thermal
CYBER SECURITY
- Security : IEEE 802.1x, TLS Authentication - control & streaming, Digest authentication, HTTPS encryption, Encrypted FW upload, Access control via firewall
MEASUREMENT & ANALYSIS
- Accuracy [Drift] in Screening Mode : ±0.5°C (±0.9°F)
- Object Temperature Range : 15 to 45°C (59 to 113°F); camera provides contrast from -20 to 120°C (-4 to 248°F) but will not provide temperature information
- Screening Mode Subject Distance : 1m ± 0.2m
THERMAL CAMERA
- Array Format (NTSC) : 320 x 256
- Pixel Pitch : 17 µm
- Thermal f number : 1.5
- Thermal Frame Rate : 20Hz
VISIBLE CAMERA
- Field of view (FOV) : 45° × 34°
- Focal Length : 4 mm
- Lens Field of View : HFOV = 75° VFOV = 44°
- Sensitivity : 0.05 Lux (at f1.6 AGC ON, 30FPS)
- Visible f Number : 1.6

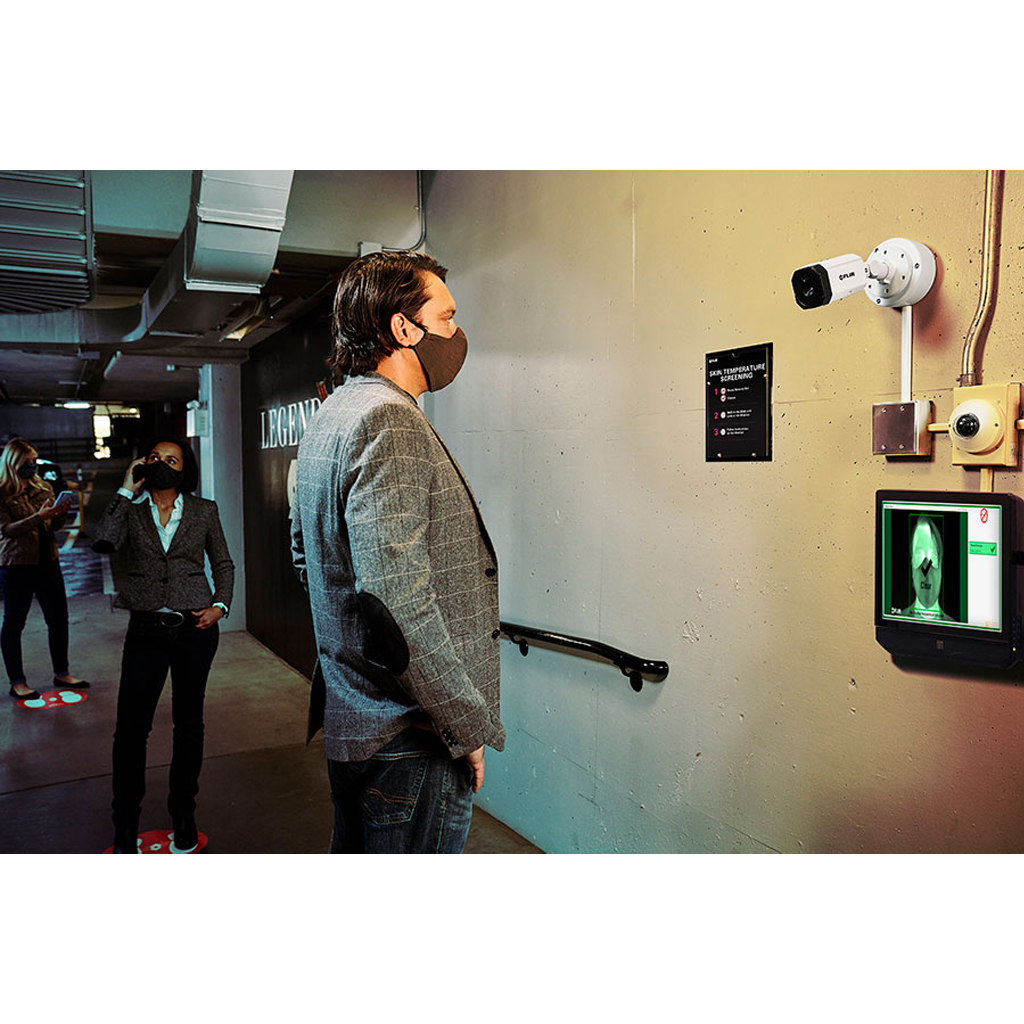

The FLIR Elara FR-345-EST is an affordable, fixed-mount radiometric camera for accurately measuring skin temperature at medium- to high-throughput entry control points. Equipped with on-edge, intelligent face detection, Elara FR-345-EST issues on-screen prompts to individuals when they need to remove glasses, while also guiding them to the correct position for best measurement. The non-contact camera automatically locates and measures the inner canthus (corner of the eye) within one second and provides an instant pass/fail graphic to the individual. Integration with VMS systems further streamlines workflow and decision-making for facilities, while helping security personnel maintain a safe distance from potential health risks. Elara FR-345-EST does not require or save personally identifiable information (PII) for skin temperature screening.
