True High Performance
True High Performance
Model :Falcon4-CLHS M2240
Featured Information
Part number :
FA-HM10-M2245
Resolution :
2240 x 1248
Spectrum :
Mono
Falcon4-CLHS M2240
True High Performance
Features :
- Part number : FA-HM10-M2245
- Resolution : 2240 x 1248
- Spectrum : Mono
- Interface : Camera Link HS
- Pixel Size : 12 µm
- Max Frame Rate : 1200 fps
- Total Pixels : ~ 2,8 MP
- Interface Speed : 3,3 Gb/sn
- Bit Depth : 8 bit, 10 bit
- Operating Temperature : -20—50 °C
- Supported Lens Options : M42 x 1mm
- Shutter Type : Global Shutter
- Power Requirement : 10 V to 30 V DC
- Synchronisation : Software trigger, free-run, & hardware trigger
- Exposure Control : Internal - Programmable via the camera API External – Based on Trigger Width
- General Purpose I/O : 2 input / 3 Output, Opto-coupled
- Dimensions (W x H x L) : 59 x 59 x 70 mm
- Mass : 317 g

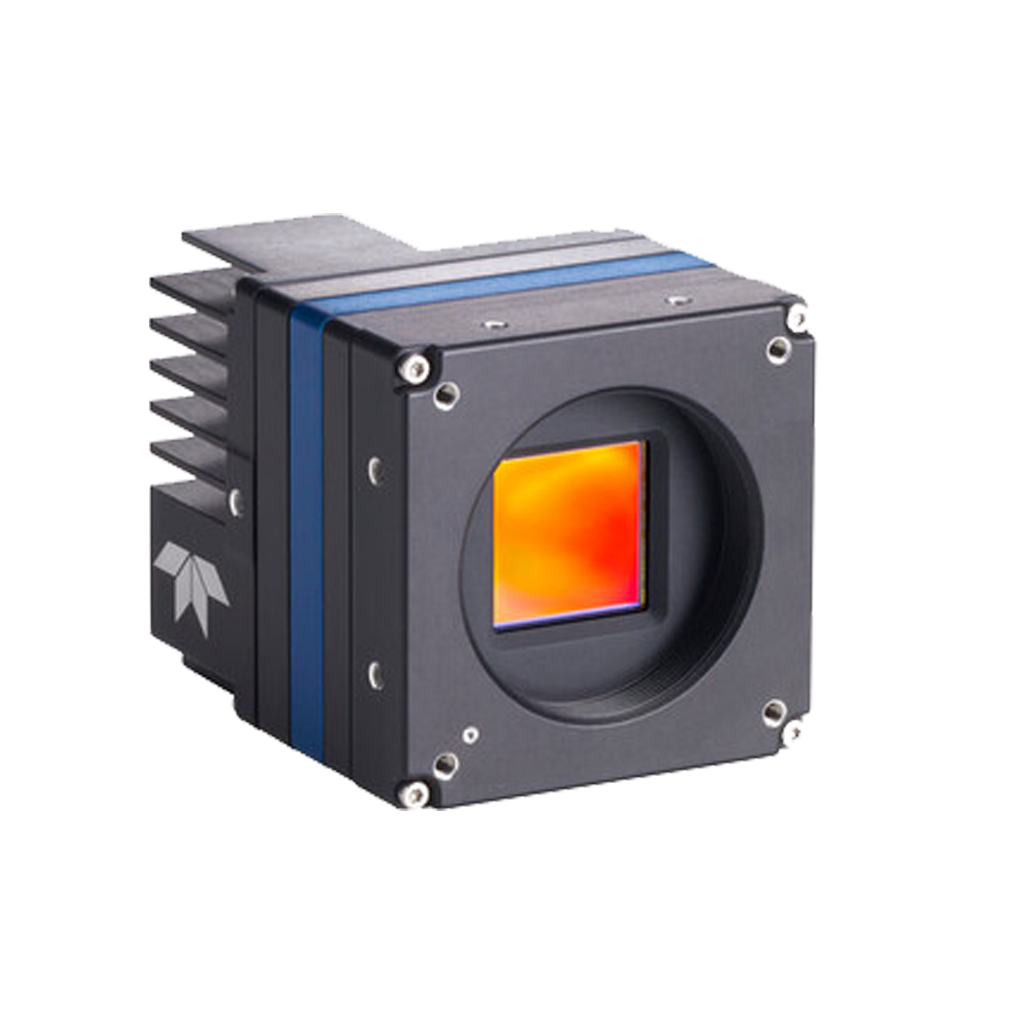

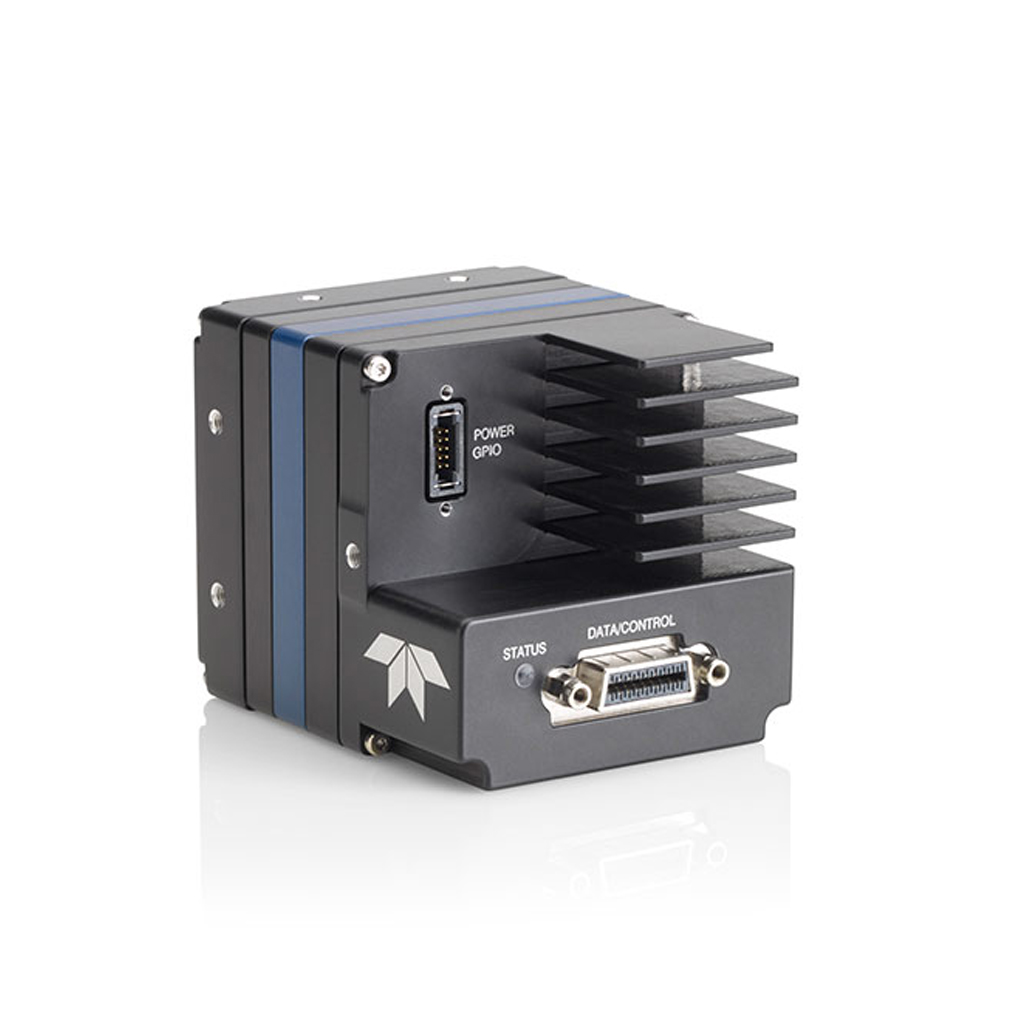

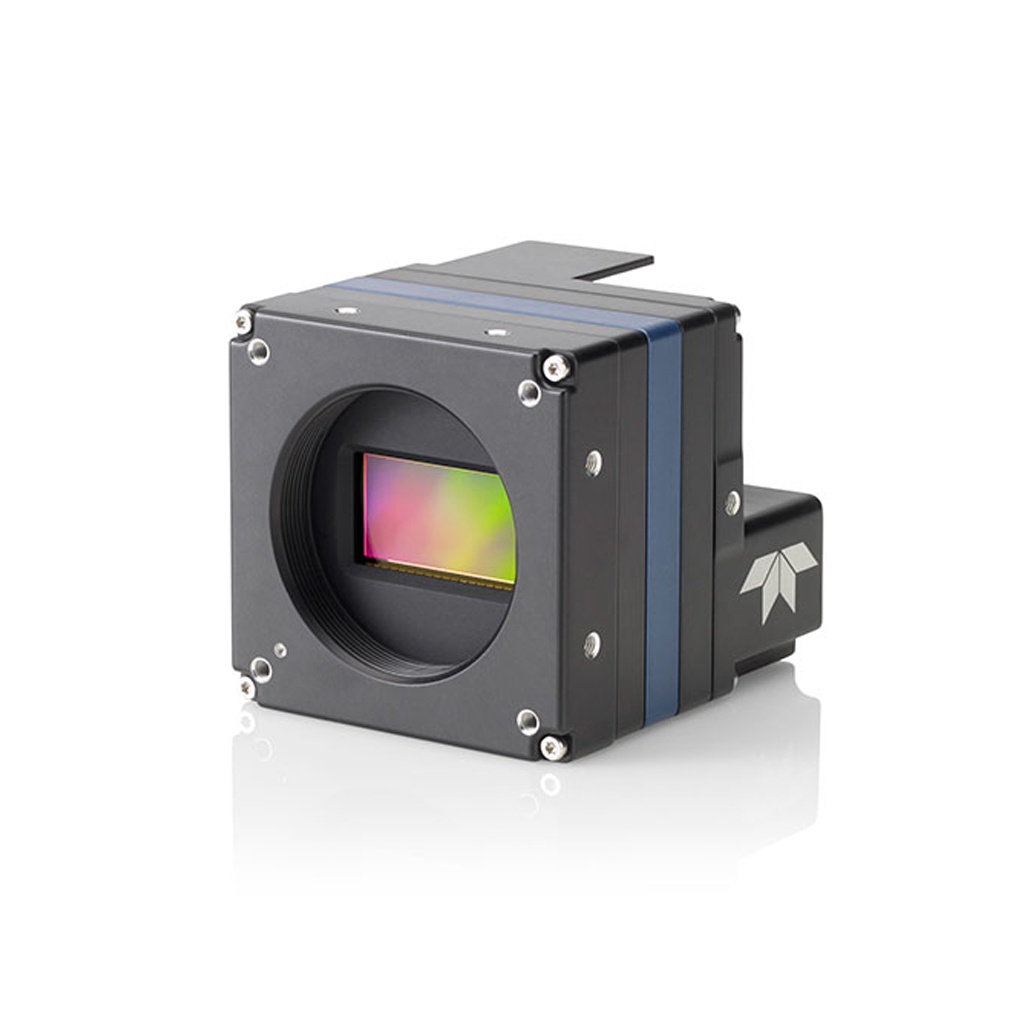

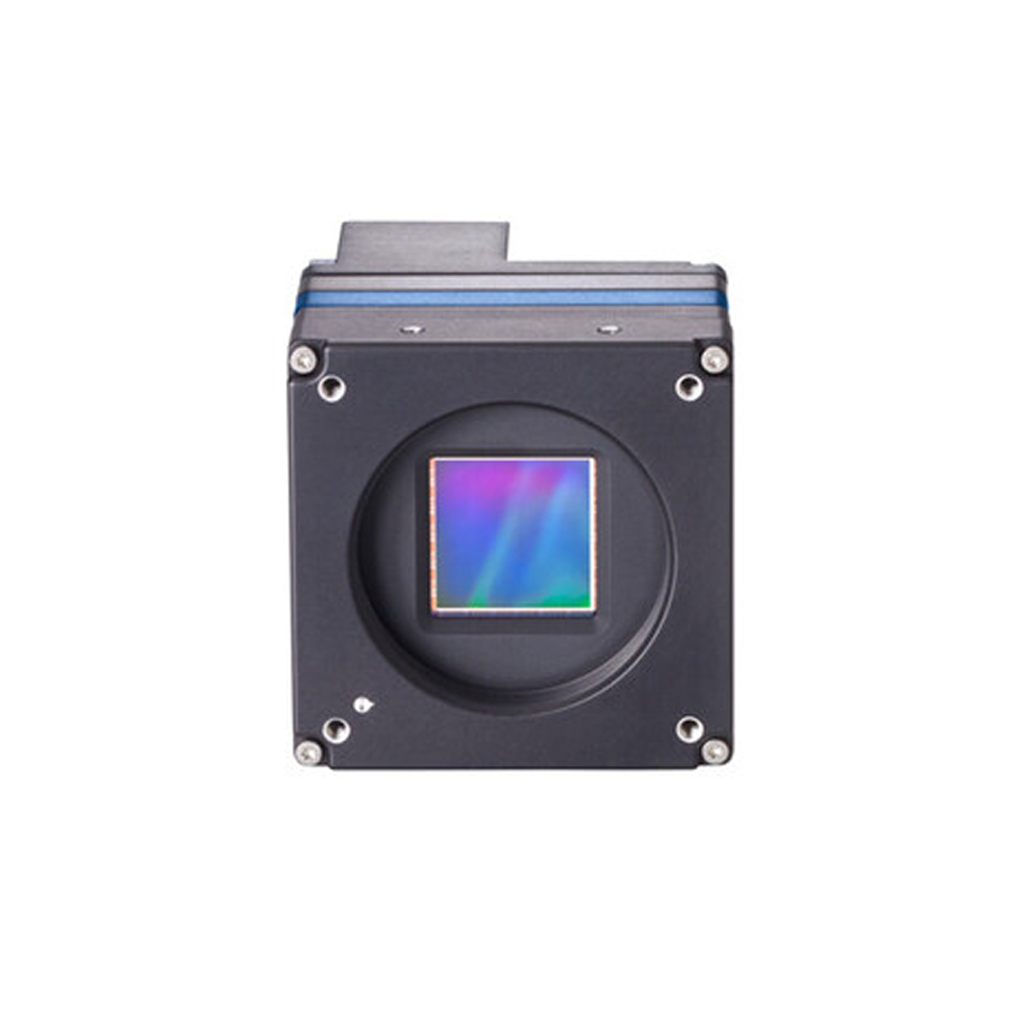

Falcon4-CLHS M2240
True High Performance
For true high-performance imaging, turn to the Falcon™4-CLHS camera series. Using Teledyne Imaging’s advanced CMOS architectures, the Falcon4-CLHS cameras offer unique, unprecedented capabilities for large area, high-resolution, high-speed imaging. Models range from 2.8 megapixels to 67 megapixels, with frame rates up to 1200 fps.
