LMP-1802G-M12-10G-SFP-67-24
Featured Information
LMP-1802G-M12-10G-SFP-67-24
SPESIFICATIONS
- Ambient Relative Humidity : 5% to 95%, (non-condensing)
- Bypass Protection : Ethernet Port 8 and Port 16
- Certifications : FCC, CE
- Configuration : Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
- Configuration Back Up : 1*USB 2.0 with M12 4-pin A-coded female connector for configuration backup/restore
- Digital Input : 1* Digital Input (DI) with M12 5-Pin A-coded male connector: State 0: -30~8VDC / State 1: 10~30VDC, Max. input current: 8mA
- Dimensions : 183 x 295 x 101.3 mm (W x H x D)
- EMI : FCC Part 15 Subpart B Class A CE EN55032/EN61000-6-4 Class A
- EMS : CE EN55035/EN61000-6-2, IEC61000-4-2,3,4,5,6,8
- Ethernet Port : 16*10/100/1000 Base-T(X), 8-pin M12 X-Coded female connectors, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- MAC Table Size : 32K
- Memory Buffer : 4Mbits
- Mounting : Wall mounting
- Network Cable : 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m) 1000Base-T: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
- Network Redundancy : STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
- Operating Temperature : -10°C to 65°C
- Optical Cable : Multi-mode cable - 50/125um or 62.5/125um Single-mode cable - 9/125um or 10/125um
- Overload Current Protection : Present
- Poe Pin Assignment : V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)
- PoE Power Budget : 240W
- Storage Temperature : -40°C to 85°C
- Switching Architecture : Back-Plane (Switching Fabric): 72Gbps
- System / Diagnostics : Dual Image Protection, PING, PING6
- System Power Consumption : 30W
- Transfer Rate : 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port 14,880,000pps for 10 Gigabit Ethernet Port
- Vibration : IEC60068-2-6
- VLAN Groups : 4095
- Warranty : 5 Years
- Weight : Unit: 9.39 lbs. Shipping: 11.18 lbs.
- Flow Control : IEEE 802.3x flow control, back pressure flow control
- Free Fall : IEC60068-2-32
- Green : RoHS Compliant
- Housing : Metal, IP67 protection
- IGMP Group : 1024
- Input Voltage : 24~55VDC Redundant Input
- Jumbo Frame : 9.6Kbytes
- L2 Switching : Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
- L3 Switching : DHCP option82, static routes
- LED Indicators : System: Power 1, Power 2, Master, Ring, Status, PoE Load PoE: On-connected to PD devices Ethernet ports: Speed/Link/Active SFP: Link/Active
- Power Connection : Dual DC power inputs through M12 5-pin K-coded male connector
- Power Saving : ActiPHY, PerfectReach, IEEE 802.3az EEE power management
- Priority Queues : 8
- Processing Type : Store and Forward
- QoS : 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
- Relay Contact : 24VDC, 1A resistive
- Reverse Polarity Protection : Present
- RS232 Serial Console : 1*RS232 with M12 5-pin A-coded female connector
- SFP Port : 2*1G/10G SFP Slots
- Shock : IEC60068-2-27

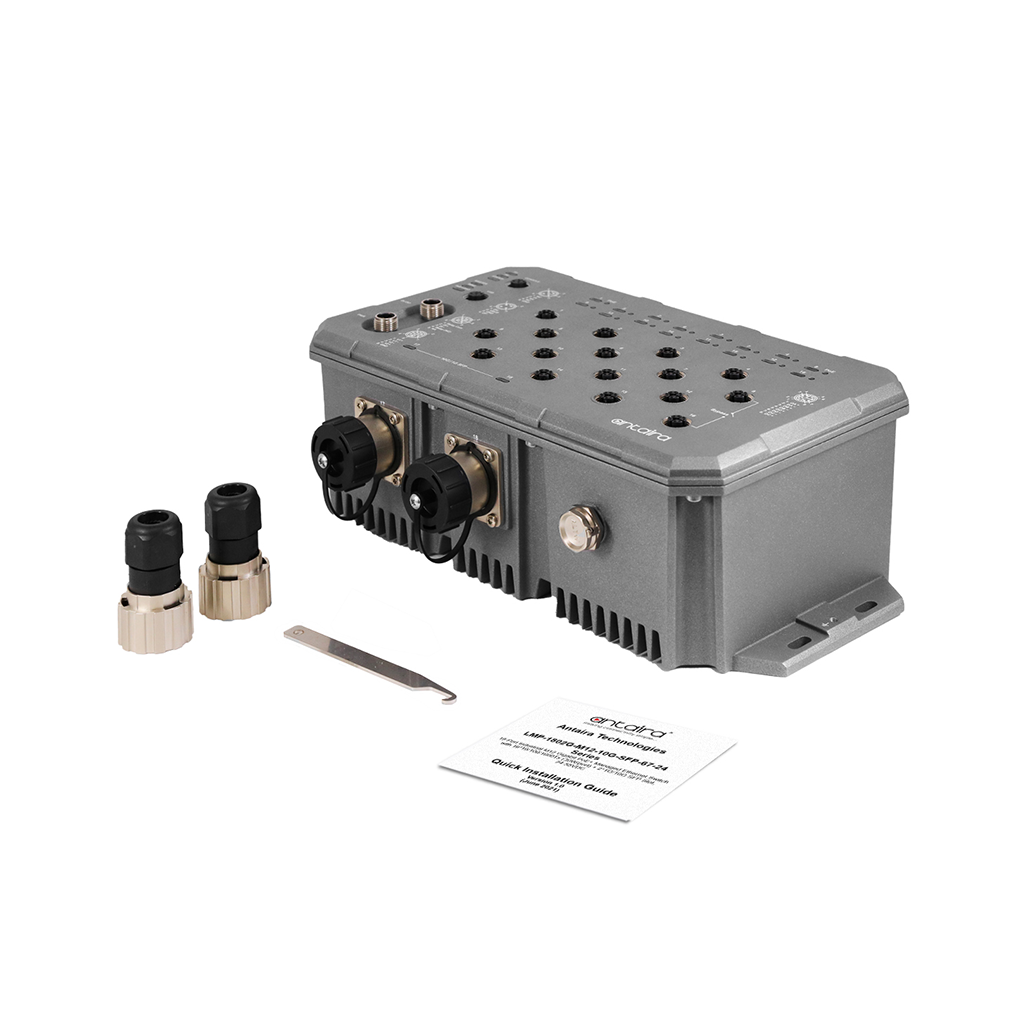

INCLUDED
- Dust cover set
- LMP-1802G-M12-10G-SFP-67-24
- Quick Installation Guide
- SFP metal field installable cable end lock
- SFP removal kit
LMP-1802G-M12-10G-SFP-67-24
Antaira Technologies’ LMP-1802G-M12-10G-SFP-67-24 Series is an 18-port managed gigabit Ethernet switch, which provides 16*10/100/1000 Base-T(X) with IEEE 802.3 af/at PoE compliant and 2*1G/10G fiber slots. LMP-1802G-M12-10G-SFP-67-24 Series is a fully manageable light layer 3 Ethernet switch series and supports power inputs redundancy. LMP-1802G-M12-10G-SFP-67-24 Series offers standardized network redundancy ITU-T G.8032 ERPS v2 (Ethernet Ring Protection Switch) protocol, providing <50ms recovery time to the network. LMP-1802G-M12-10G-SFP-67-24 Series provides comprehensive network security and management capability by supporting Multi-user accounts, IGMP, GVRP, VLAN, QoS, SNMP, RADIUS, TACACS+, Aggregation (Static, LACP), SSH, SSL, IP source guard to create a highly-secured network environment. For power saving purposes, assuring PD, priority, and enhancing the security level of the network, LMP-1802G-M12-10G-SFP-67-24 Series also supports PoE scheduling and PoE output limit function to set up PoE output duration and watt at will. LMP-1802G-M12-10G-SFP-67-24 Series is an M12 IP67 PoE+ industrial gigabit Ethernet switch that meets the high-reliability requirements demanded by industrial applications. Its M12 connectors ensure a tight and robust connection and it guarantees reliable operation on applications that are subject to high vibration and shock in dust, liquid, or gas-laden environments. Being able to operate under the standard temperature range from -10°C to 65°C or the extended temperature range from -40°C to 70°C, the LMP-1802G-M12-10G-SFP-67-24 Series can be installed in almost any harsh environment.
