LMX-C602G-SFP-V2

6-Port Industrial Compact Gigabit Light Layer 3 Managed Ethernet Switch, with 4*...
LMX-C602G-SFP-V2
6-Port Industrial Compact Gigabit Light Layer 3 Managed Ethernet Switch, with 4*10/100/1000Tx and 2*100/1000 SFP Slots

Featured Information

Supports 4*10/100/1000Tx Fast Ethernet Ports and 2*100/1000 SFP Slots
Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
Configuration :
Web Console, Telnet, CLI Command
Product thumb
LMX-C602G-SFP-V2
6-Port Industrial Compact Gigabit Light Layer 3 Managed Ethernet Switch, with 4*10/100/1000Tx and 2*100/1000 SFP Slots

FEATURES

  • Supports 4*10/100/1000Tx Fast Ethernet Ports and 2*100/1000 SFP Slots
  • Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
  • Configuration :   Web Console, Telnet, CLI Command
  • Supports IGMP v1/v2/v3, up to 1024 Groups
  • Supports QoS (IEEE802.1p) and CoS/ToS
  • Supports IEEE802.1Q VLAN, SNMP v1/v2c
  • Power Input :   12~48VDC in 6-Pin Terminal Block
  • Reverse Polarity Protection
  • IP40 Protection
  • DIN-Rail or Wall Mountable

  • L2 Switching :   Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMPv2 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, ARP, MEP, G.8032 v1/v2
  • L3 Switching :   DHCP option82, static routes
  • QoS :  802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
  • Power Saving :   ActiPHY, PerfectReach, IEEE 802.3az EEE power management
  • Network Redundancy :   STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
  • Configuration :   Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
  • System / Diagnostics :   Dual Image Protection, PING, PING6
  • Switching Architecture :   Back-Plane (Switching Fabric): 12Gbps
  • Protocols :  IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
  • Priority Queues :   8

  • RS232 Serial Console :  1*Mini USB type B connector

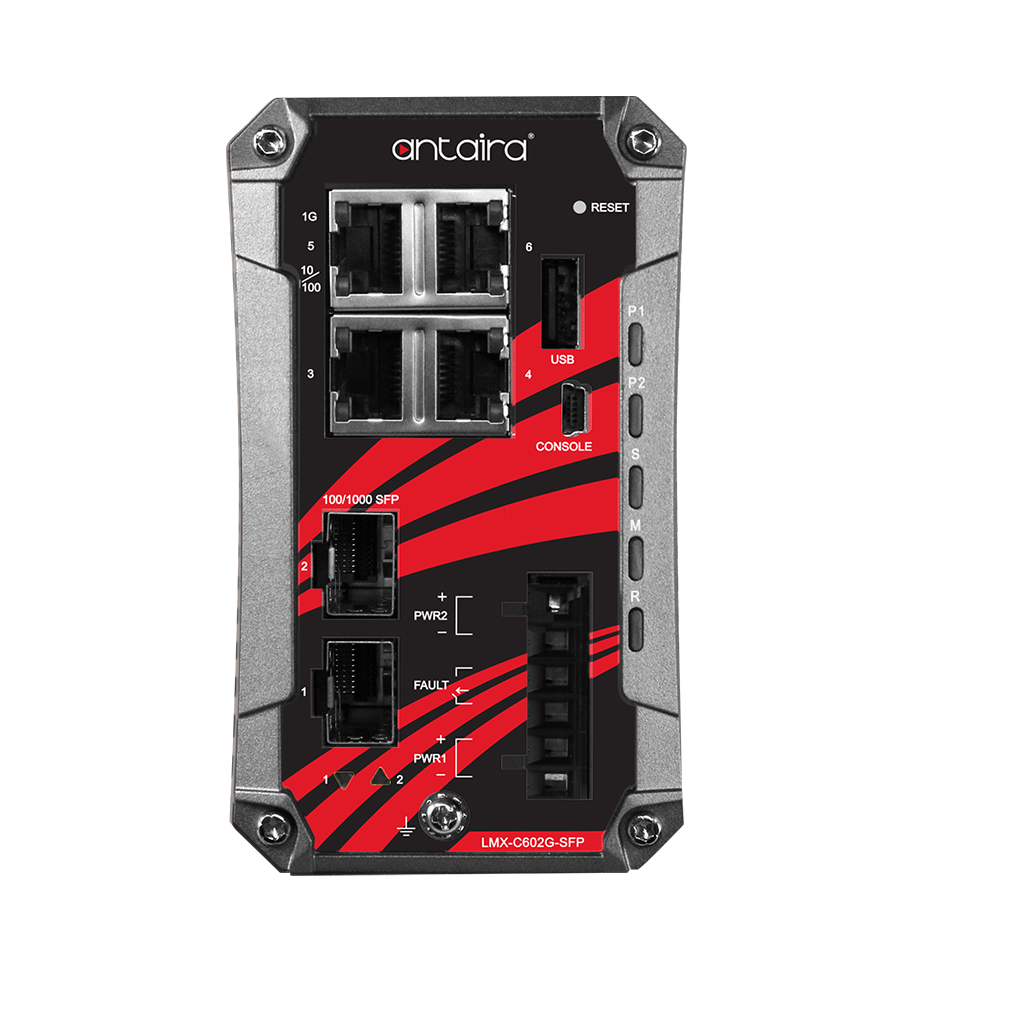

  • LED Indicators :   System: Power 1, Power 2, Master, Ring, and Status Ethernet Ports: Speed/Link/Active SFP Port: Link/Active
  • Network Cable :   10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m) 1000Base-TX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
  • Housing :  Metal, IP40 protection
  • Dimensions :   64.9 x 110 x 89.8 mm (W x H x D)
  • Weight :   Unit: 1.94 lbs Shipping: 2.55 lbs
  • Mounting :  DIN-Rail mounting, Wall mounting
  • Input Voltage :   12~48VDC Redundant Input
  • Power Connection :   1 removable 6-contact terminal block
  • Relay Contact :   24VDC, 1A resistive

  • Vibration :   IEC60068-2-6
  • Green :   RoHS Compliant
  • Certifications :   FCC, CE
  • Warranty :   5 Years

  • Operating Temperature Range – STD: -10°C to 65°C
  • 5-Year Warranty

  • Processing Type :   Store and Forward
  • Flow Control :   IEEE 802.3x flow control, back pressure flow control
  • Transfer Rate :   14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
  • Memory Buffer :   4Mbits
  • Jumbo Frame :   9.6Kbytes
  • MAC Table Size :   8K
  • VLAN Groups :   4095
  • IGMP Group :   1024
  • Ethernet Port :   4*10/100/1000Base-TX Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
  • SFP Port :   2*100/1000 SFP Slots

  • Overload Current Protection :   Present
  • Reverse Polarity Protection :   Present
  • System Power Consumption :   10.8W
  • Operating Temperature :   STD: -10°C to 65°C
  • Storage Temperature :   -40°C to 85°C
  • Ambient Relative Humidity :   5% to 95%, (non-condensing)
  • EMI :  FCC Part 15 Subpart B Class A, CE EN55032/EN61000-6-4 Class A
  • EMS :  CE EN55035/EN61000-6-2 Class A, IEC61000-4-2,3,4,5,6,8
  • Free Fall :  IEC60068-2-32
  • Shock :  IEC60068-2-27

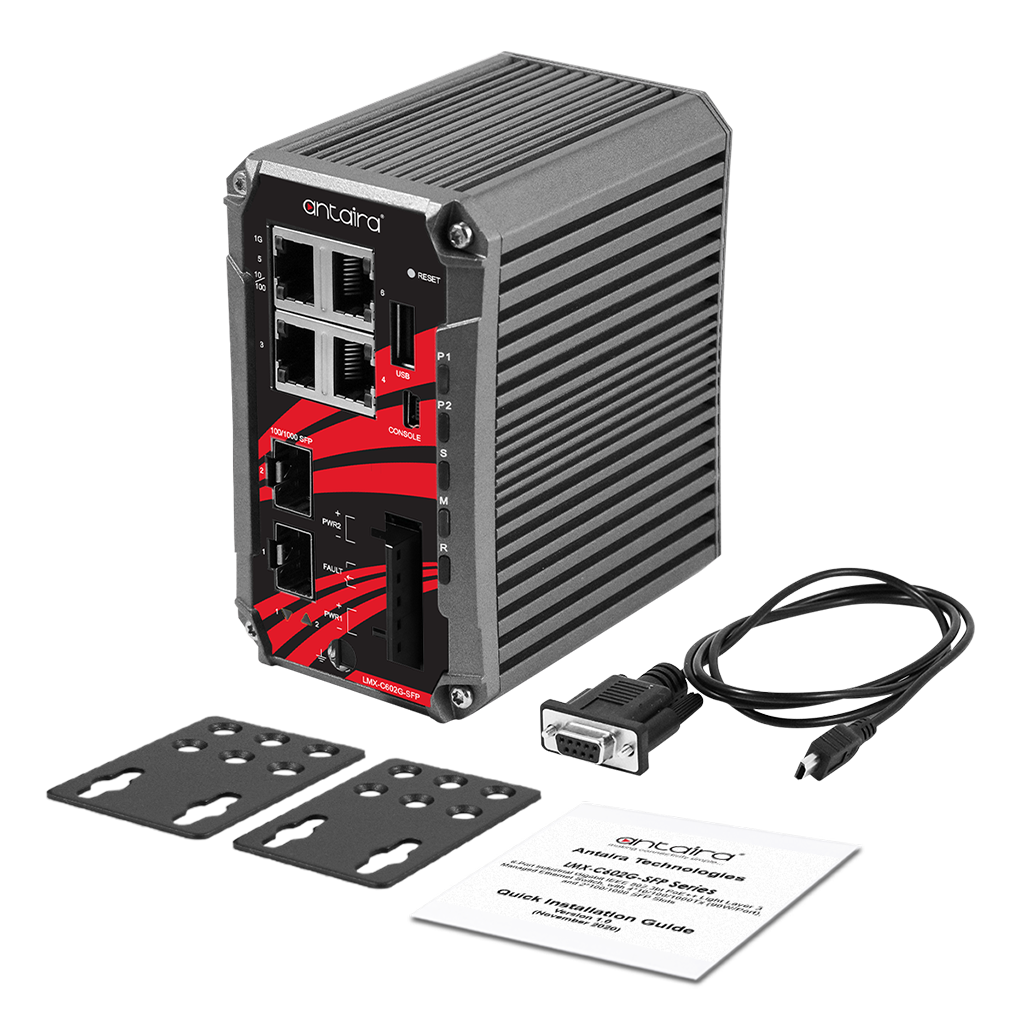

INCLUDED

  • LMX-C602G-SFP-V2
  • Quick Installation Guide
  • Wall mounting bracket set with screws
  • DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
  • Dust Cover Set
  • Mini-USB B type male to DB9 RS232 female cable

Product thumb
LMX-C602G-SFP-V2
6-Port Industrial Compact Gigabit Light Layer 3 Managed Ethernet Switch, with 4*10/100/1000Tx and 2*100/1000 SFP Slots

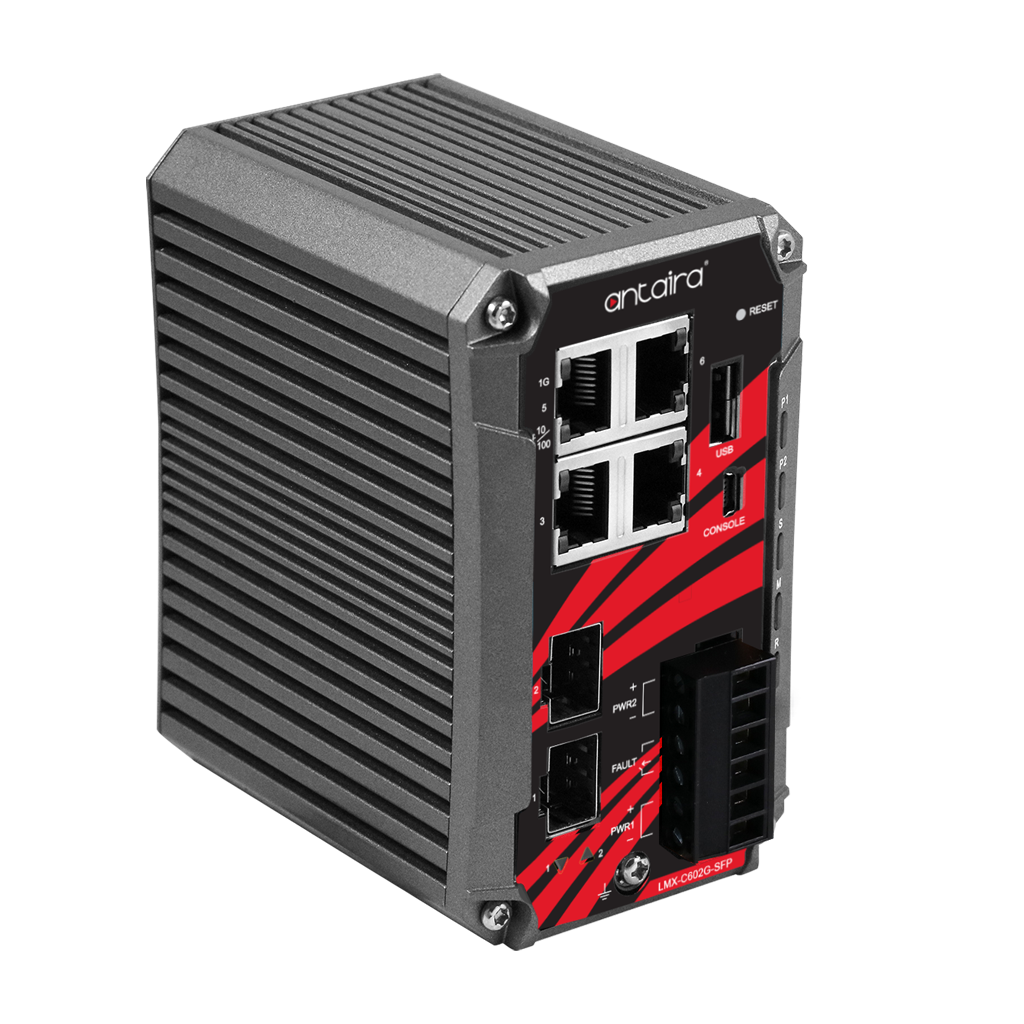

Antaira Technologies’ LMX-C602G-SFP-V2 is a 6-port industrial compact Gigabit managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports and 2*100/1000Fx dual rate SFP slots for fiber connection. The LMX-C602G-SFP-V2 is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMX-C602G-SFP-bt-V2 is IP40 rated and DIN-rail mountable. There are also a standard temperature range (STD: -10°C to 65°C). It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment. With a compact form and all connections facing the front of the Ethernet switch making it easy viewing of installations in a reserved space.
