LMX-C602G-SFP-T-V2
Featured Information
LMX-C602G-SFP-T-V2
FEATURES
- Supports 4*10/100/1000Tx Fast Ethernet Ports and 2*100/1000 SFP Slots
- Network Redundancy Support : RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Configuration : Web Console, Telnet, CLI Command
- Supports IGMP v1/v2/v3, up to 1024 Groups
- Supports QoS (IEEE802.1p) and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c
- Power Input : 12~48VDC in 6-Pin Terminal Block
- Reverse Polarity Protection
- IP40 Protection
- DIN-Rail or Wall Mountable
- L2 Switching : Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMPv2 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, ARP, MEP, G.8032 v1/v2
- L3 Switching : DHCP option82, static routes
- QoS : 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
- Power Saving : ActiPHY, PerfectReach, IEEE 802.3az EEE power management
- Network Redundancy : STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
- System / Diagnostics : Dual Image Protection, PING, PING6
- Configuration : Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
- Switching Architecture : Back-Plane (Switching Fabric): 12Gbps
- Protocols : IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
- Priority Queues : 8
- RS232 Serial Console : 1*Mini USB type B connector
- LED Indicators : System: Power 1, Power 2, Master, Ring, and Status Ethernet Ports: Speed/Link/Active SFP Port: Link/Active
- Network Cable : 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m) 1000Base-TX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
- Housing : Metal, IP40 protection
- Dimensions : 64.9 x 110 x 89.8 mm (W x H x D)
- Weight : Unit: 1.94 lbs Shipping: 2.55 lbs
- Mounting : DIN-Rail mounting, Wall mounting
- Input Voltage : 12~48VDC Redundant Input
- Power Connection : 1 removable 6-contact terminal block
- Relay Contact : 24VDC, 1A resistive
- Vibration : IEC60068-2-6
- Green : RoHS Compliant
- Certifications : FCC, CE
- Warranty : 5 Years
- Operating Temperature Range – EOT : -40°C to 75°C
- 5-Year Warranty
- Processing Type : Store and Forward
- Flow Control : IEEE 802.3x flow control, back pressure flow control
- Transfer Rate : 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
- Memory Buffer : 4Mbits
- Jumbo Frame : 9.6Kbytes
- MAC Table Size : 8K
- VLAN Groups : 4095
- IGMP Group : 1024
- Ethernet Port : 4*10/100/1000Base-TX Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- SFP Port : 2*100/1000 SFP Slots
- Overload Current Protection : Present
- Reverse Polarity Protection : Present
- System Power Consumption : 10.8W
- Operating Temperature : EOT: -40°C to 75°C
- Storage Temperature : -40°C to 85°C
- Ambient Relative Humidity : 5% to 95%, (non-condensing)
- EMI : FCC Part 15 Subpart B Class A, CE EN55032/EN61000-6-4 Class A
- EMS : CE EN55035/EN61000-6-2 Class A, IEC61000-4-2,3,4,5,6,8
- Free Fall : IEC60068-2-32
- Shock : IEC60068-2-27
INCLUDED
- LMX-C602G-SFP-T-V2
- Quick Installation Guide
- Wall mounting bracket set with screws
- DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- Dust Cover Set
- Mini-USB B type male to DB9 RS232 female cable
LMX-C602G-SFP-T-V2

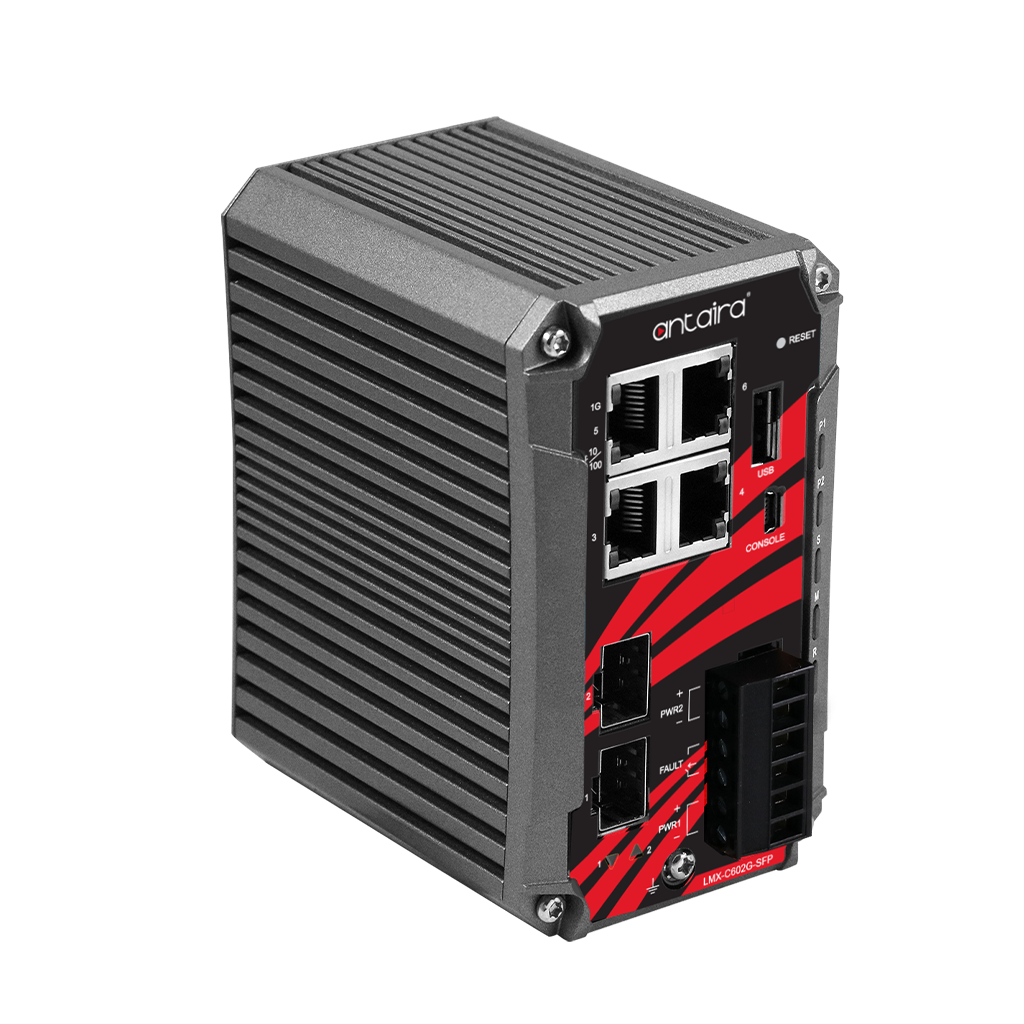

Antaira Technologies'in LMX-C602G-SFP-T-V2'si, fiber bağlantı için 4*10/100/1000Tx Ethernet bağlantı noktaları ve 2*100/1000Fx çift hızlı SFP yuvalarına sahip, 6 bağlantı noktalı endüstriyel kompakt Gigabit yönetimli Ethernet anahtarıdır. LMX-C602G-SFP-T-V2, kullanıcı dostu bir web yönetim konsolu tasarımıyla önceden yüklenmiş, tamamen yönetilebilir bir hafif katman 3 Ethernet anahtarıdır. <50ms ağ kurtarma süresine sahip, pazarın açık standardı ITU-T G.8032 Ethernet Halka Koruma Anahtarı (ERPS) protokolünü kullanarak halka ağı yedekleme işlevini destekler . IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP ve 802.1X/HTTPS/SSH/SSL gibi gelişmiş ağ filtreleme ve güvenlik işlevleri, uzak SCADA sistemleri veya kontrol ağları için determinizmi artırır ve ağ yönetimini geliştirir. LMX-C602G-SFP-bt-T-V2, IP40 derecelidir ve DIN rayına monte edilebilir. Ayrıca genişletilmiş bir sıcaklık aralığı da mevcuttur (EOT: -40°C ila 75°C). Ayrıca güç/kamu hizmeti, atık su, petrol/gaz/madencilik, fabrika otomasyonu, güvenlik gözetimi, ITS ve diğer tüm dış mekan veya zorlu ortamlar gibi endüstriyel ağ uygulamaları için yüksek EFT ve ESD koruması sağlar. Kompakt formu ve tüm bağlantıların Ethernet anahtarının ön tarafına bakması, kurulumların ayrılmış bir alanda kolayca görüntülenmesini sağlar.
