LMX-2012G-SFP
Featured Information
LMX-2012G-SFP
FEATURES
- Supports 8*10/100/1000Tx Gigabit Ethernet and 12*100/1000 SFP Slots
- Network Redundancy Support : STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Supports IPv4/IPv6, and DHCP Option 66/67/82
- Supports Modbus/TCP Protocol for Device Management and Monitoring
- IGMP v1/v2 for Multicast Traffic Filtering
- QoS (IEEE 802.1p/1Q), CoS/ToS to Increase Determinism
- IEEE802.1Q VLAN for Easy Network Planning
- Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
- Auto Warning by Exception through Relay Output
- Operating Temperature Range – STD : -10°C to 65°C
- L2 Switching : Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
- L3 Switching : DHCP option82, static routes
- QoS : 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
- Power Saving : ActiPHY, PerfectReach, IEEE 802.3az EEE power management
- Network Redundancy : STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
- Configuration : Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
- System / Diagnostics : Dual Image Protection, PING, PING6
- Switching Architecture : Back-Plane (Switching Fabric): 40.0Gbps
- Protocols : IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
- Priority Queues : 8
- RS232 Serial Console : 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8, N, 1
- Configuration Backup : 1*USB 2.0
- LED Indicators : System: Power 1, Power 2, Status, Master, Ring Ethernet: Speed/Link/Active SFP: Link/Active
- Network Cable : 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m) 1000Base-TX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
- Housing : Metal, IP30 rated
- Dimensions : 71.5 x 142 x 99 mm (W x H x D)
- Mounting : DIN-Rail mounting, Wall mounting
- Input Voltage : 12~48VDC Redundant Input
- Power Connection : 1 removable 4-contact terminal block and 1 removable 2-contact terminal block
- Relay Contact : 24VDC, 1A resistive
- Vibration : IEC60068-2-6
- Green : RoHS Compliant
- Certifications : FCC, CE, UL 61010-1, 61010-2-201, NEMA TS2
- Warranty : 5 Years
- Weight : Unit: 3.4 lbs. Shipping: 4.18 lbs.
- 5-Year Warranty
- Processing Type : Store and Forward
- Flow Control : IEEE 802.3x for full duplex mode, back pressure for half duplex mode
- Transfer Rate : 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
- Memory Buffer : 4Mbits
- Jumbo Frame : 9.6Kbytes
- MAC Table Size : 8K
- VLAN Groups : 4095
- IGMP Group : 1024
- Ethernet Port : 8*10/100/1000BaseTx Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- SFP Port : 12*100/1000 SFP Slots
- Overload Current Protection : Present (Slow-Blown Fuse)
- Reverse Polarity Protection : Present
- System Power Consumption : 19W
- Operating Temperature : -10°C to 65°C
- Storage Temperature : -40°C to 85°C
- Ambient Relative Humidity : 5% to 95%, (non-condensing)
- EMI : FCC Part 15 Subpart B Class A, CE EN55032/EN61000-6-4 Class A
- EMS : CE EN55035/EN61000-6-2 IEC61000-4-2,3,4,5,6,8
- Free Fall : IEC60068-2-32
- Shock : IEC60068-2-27
- LMX-2012G-SFP
- Quick Installation Guide
- Wall mounting bracket set with screws
- DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- Dust Cover Set
- RJ45 to DB9 Serial Console Cable
LMX-2012G-SFP

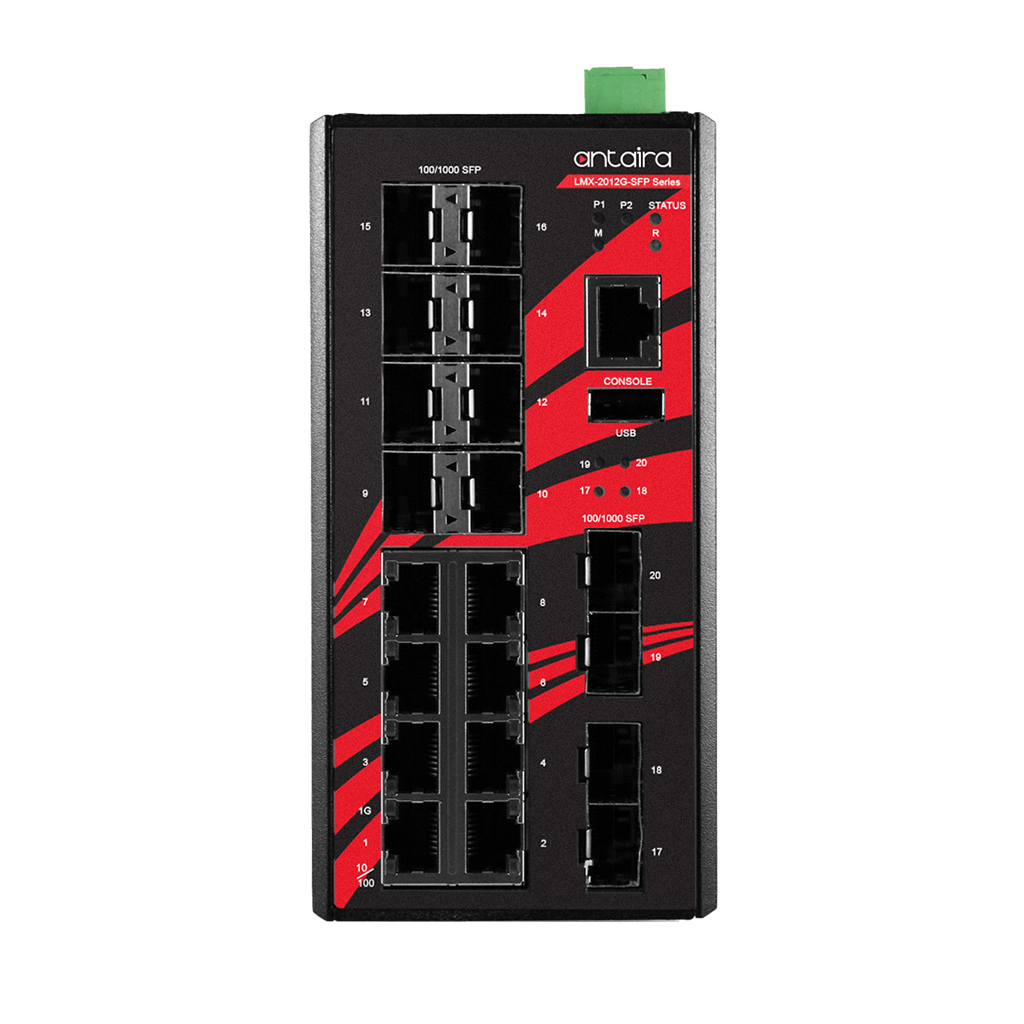

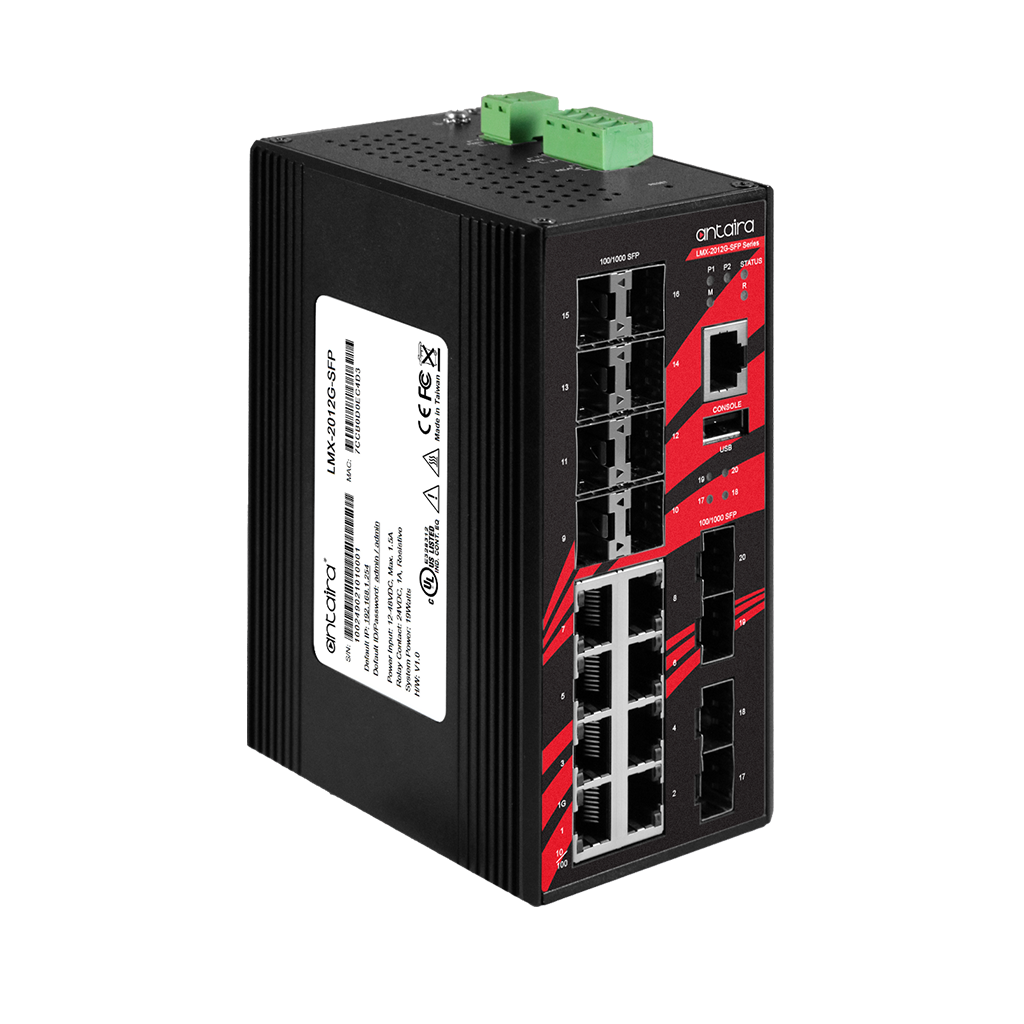

Antaira Technologies’ LMX-2012G-SFP is a 20-port industrial Gigabit managed Ethernet switch that is embedded with 8*10/100/1000Tx Ethernet ports and 12*100/1000 SFP slots. The LMX-2012G-SFP is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMX-2012G-SFP is IP30 rated and DIN-rail mountable. There are also a standard temperature range (STD: -10°C to 65°C). It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance within transportation, ITS and any other outdoor or harsh environment.
