LMX-1002G-10G-SFP
10-Port Industrial Light Layer 3 Gigabit Managed Ethernet Switch, with 8*10/100/...
LMX-1002G-10G-SFP
10-Port Industrial Light Layer 3 Gigabit Managed Ethernet Switch, with 8*10/100/1000Tx and 2*1G/10G SFP+ Slots
Featured Information
Supports 8*10/100/1000Tx RJ45 Ports
Supports 2*1G/10G SFP+ Slots
Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
LMX-1002G-10G-SFP
10-Port Industrial Light Layer 3 Gigabit Managed Ethernet Switch, with 8*10/100/1000Tx and 2*1G/10G SFP+ Slots
FEATURES
- Supports 8*10/100/1000Tx RJ45 Ports
- Supports 2*1G/10G SFP+ Slots
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Supports IPv4/IPv6, and DHCP Option 66/67/82
- Supports Modbus/TCP Protocol for Device Management and Monitoring
- Supports IGMP v1/v2 for Multicast Traffic Filtering
- IEEE802.1Q VLAN for Easy Network Planning
- Power Input : 12~48VDC in 6-Pin Terminal Block
- Reverse Polarity Protection
- IP30 Protection
- L2 Switching : Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
- Switching Architecture : Back-Plane (Switching Fabric): 56Gbps
- Protocols : IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
- Processing Type : Store and Forward
- Transfer Rate : 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port 14,880,000pps for 10 Gigabit Ethernet Port
- Packet Buffer : 4 Mbits
- MAC Table Size : 16K
- Jumbo Frame : 9.6Kbytes
- Flow Control : IEEE 802.3x for full duplex mode, back pressure for half duplex mode
- VLAN Groups : 4095
- Weight : Unit: 2.29 lbs Shipping: 2.95 lbs

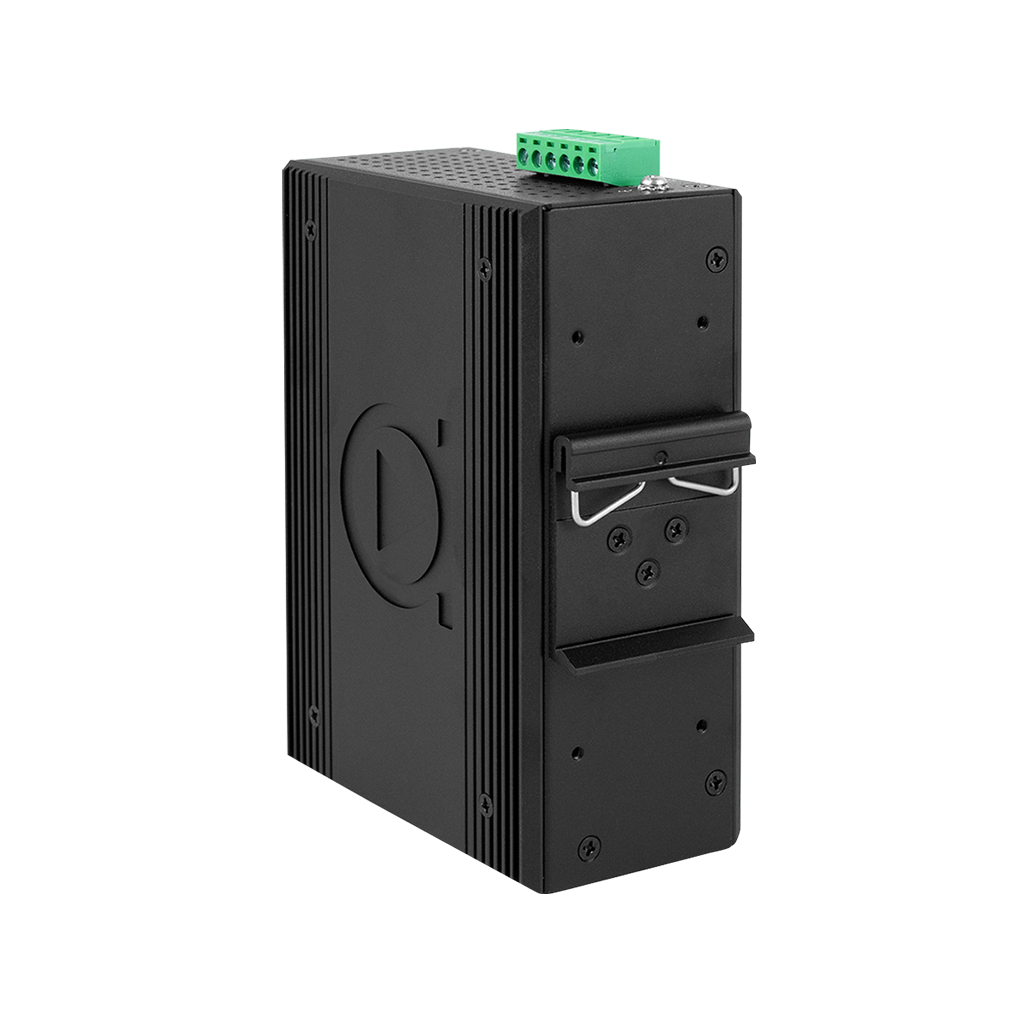

- Mounting : DIN-Rail Mounting, Wall Mounting
- Input Voltage : 12-48VDC Redundant Power Inputs

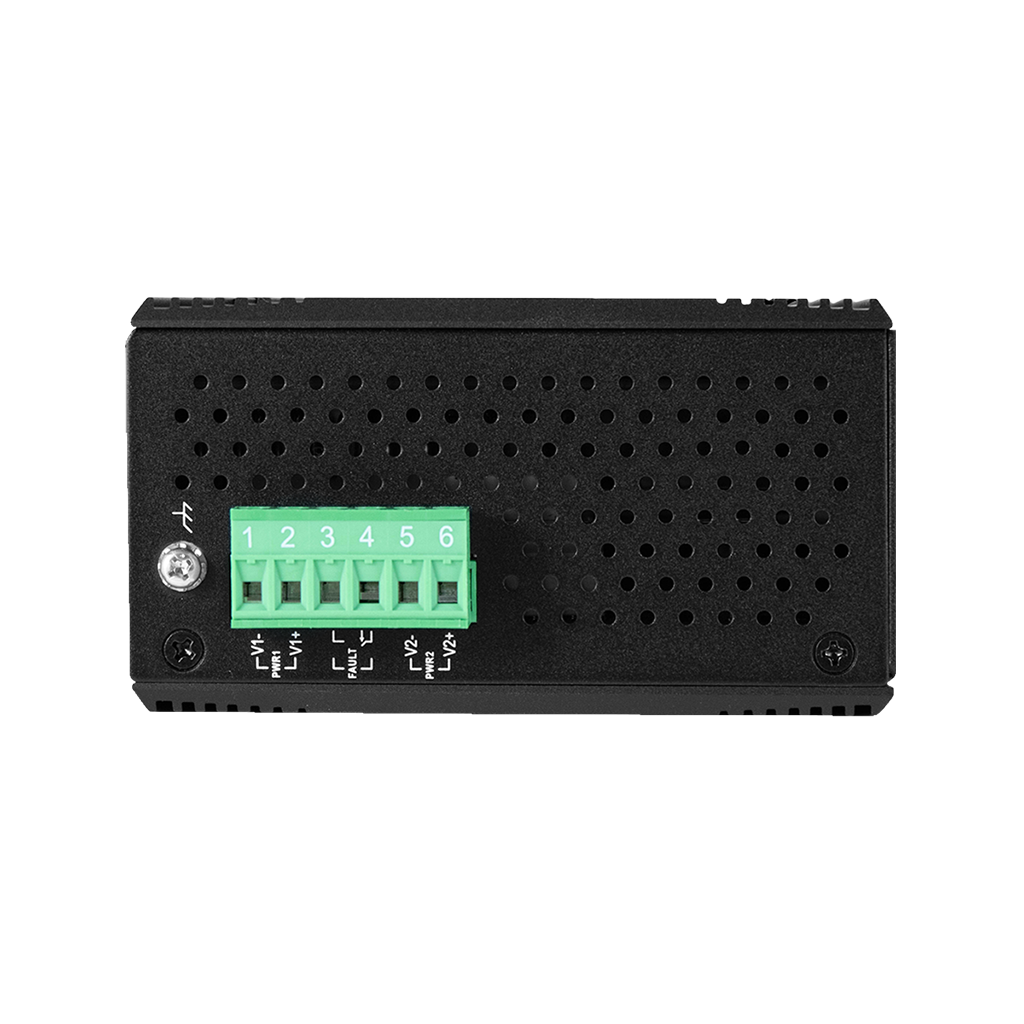

- Power Connection : 1 Removable 6-Contact Terminal Block
- System Power Consumption : 15.5W
- Operating Temperature : STD: -40°C to 60°C
- Storage Temperature : -40°C to 90°C
- Ambient Relative Humidity : 5% to 95%, (non-condensing)
- EMI : FCC Part 15 Subpart B Class A CE EN55032/EN61000-6-4 Class A
- EMS : CE EN55035/EN61000-6-2 Class A: IEC61000-4-2,3,4,5,6,8
- Shock : IEC60068-2-27
- Vibration : IEC60068-2-6
- DIN-Rail and Wall Mountable
- Operating Temperature Range - STD : -40° to 60°C
- 5-Year Warranty
- IGMP Group : 1024
- Ethernet Port : 8*10/100/1000BaseTx Auto Negotiation Speed, Full/Half duplex mode, and auto MDI/MDIX connection
- SFP Port : 2*1G/10G SFP+ slots
- Wavelength : Depends on SFP modules
- RS232 Serial Console : 1*RS232 in RJ45 connector with console cable, baud rate 115.2Kbps, 8, N, 1
- Overload Current Protection : Present
- Reverse Polarity Protection : Present
- Network Cable : 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m) 1000Base-TX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
- Housing : Metal, IP30 Protection
- Dimensions : 54 x 142 x 99 mm (W x H x D)
- Green : RoHS Compliant
- Certifications : FCC, CE, UL 61010-1, 61010-2-201
- Warranty : 5 Years
- L3 Switching : DHCP option82, static routes
- QoS : 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
- Power Saving : ActiPHY, PerfectReach
- Network Redundancy : STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
- Configuration : Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
- System / Diagnostics : Dual Image Protection, PING, PING6
- Free Fall : IEC60068-2-32
INCLUDED
- DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- Quick Installation Guide
- RJ45 to DB9 Serial Console Cable
- Wall mounting bracket set with screws
- RJ45 Dust Cover Set
- LMX-1002G-10G-SFP
LMX-1002G-10G-SFP
10-Port Industrial Light Layer 3 Gigabit Managed Ethernet Switch, with 8*10/100/1000Tx and 2*1G/10G SFP+ Slots
Antaira’s LMX-1002G-10G-SFP is a 10-port industrial light layer 3 managed Ethernet switch that is embedded with eight gigabit Ethernet ports and two dual rate (1G/10G) SFP+ slots for fiber connection. This is a fully manageable industrial Ethernet switch pre-loaded with standard light layer 3 network management software. It supports jumbo frame and wide bandwidth for data transmission and has sufficient port counts for edge level connectivity solutions. The LMX-1002G-10G-SFP has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -40°C to 60°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, or any other outdoor or harsh environment. The two 10 gig SFP+ ports deliver high bandwidth support to applications requiring greater speeds of connectivity.
