LMX-2004G-SFP-T
Featured Information
LMX-2004G-SFP-T
FEATURES
- Supports 16*10/100/1000Tx RJ45 Ports
- Supports 4*100/1000 SFP Slots
- Network Redundancy : STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Supports IPv4/IPv6, and DHCP Option 66/67/82
- Supports Modbus/TCP Protocol for Device Management and Monitoring
- IGMP v1/v2 for Multicast Traffic Filtering
- System Warning Setting for Automatic Warning through E-mail
- QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
- IEEE802.1Q VLAN for Easy Network Planning
- Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
- Shock : IEC60068-2-27
- Protocols : IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
- Switching Architecture : Back-Plane (Switching Fabric): 40.0Gbps
- Processing Type : Store and Forward
- Flow Control : IEEE 802.3x for full duplex mode, back pressure for half duplex mode
- Transfer Rate : 14,880pps for 10Base-T Ethernet 148,800pps for 100Base-T Fast Ethernet 1,488,000pps for Gigabit Ethernet
- Packet Buffer : 4Mbits
- Jumbo Frame : 9.6Kbytes
- MAC Table Size : 8K
- VLAN Groups : 4095
- Housing : Metal, IP30 rated
- Dimensions : 67 x 142 x 99 mm (W x H x D)
- Weight : Unit: 2.65 Ibs Shipping: 3.09 Ibs

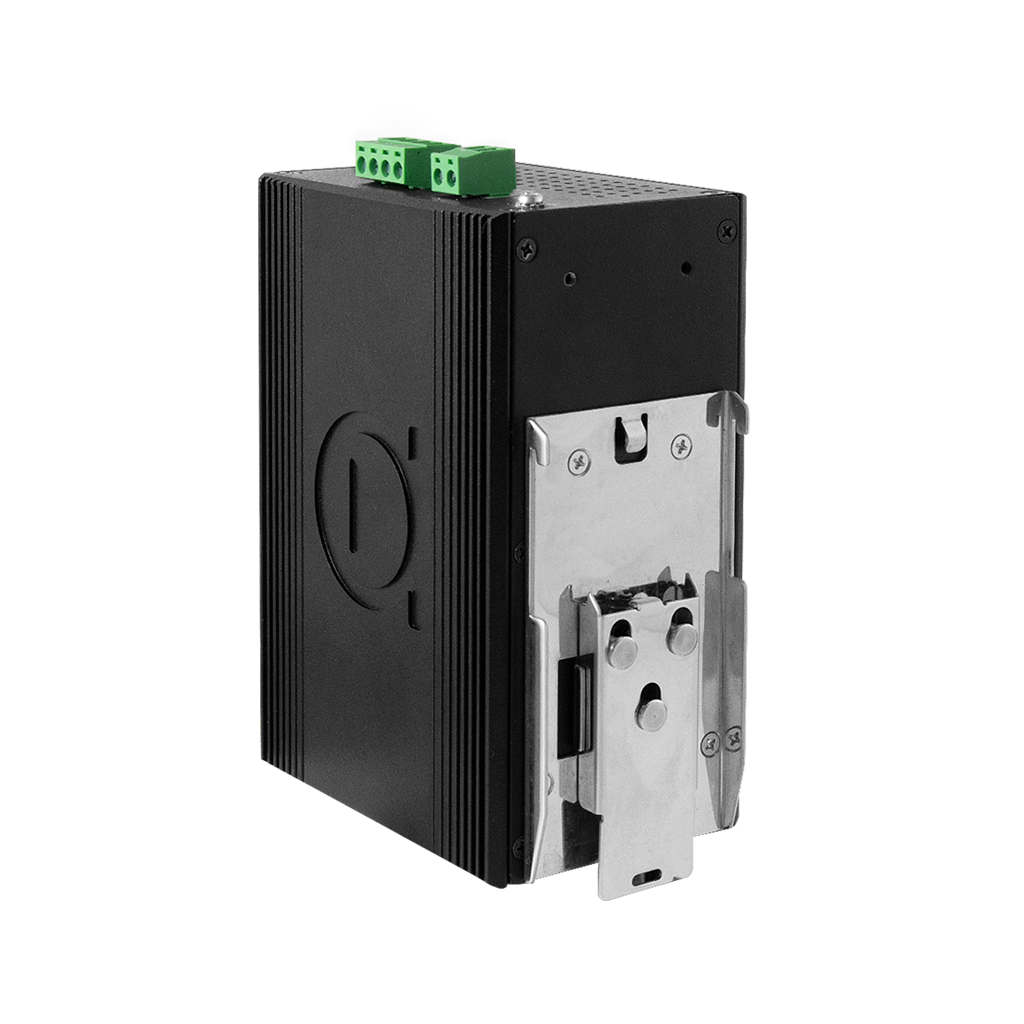

- Mounting : DIN-Rail mounting; Wall mounting
- Input Voltage : 12~48VDC Redundant Input
- Power Connection : 1 removable 4-contact and 2-contact terminal block
- System Power Consumption : 18.4 Watts
- Operating Temperature : -40°C to 75°C
- Storage Temperature : -40°C ~ 85°C
- Ambient Relative Humidity : 5 to 95%, (non-condensing)
- Network Redundancy : STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
- Configuration : Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
- System / Diagnostics : Dual Image Protection, PING, PING6
- Substation : IEC 61850-3 Edition 2.0
- Auto Warning by Exception through E-mail, Relay Output
- Operating Temperature Range : -40°C to 75°C
- 5-Year Warranty
- IGMP Group : 1024
- Ethernet Port : 16*10/100/1000BaseTx Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Fiber Port : 4*100/1000 SFP Slots
- Wavelength : Depends on SFP modules
- RS232 Serial Console : 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8, N, 1
- Configuration Backup : 1*USB 2.0
- Overload Current Protection : Present
- Reverse Polarity Protection : Present (the unit will not be on, if power reverse)
- Network Cable : 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable; EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5 cable; EIA/TIA-568 100-ohm (100m) 1000BaseTX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
- Vibration : IEC60068-2-6
- EMI : FCC Part 15 Subpart B Class A CE EN55032/EN61000-6-4 Class A
- EMS : CE EN55035/EN61000-6-2 Class A EN61000-4-2,3,4,5,6,8
- Free Fall : IEC60068-2-32
- Green : RoHS Compliant
- Certifications : FCC, CE, UL 61010-1, 61010-2-201, NEMA TS2
- Warranty : 5 Years
- L2 Switching : Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
- L3 Switching : DHCP option82, static routes
- QoS : 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
- Power Saving : ActiPHY, PerfectReach, IEEE 802.3az EEE power management
INCLUDED
- LMX-2004G-SFP-T
- Quick Installation Guide
- Wall mounting bracket set with screws
- 1 - RJ45 to DB9 Serial Console Cables
- 1 - DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- RJ45 Dust Cover Set
LMX-2004G-SFP-T

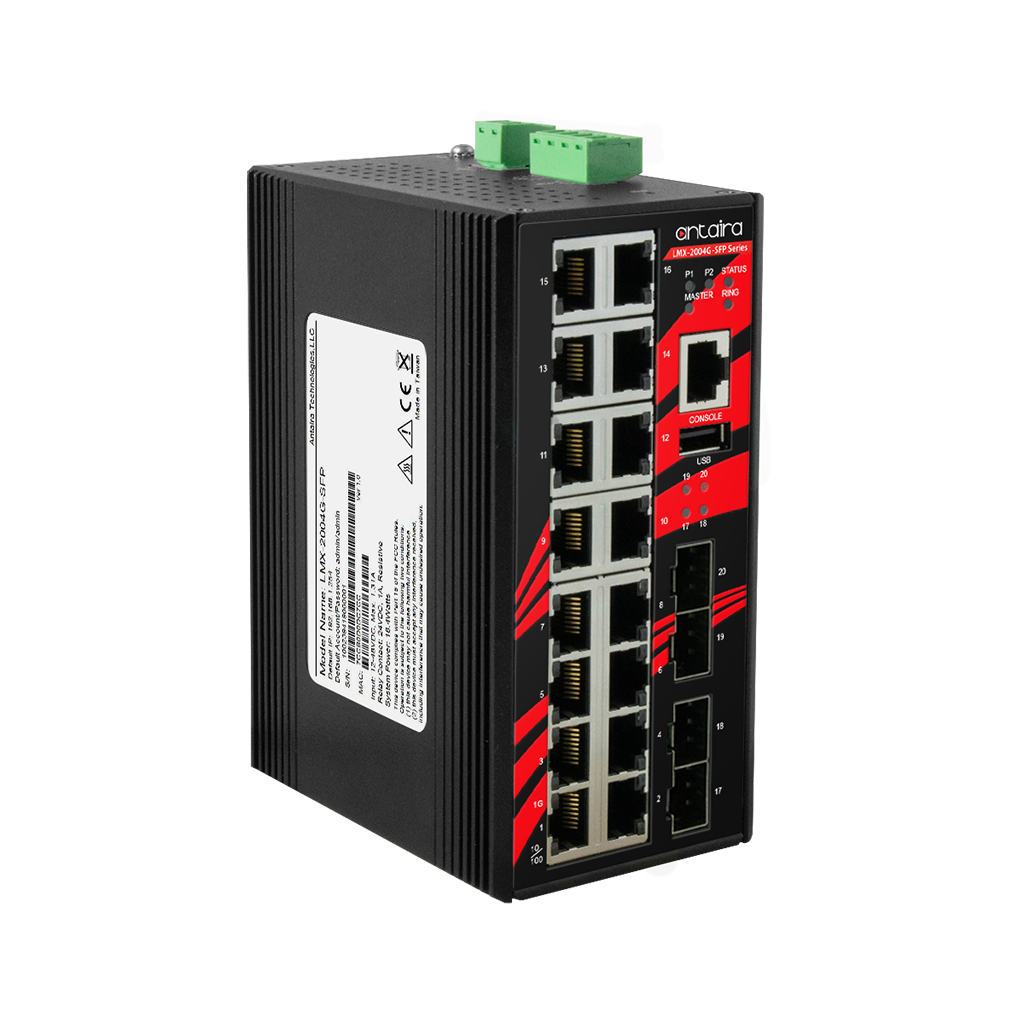

Antaira Technologies’ LMX-2004G-SFP-T is a 20-port industrial Gigabit managed Ethernet switch that is embedded with 16*10/100/1000Tx Ethernet ports and 4*100/1000 SFP slots. The LMX-2004G-SFP-T is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMX-2004G-SFP-T is IP30 rated and DIN-rail mountable. There are also an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance within transportation, ITS and any other outdoor or harsh environment.
