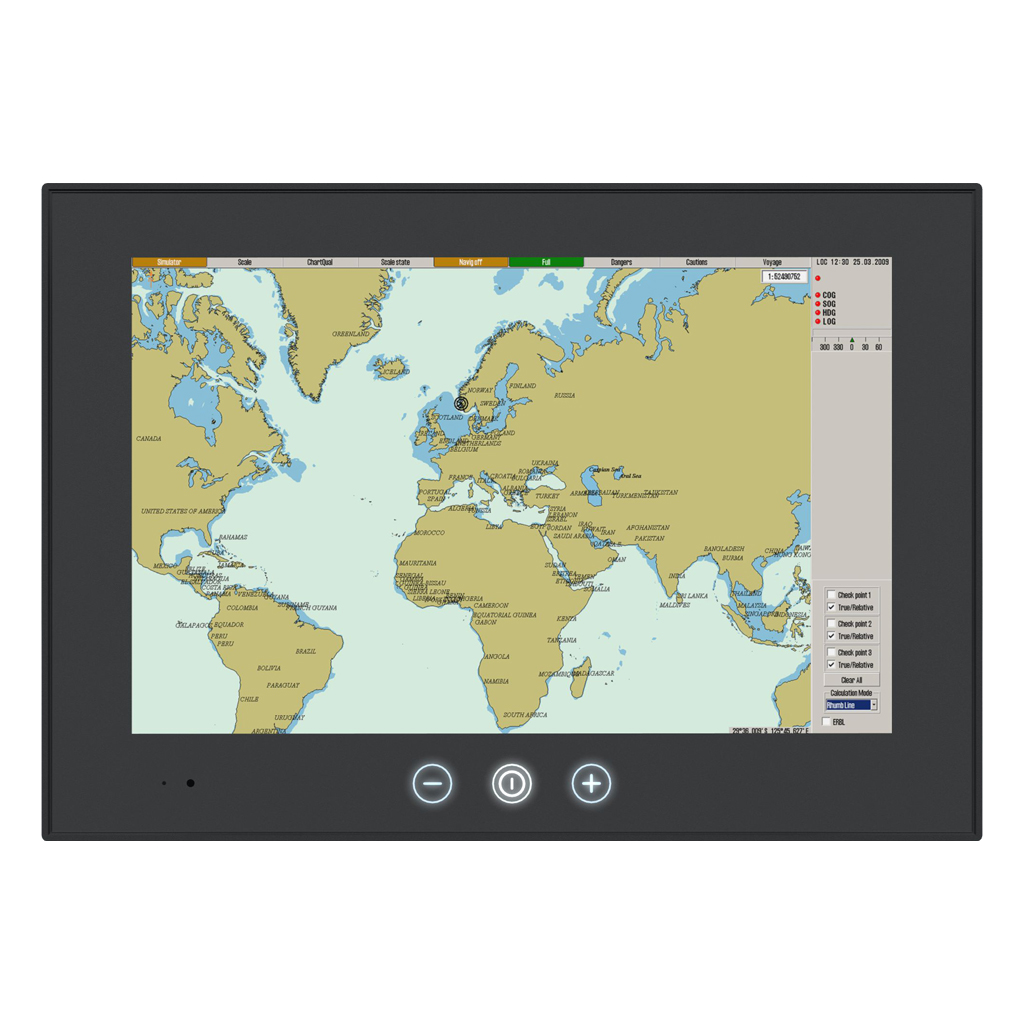

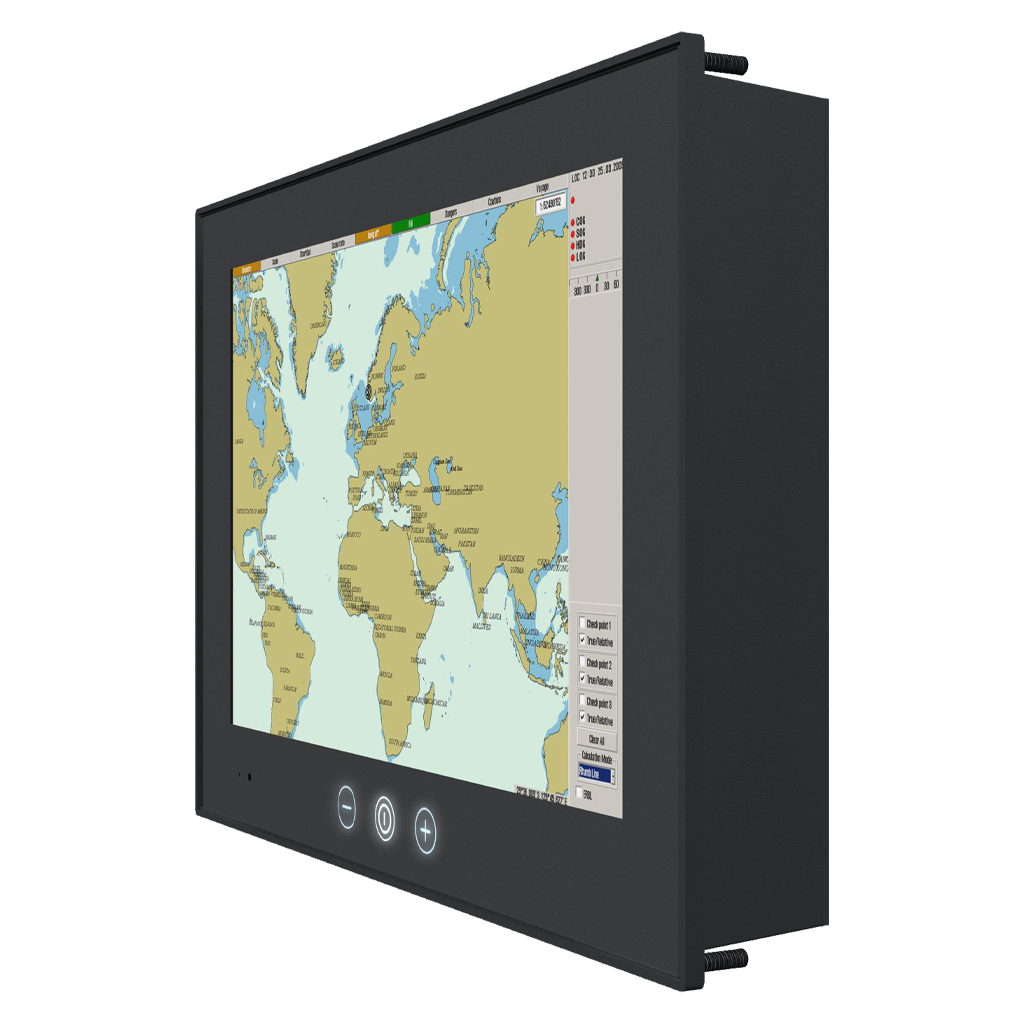

HATTELAND® Series X G1 - 13.3 Inch
Featured Information
HATTELAND® Series X G1 - 13.3 Inch
SPESIFICATIONS
- TFT Technology : LED Backlight Technology, a-si TFT Active Matrix, Widescreen
- Viewable Size and Active Area : 13.3 inch - 286.08 [11.26''] (H) x 178.80 [7.04''] (V) mm [inch]
- Native Resolution and Pixel Pitch : 1280 x 800 (WXGA) - 0.2235 (H) x 0.2235 (V) mm
- Aspect Ratio and Response Time : 16:10 - 6/10ms (typ) (Tr/Tf)
- Light Intensity and Contrast Ratio : 500 cd/m² (typ) - 800:1 (typ)
- View Angle and Max Colors : 70 deg. (up/down) - 60 deg. (left/right) - 16.7 million
- Optimal Resolution and Hz : 1280 x 800 @ 60 Hz
- Detectable Resolutions : 1280x800
- Composite Video Input(s) : None
- Supported Video Signals : None
- Storage Temperature : -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
- IP Rating : Protection: IP66 front - IP22 rear (EN60529)
- Compass Safe Distance : Standard: 45.00 [17.72''] - Steering: 30.00 [11.81''] cm [inch]
- Type Approval, Testing and Certificates : IEC 60945 4th (EN 60945:2002), IACS E10, ClassNK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society, LRS - Lloyd's Register, EU-RO-MR - Mutual Recognition, KR - Korean Register of Shipping Shock: 5g/11ms Vibration: 0.7g (IEC 60945 / IACS E10) Air Pressure Maximum Altitude: Operating: 4000m - Storage: 12912m Air Pressure Maximum Altitude (Bonded): Operating: 3000m - Storage: 3000m
- Product Features : Projected Capacitive Technology (PCTouch), MULTITOUCH, Dimmable 0-100%, Buzzer, Compact Design, Dual 24VDC Input
- Power Specifications and Consumption : 2 x 24VDC, Galvanic Isolated, Automatic Switch <> sources 20W (typ) - 75W (max)
- User Controls and Activity : Glass Display Control™ (GDC) IP66 with: Power On/Off, Brightness Control (-/+), Light Sensor (not visible), Programmable Alarm LED, Buzzer (not visible)
- Connectors : • DVI IN: 1 x DVI-I 29P (female) or VGA IN via Adapter • Touchscreen: 1 x USB Type B (female). Use USB2.0 (<5m) port. • DC Power IN: 2 x 2-pin Terminal Block 5.08
- Product Dimensions and Weight : W:355.00 [13.98''] x H:248.50 [9.78''] x D:58.00 [2.28''] mm [inch] 4 x M4 VESA mounting 75x75mm, Max 8mm deep. Built-in Console mounting 4 x M5x15mm screws. 3.0kg / 6.6lbs
- Product Carton Size and Weight : L:470.00 [18.50''] x W:220.00 [8.66''] x H:450.00 [17.72''] mm [inch] 4.3kg / 9.5lbs
- Factory Options : • Optical Bonding Technology
- Accessories : None
- Capabilities / Prepared for : N/A
- Operating Temperature : -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
The Series X display range is a flexible monitor solution designed and type approved for the professional maritime segment, where reliability and long life time are key prerequisites for the industry. The product range combines stunning design and technology with innovative features and options, making it all that the integrator needs for top class type-approved marine systems. The entry level STD models provide a wide choice of display size and format for shipboard applications where simple data input (DVI & VGA) is required. Be it for ship navigation or automation, this range with all it's possible options provides a robust and cost effective platform from which to display and manage data. This model is delivered with a factory mounted Projected Capacitive Touch Screen (Multitouch, USB interface) as standard and features LED Backlight Technology.
