GO7 XSR with TotalScan & Navionics+ USA charts
GO7 XSR with TotalScan & Navionics+ USA charts
Featured Information
Backlight Color :
White
Display Resolution :
800x480
Screen Brightness :
1200 nits
GO7 XSR with TotalScan & Navionics+ USA charts
DISPLAY
- Backlight Color : White
- Display Resolution : 800x480
- Screen Brightness : 1200 nits
- Viewing Angles : 80° top/bottom, 80° left/right
ELECTRICAL
- Power Consumption Max : 20 W
- Power Consumption Typical : 12 W
- Recommended Fuse Rating : 3 A
- Supply Voltage : 10 - 17 V DC
CONNECTIVITY
- Bluetooth : Internal
- Ethernet Ports : 1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked)
- Connectivity Wi Fi : Internal
- N2K PG Ns : Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
- NMEA 0183 Supported Sentences : Exports NMEA0183 over WiFi
- NMEA 2000 Connectivity : 1 x NMEA 2000 Micro-C port, 1 LEN
- PC Connectivity : None
- SD Card Storage : 1 Micro SD slot, max. 32GB each. >32 GB format to NTFS
- Video : None
GPS
- Correction : WASS, MSAS, EGNOS, GLONASS
- GPS Receiver Channels : 32 Channels
- Position Accuracy : Horizontal Accuracy 3 m (9.8 ft.)
- Time to First Fix : Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec
- Update Rate : 10 Hz
APPROVALS
- Approvals Compliance : CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
PHYSICAL
- Dimensions W x H x D : 197 mm x 141 mm x 82.7 mm (7.56 x 5.55 x 3.26) (no bracket)
- Mounting Type : Bracket or Panel
- Weight : 1.320 kg (2.91lb)
ENVIRONMENT
- Operating Temperature Range : -15°C to +55°C (5° F to 131° F)
- Shock Vibration : CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
- Storage Temperature Range : -20°C to +60°C (4°F to 140°F)
- Waterproofrating : IPX 6 and 7
MFD
- AIS : Receive AIS data over NMEA 2000 only
- Autopilot : Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
- Cartography included : TBD
- Digital Switching : BEP C-Zone
- GPS : Internal, 10Hz, WASS, MSAS, EGNOS
- Internal Storage : 90MB
- Multimedia : via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
- Sonar Compatibility : Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector
- Waypoints, Routes, Tracks : 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
- Weather : SiriusXM via WM-3 (USA only), GRIB
AUTOPILOT
- Manouevres Turn Patterns : U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
- Steering Modes : Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
OTHER
- Interface : Touch screen, OP40 or OP50 controller via NEA 2000
- Languages : Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocksAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
- Recommended Fuse Rating : 3 A
GO7 XSR with TotalScan & Navionics+ USA charts

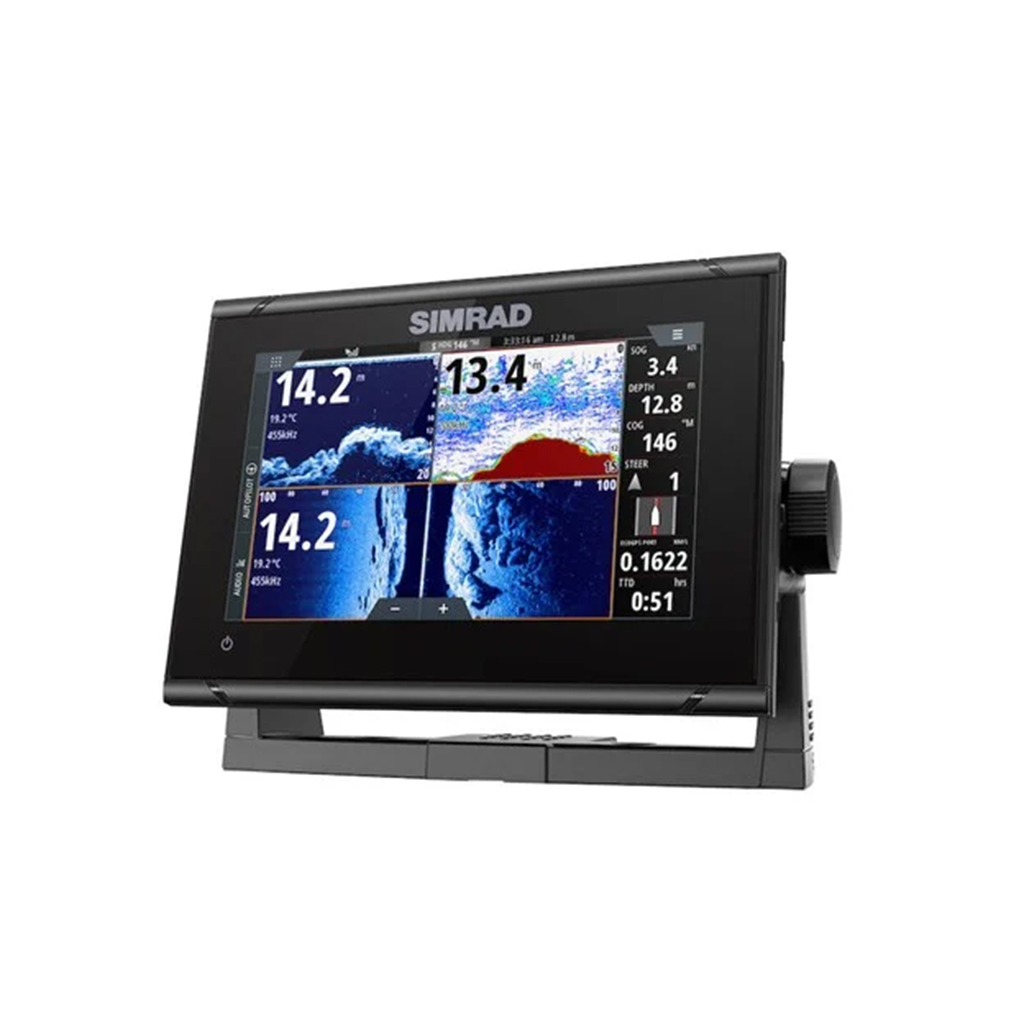

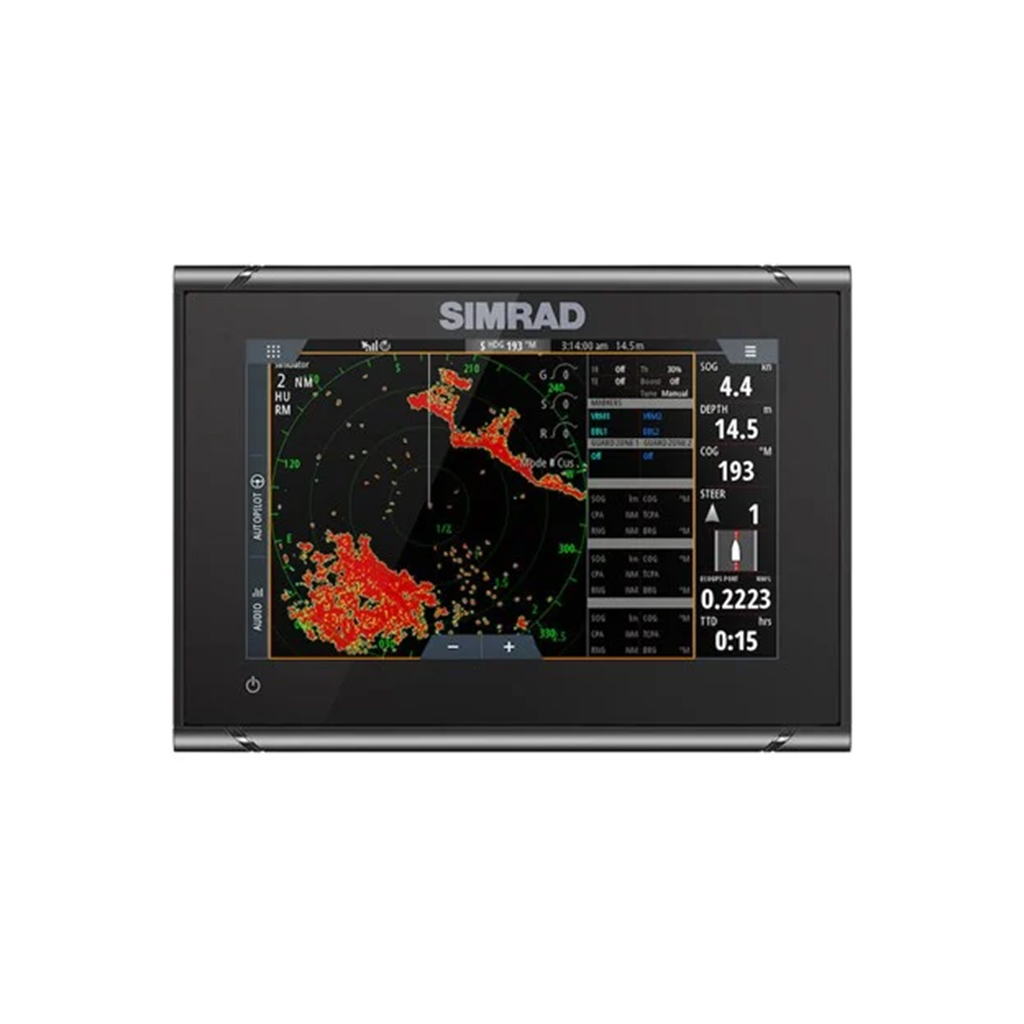

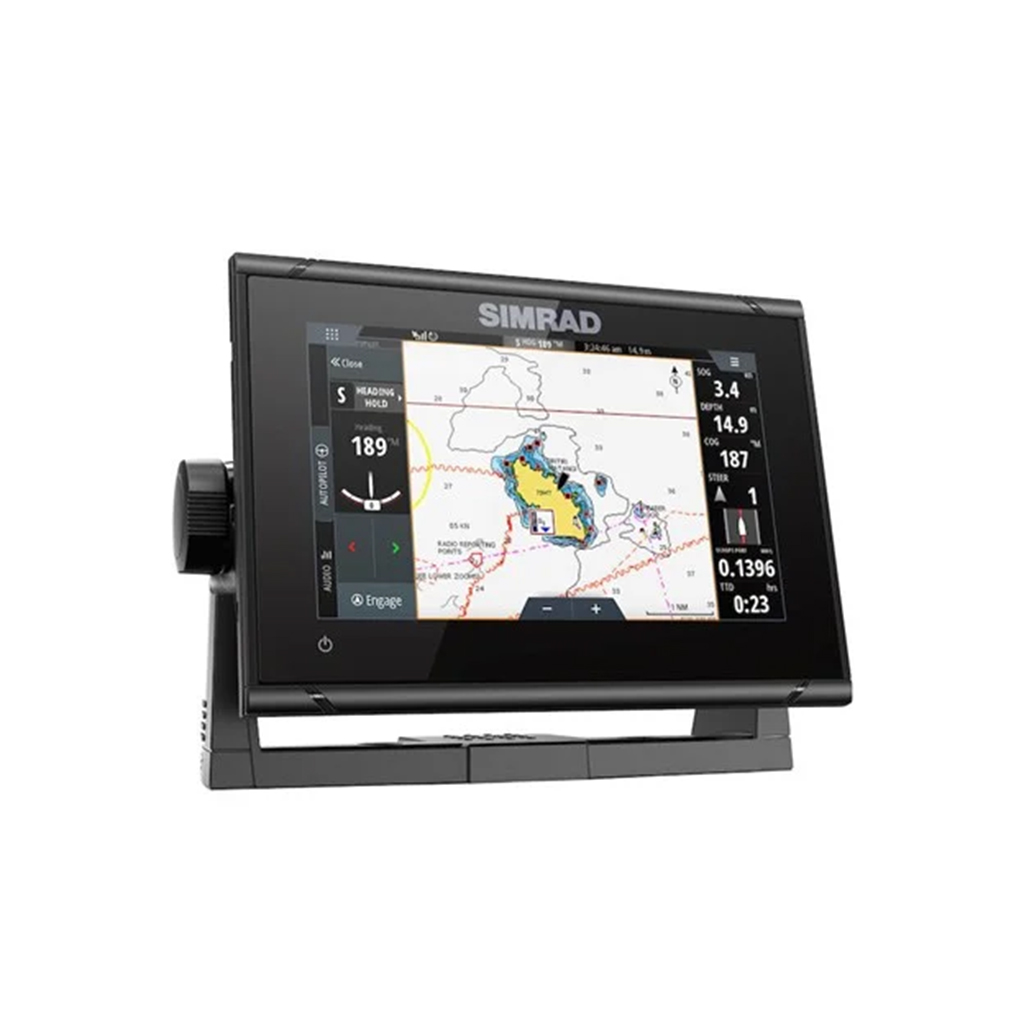

The Simrad GO7 XSR chartplotter navigation display is a perfect way to expand the capabilities of sportboats, cruisers, and smaller center consoles with plug-and-play support for Simrad Broadband Radar™ and Halo™ Pulse Compression radar systems. Behind a super-bright, multi-touch widescreen display lies a built-in GPS receiver, wireless connectivity, and industry standard NMEA 2000® networking. Connect with smartphones and tablets, control your onboard sound system, monitor engine data, and choose from an array of built-in sonar technology for the best cruising and fishing experiences.
