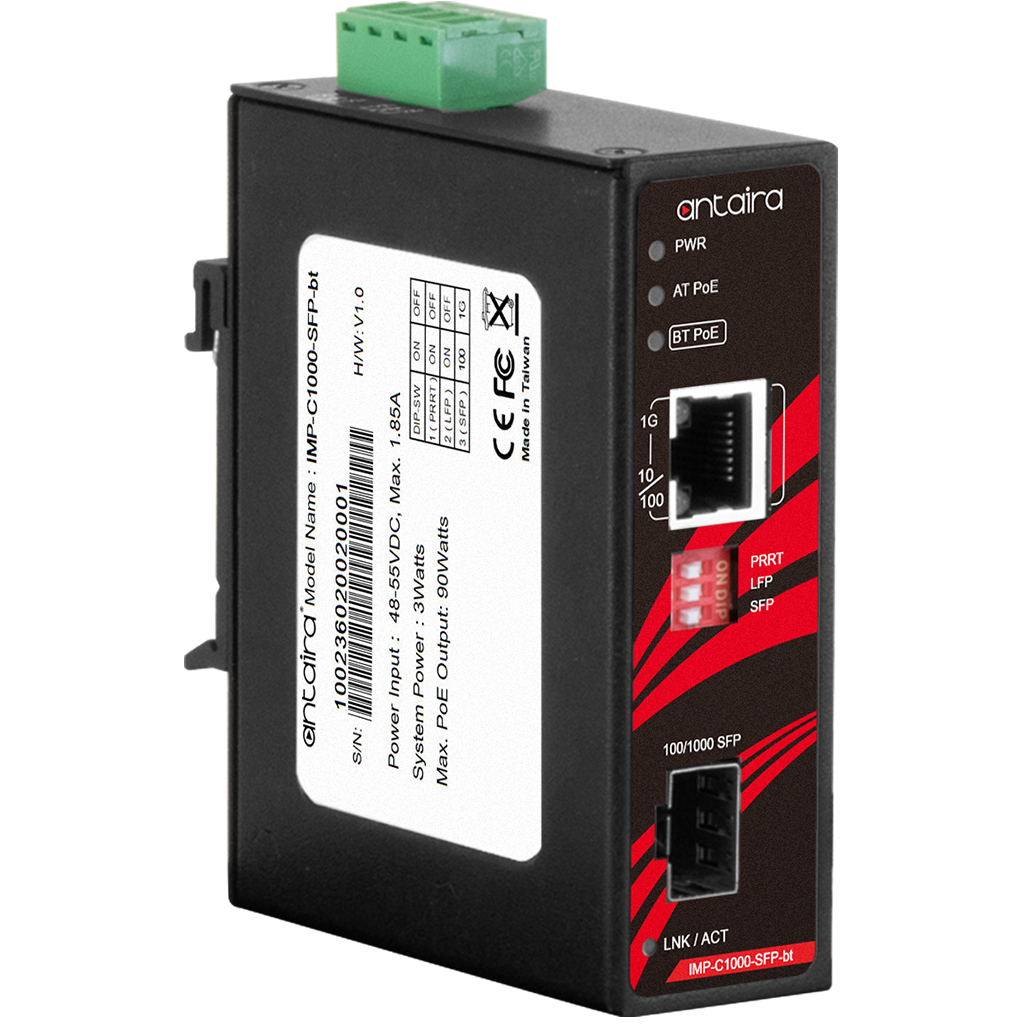

IMP-C1000-SFP-bt-24-T

Compact Industrial Gigabit IEEE 802.3bt Ethernet-to-Fiber Media Converter, 1*10/...

Compact Industrial Gigabit IEEE 802.3bt Ethernet-to-Fiber Media Converter, 1*10/100/1000TX (PSE: 90W) to 1*100/1000 SFP

Ambient Relative Humidity :

5 to 95%, (non-condensing)

Dimensions (W x H x D) :

30 x 95 x 75 mm

Dip Switch :

DIP Switch 1: PD Remote Reset Technology (PRRT) Enable/ Disable DIP Switch 2: LFP (Link Fault Pass) Enable/Disable DIP Switch 3: 1000Mbps / 100Mbps

Compact Industrial Gigabit IEEE 802.3bt Ethernet-to-Fiber Media Converter, 1*10/100/1000TX (PSE: 90W) to 1*100/1000 SFP

Ambient Relative Humidity : 5 to 95%, (non-condensing)
Dimensions (W x H x D) : 30 x 95 x 75 mm
Dip Switch : DIP Switch 1: PD Remote Reset Technology (PRRT) Enable/ Disable DIP Switch 2: LFP (Link Fault Pass) Enable/Disable DIP Switch 3: 1000Mbps / 100Mbps
EMI : FCC Part 15 Subpart B Class A, CE EN55022 Class A
EMS : IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field)
Fiber Port : 1*100/1000Base-(F)X SFP slots
Flow Control : IEEE 802.3x flow control, back pressure flow control
Free Fall / Shock / Vibration : IEC60068-2-32/IEC60068-2-27/IEC60068-2-6
Green : RoHS Compliant
Housing : Metal, IP30 protection

Power Consumption : 3 Watts for System
Processing Type : Store and Forward
Protocols : CSMA/CD
RJ45 Ports : 1*10/100/1000 Base-T(X) with IEEE 802.3bt PoE Auto-Negotiation, Full/Half Duplex, Auto-MDI/MDI-X
Standards : IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT IEEE 802.3z 1000Base-X Gigabit Fiber IEEE 802.3af/at/bt Power over Ethernet
Storage Temperature : -40°C ~ 85°C (-40°F ~ 185°F)
Wavelength : Depends on SFP modules
Weight : Unit Weight: TBD, Shipping Weight: TBD

Input Voltage : Dual 12-55VDC redundant power inputs
Jumbo Frame : 10Kbytes

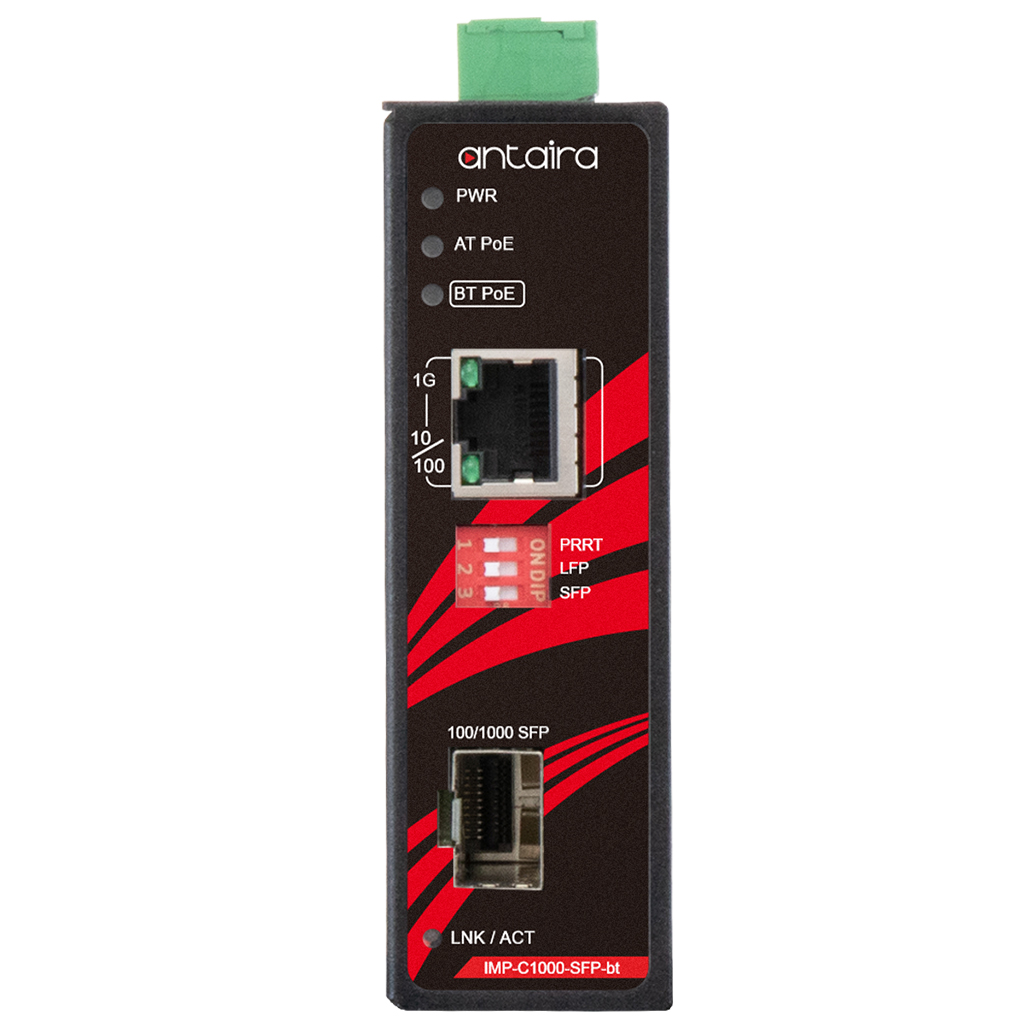

LED Indicators : Power Status LED, IEEE802.3af/at PoE Enabled LED, IEEE 802.3bt PoE Enabled LED Ethernet Ports: On-Link/Flash-data transmitting SFP: Link/Active
MAC Table Size : 8K
Max. PoE Power Budget : 90 Watts
Memory Buffer : 1Mbits

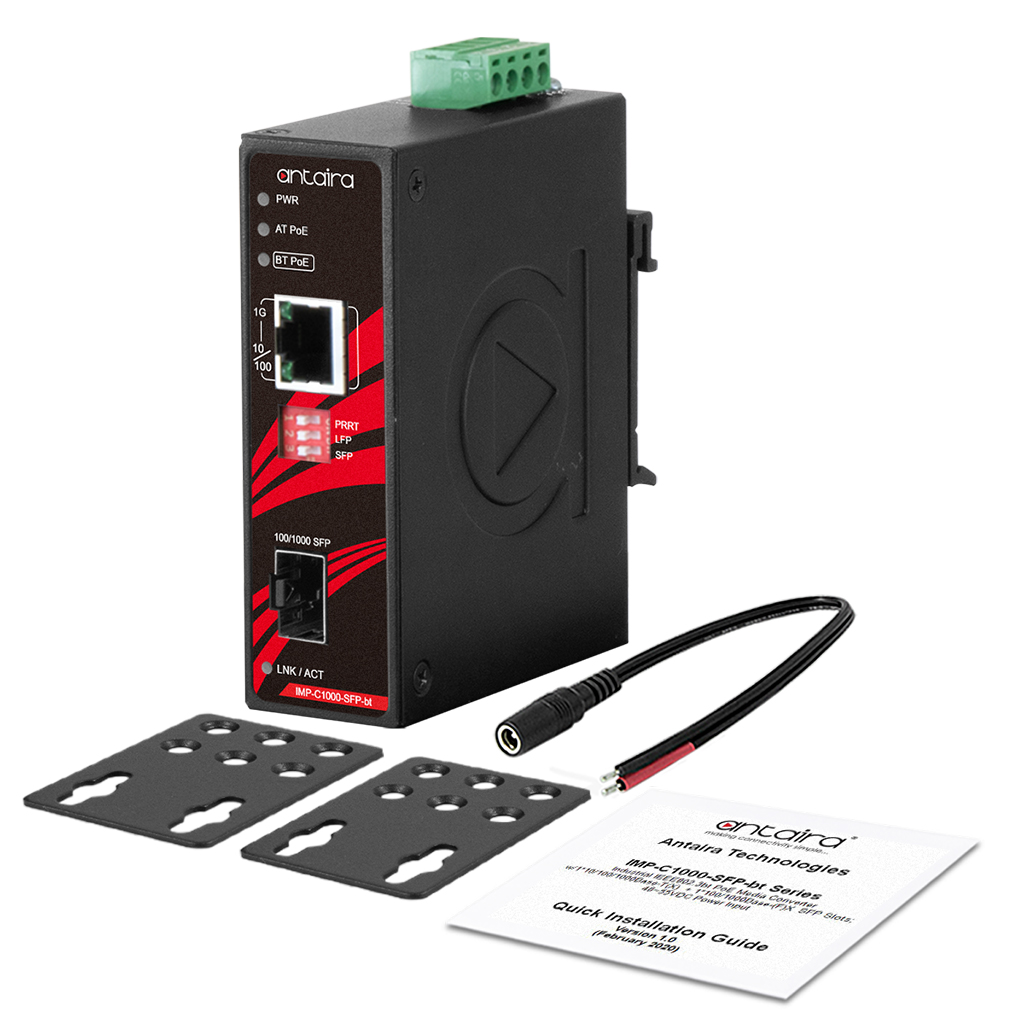

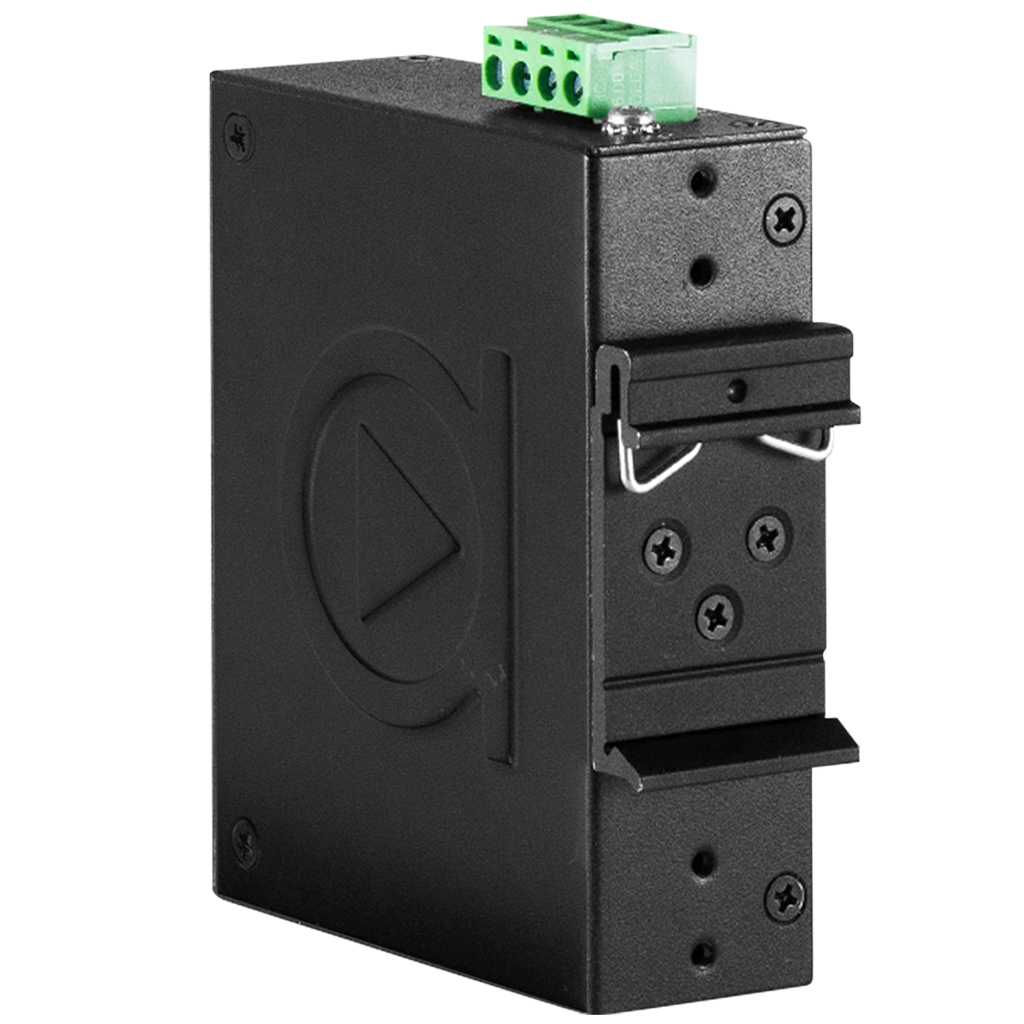

Mounting : DIN-Rail Mounting, Wall Mounting
Operating Temperature : -40°C ~ 80°C (-40°F ~ 176°F)
PoE Port Pin Assignment : V-, V-, V+, V+, for pin 1, 2, 3, 6; V+, V+, V-, V-, for pin 4, 5, 7, 8 *Support Modes: Mode A, Mode B, 4-Pair Mode
Power Connection : 1*removable 4-contact terminal block

Compact Industrial Gigabit IEEE 802.3bt Ethernet-to-Fiber Media Converter, 1*10/100/1000TX (PSE: 90W) to 1*100/1000 SFP
