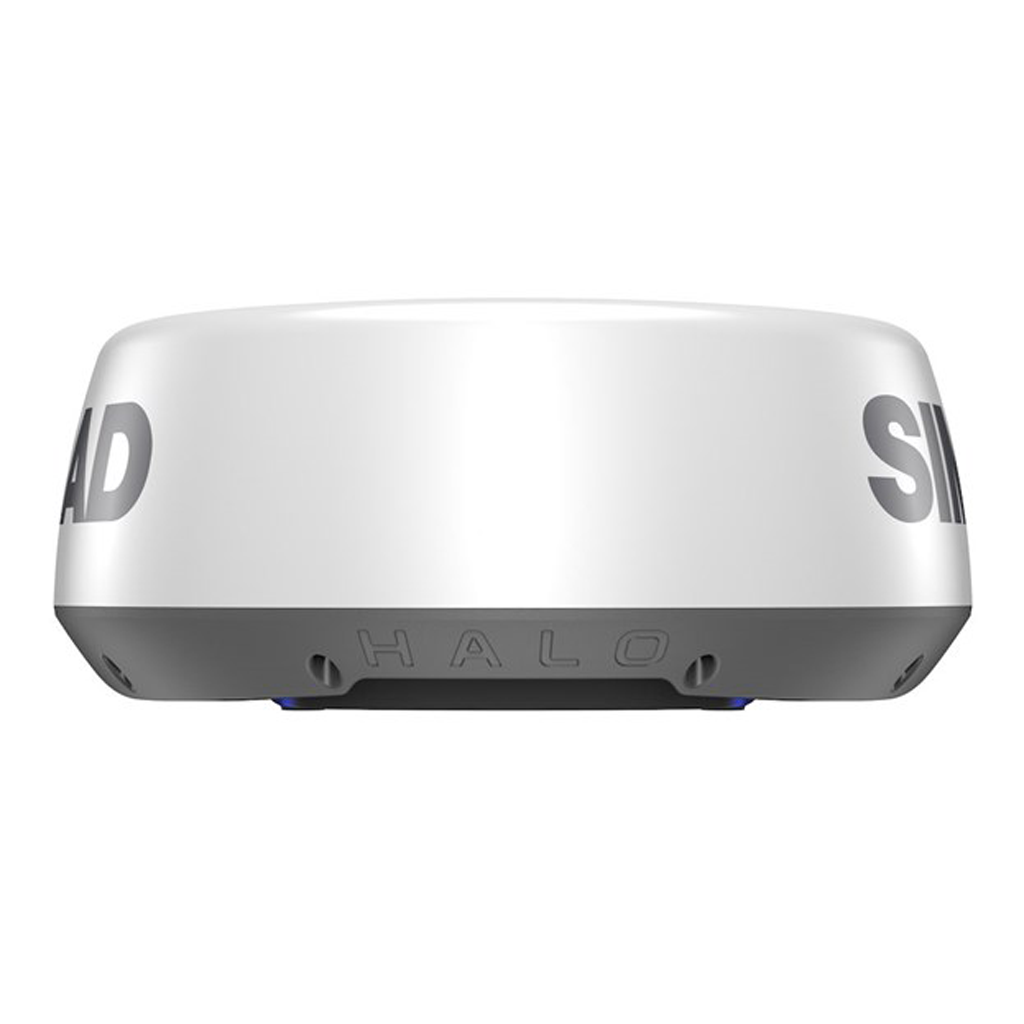

HALO 20 Plus Pals (CHIRP) Radar

Featured Information

Dimensions (W x H x D) :

610mm dia x 225 mm height

Weight :

6.75 kg (14.9 lbs) without cable

HALO 20 Plus Pals (CHIRP) Radar

PHYSICAL

Dimensions (W x H x D) : 610mm dia x 225 mm height
Weight : 6.75 kg (14.9 lbs) without cable

ENVIRONMENT

Humidity : 95% RH at 35°C (95°F)
Operating Temperature Range : -25° to + 55°C (-13° to +130°F)
Waterproofrating : IPX6

APPROVALS

Approvals Compliance : FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety

ELECTRICAL

Power Consumption max : 29W
Power Consumption typical : 20W
Recommended Fuse Rating : 5A
Supply Voltage : 10.5 - 31.2 VDC (12/24V systems)

CONNECTIVITY

Ethernet Ports : 100 Base T

RADAR

Beam Width : 3.9° H nonminal (-3dB) 2° with target separation on high x 22° V
Max Range, scale : 48 NM
Max Wind Speed : 100 knots (51 m/s)
Min Range, scale : 50 m / 200 ft / 50 yd
Radar Modes : Harbour, Offshore, Weather, Bird, Dual Range, North Up, Course Up, Relative motion, True Motion
Radar Technology : Pulse Compression
Rotation Speed : Up to 60 RPM (Range Dependent)

HALO 20 Plus Pals (CHIRP) Radar

The perfect radar solution for all boat models, the HALO 20+ offers high-quality detection over short, medium and long distances with its compact closed antenna. Keep a close eye on collision hazards and air cells with Dual Range. Halo 20+ Pals (CHIRP) radar's advanced Pulse Compression technology provides excellent separation between small or remote targets.
