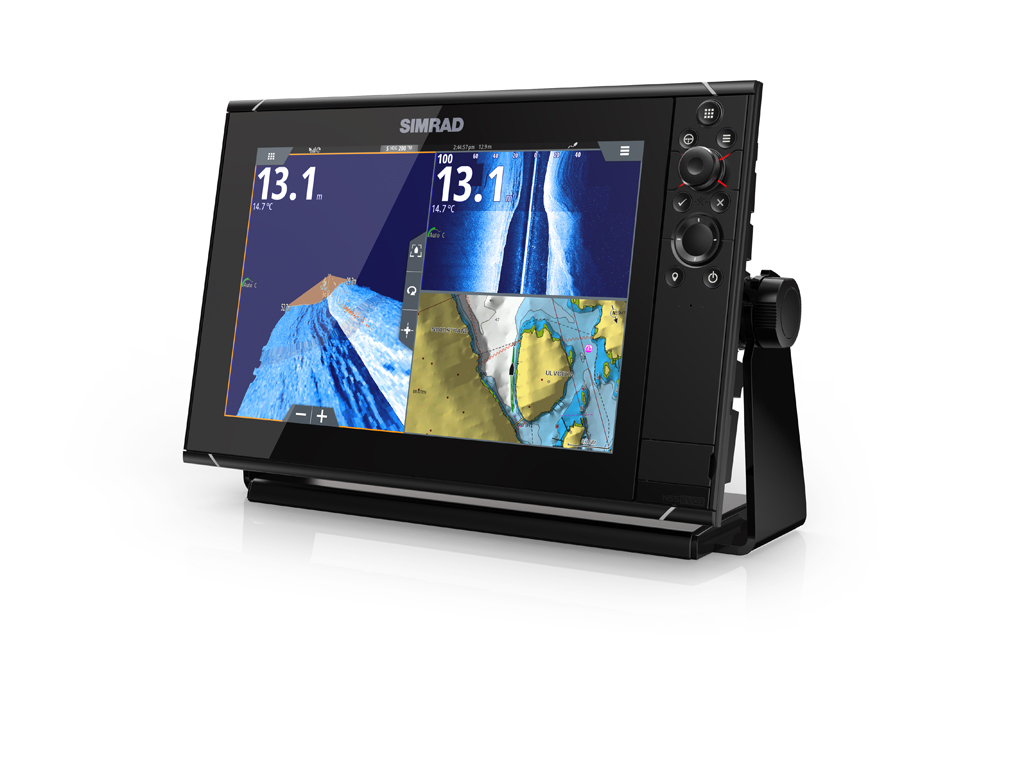

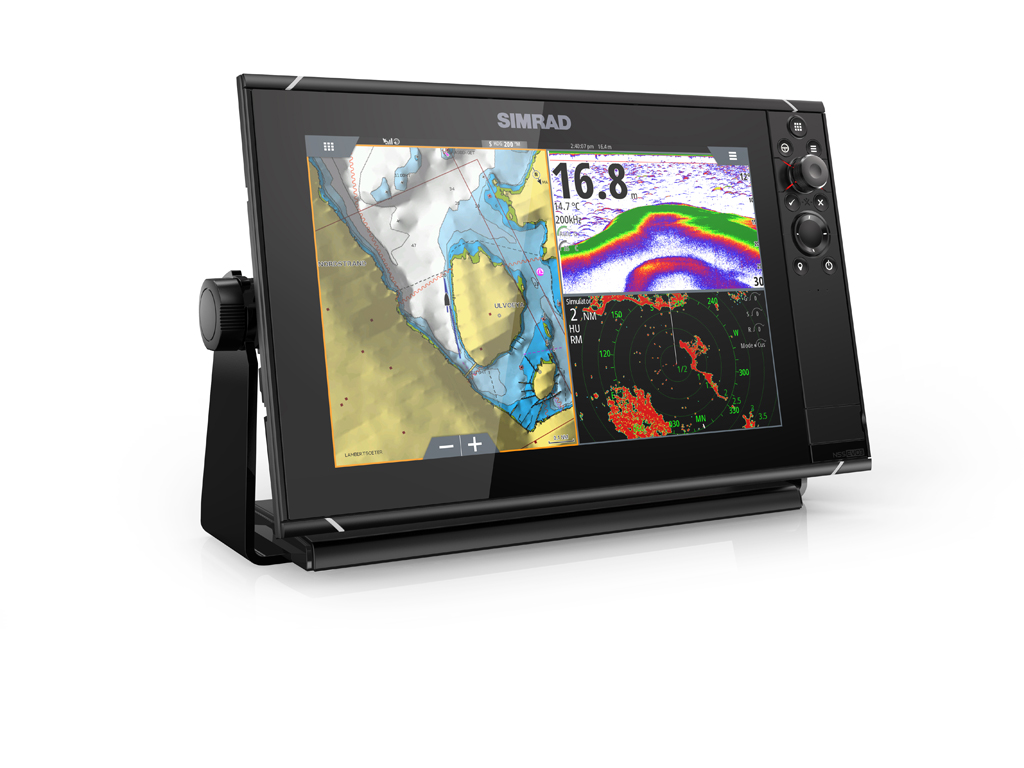

NSS12 Evo3s
Multifunctional Chartplotter
NSS12 Evo3s
Multifunctional Chartplotter
Featured Information
Backlight Color :
White
Display Resolution :
800 x 1280
Display Size :
12 inches
NSS12 Evo3s
Multifunctional Chartplotter
DISPLAY
- Backlight Color : White
- Display Resolution : 800 x 1280
- Display Size : 12 inches
- Viewing Angles : 80° top/bottom, 80° left/right
AUTOPILOT
- Manouevres Turn Patterns : U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
- Steering Modes : Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
ELECTRICAL
- Power Consumption max : 30 W
- Recommended Fuse Rating : 5A
- Supply Voltage : 10 - 31.2 V DC
GPS
- Correction : WASS, MSAS, EGNOS, GLONASS
- GPS Receiver Channels : 34 Channels
- Position Accuracy : Horizontal Accuracy 3 m (9.8 ft)
- Time to First Fix : Cold start 50 sec, Satellite Reacquisition 5 sec
- Update rate : 10 Hz
PHYSICAL
- Dimensions (W x H x D) : 352 x 225 x 98 mm (13.84 x 8.87 x 3.82 in)
- Mounting Type : Bracket (Supplied) or panel mount
- Weight : 3.1 kg (6.83lbs.)
CONNECTIVITY
- Bluetooth : Internal
- Ethernet Ports : 2 x 5 pin yellow connector x 10/100 Mbit
- Connectivity Wi Fi : Internal
- NMEA 0183 Sentences supported : Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
- NMEA 2000 Connectivity : 1 x NMEA 2000 Micro-C port, 1 LEN
- PC Connectivity : No
- SD Card Storage : 2 Micro SD slots, max. 32GB each. Larger if formatted to NTFS
- Video : 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). HDMI output
APPROVALS
- Approvals Compliance : CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.2
ENVIRONMENTAL
- Operating Temperature Range : -15°C to +55°C (5° F to 131° F)
- Storage Temperature Range : -20°C to +60°C (4°F to 140°F)
- Waterproofrating : IPX6 and 7
MFD
- AIS : Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors)
- Autopilot : Full auto pilot control and commissioning
- Cartography included : C-MAP
- Digital Switching : C-zone, Naviop
- GPS : Internal
- Internal Storage : 16 GB
- Multimedia : via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
- Sonar Compatibility : Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 kHz, HDI. Sonar port 2: Single channel CHIRP, 50/200 kHz, Active Imaging, TotalScan, LSS HD, ForwardScan. Compatible with: S5100, SonarHub, BSM-3, BSM-2, network echo sounders
- Waypoints, Routes, Track : 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
- Weather : SiriusXM via WM-4 / WM-3 (USA only), GRIB
OTHER
- Interface : Full touch screen (multi-touch ) and full keypad control, OP50 remote controllers
- Languages : Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishOther languages supported by Unlock:Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic, Farsi
NSS12 Evo3s
Multifunctional Chartplotter
Navigation is now much more enjoyable with the unprecedented new features of NSS evo3 Chartplotter... SolarMAX ™ HD display technology offers exceptional clarity and ultra wide viewing angle in all weather conditions. Extended keypad provides more convenient use. Navigate with confidence with ForwardScan sonar or make catching fish easy with StructureScan® HD imaging and dual-channel CHIRP-enabled Broadband Sounder™ technology. Built-in Wi-Fi gives you access to GoFree® online services and allows you to monitor & control your chartplotter from your smartphone.
