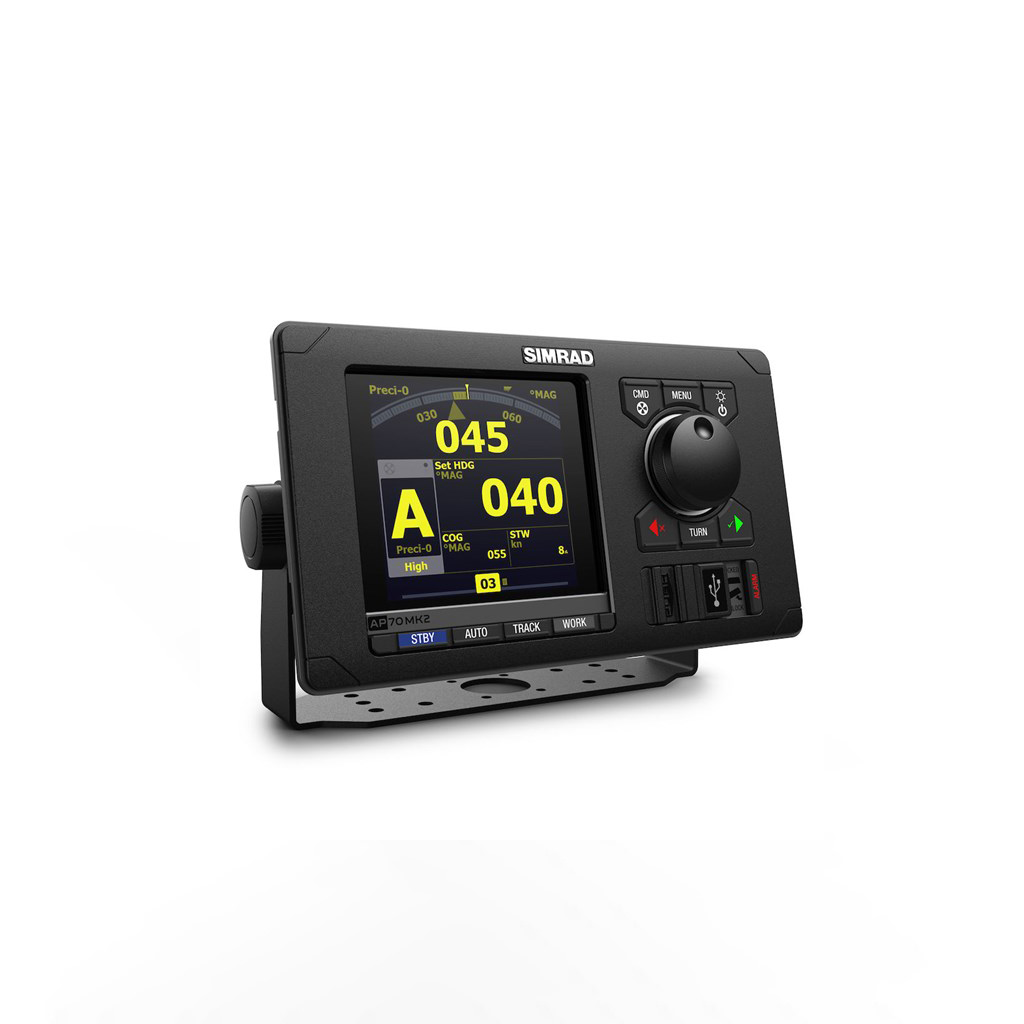

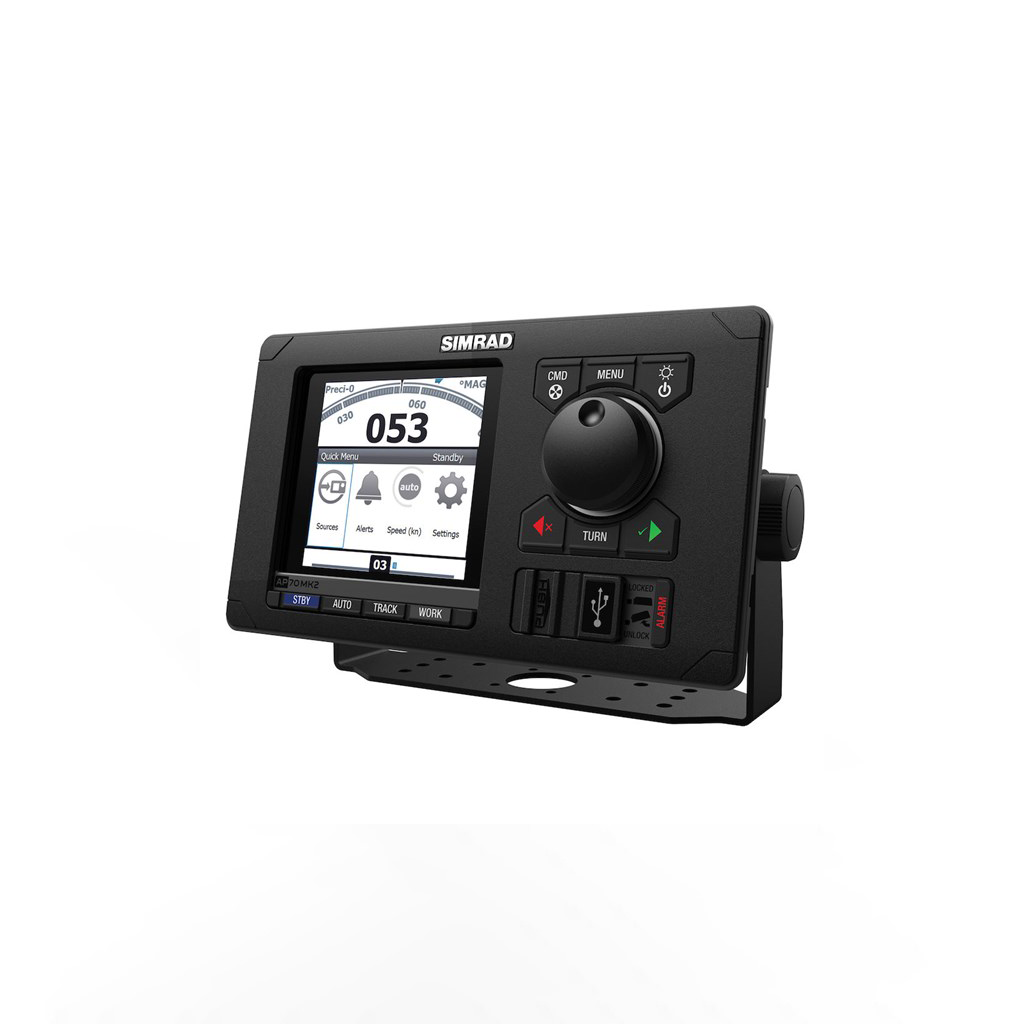

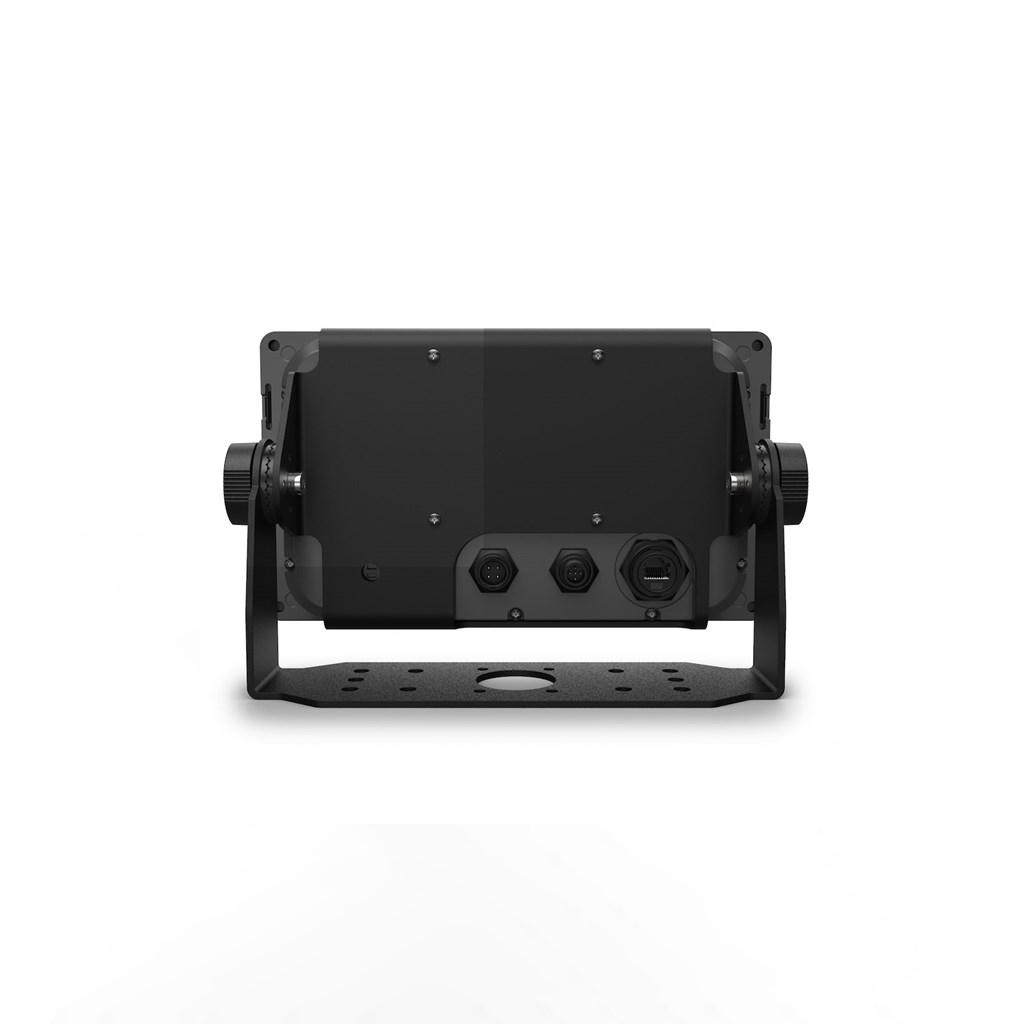

AP70 MK2 Autopilot Control Unit
AP70 MK2 Autopilot Control Unit
Featured Information
Wheelmarked for use on SOLAS vessels
Advanced configuration and tuning options to suit all ships
Compatible with all common rudder/drive types
AP70 MK2 Autopilot Control Unit
FEATURES :
- Wheelmarked for use on SOLAS vessels
- Advanced configuration and tuning options to suit all ships
- Compatible with all common rudder/drive types
- Up to 6 rudders/thrusters integration
- Heavy-duty rudder feedback support
- Configurable work modes and low/high speed modes
- No Drift steering holds course against wind and tide
- Navigation steering, route following
- Command transfer and multiple control stations support
- Product Dimensions (WxHxD) : 253 x 144 x 54 mm
- Product Weight : 1.4 Kg
- Operating Temperature : -30°C to +55°C
- Storage Temperature : -25°C to +70°C
- Waterproof Rating : IPX6
- System Voltage : 12VDC (NMEA2000)
- Resolution : 480 X 480
- Viewing Angle : 170°
AP70 MK2 Autopilot Control Unit
The AP70 Mk2 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels. Replacing both the AP70 and AP80 as our IMO/SOLAS autopilot controller, the AP70 Mk2 retains much of the well-reputed platform of its predecessors, but with a brilliant new display and modernised software interface. Engineered for responsiveness, robustness and ease of use, the AP70Mk2 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, several custom-configurable work modes and multiple rudder/thruster integration.
