LNX-800AG
LNX-800AG
Featured Information
Supports 8-Port 10/100/1000Tx RJ45 Fast Ethernet
Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
LNX-800AG
FEATURES :
- Supports 8-Port 10/100/1000Tx RJ45 Fast Ethernet
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 1.6Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection: 3,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 12~48VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10°C to 70°C
- 5-Year Warranty
LNX-800AG

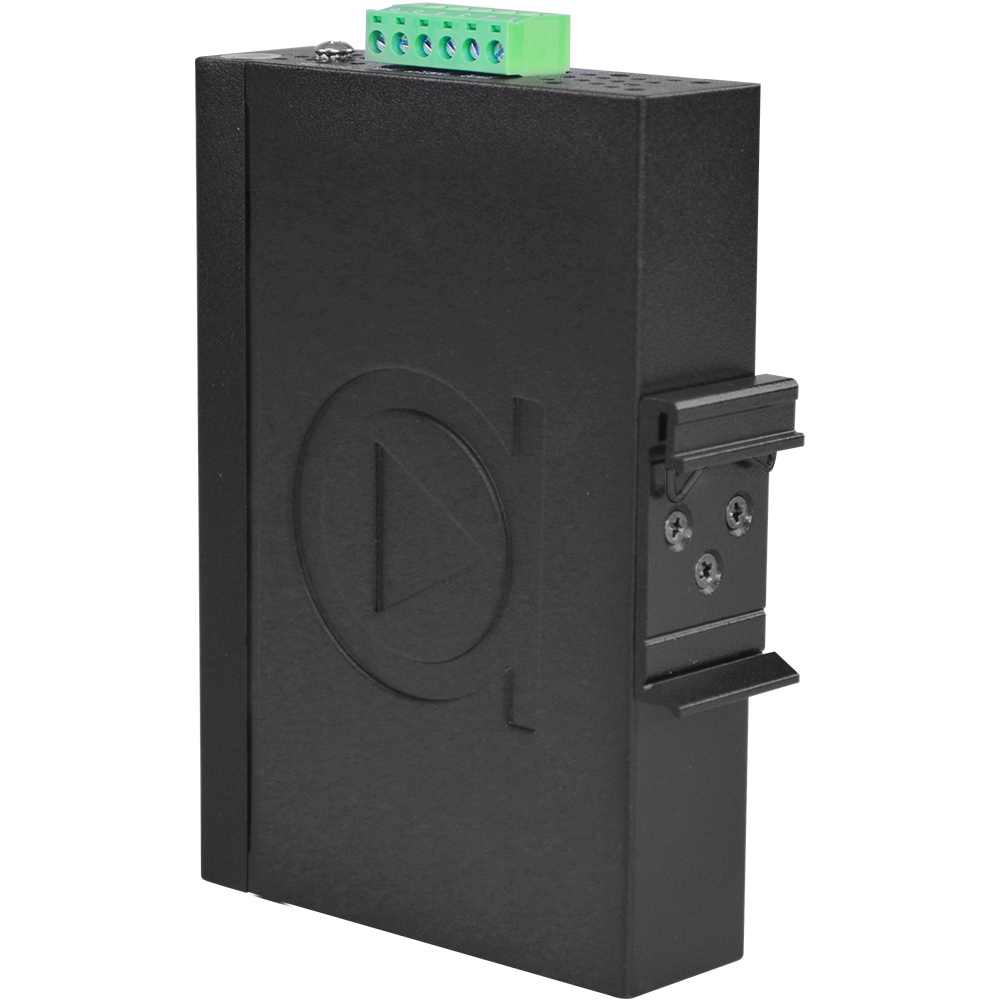

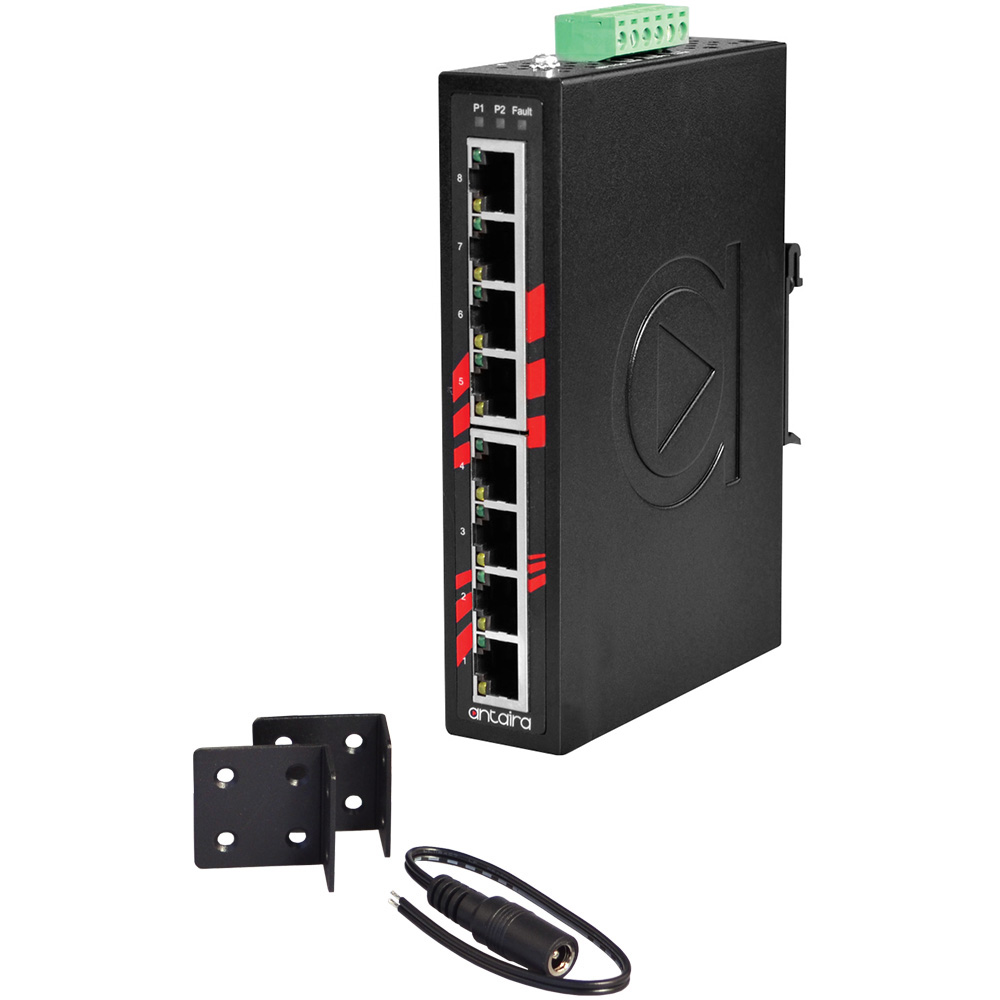

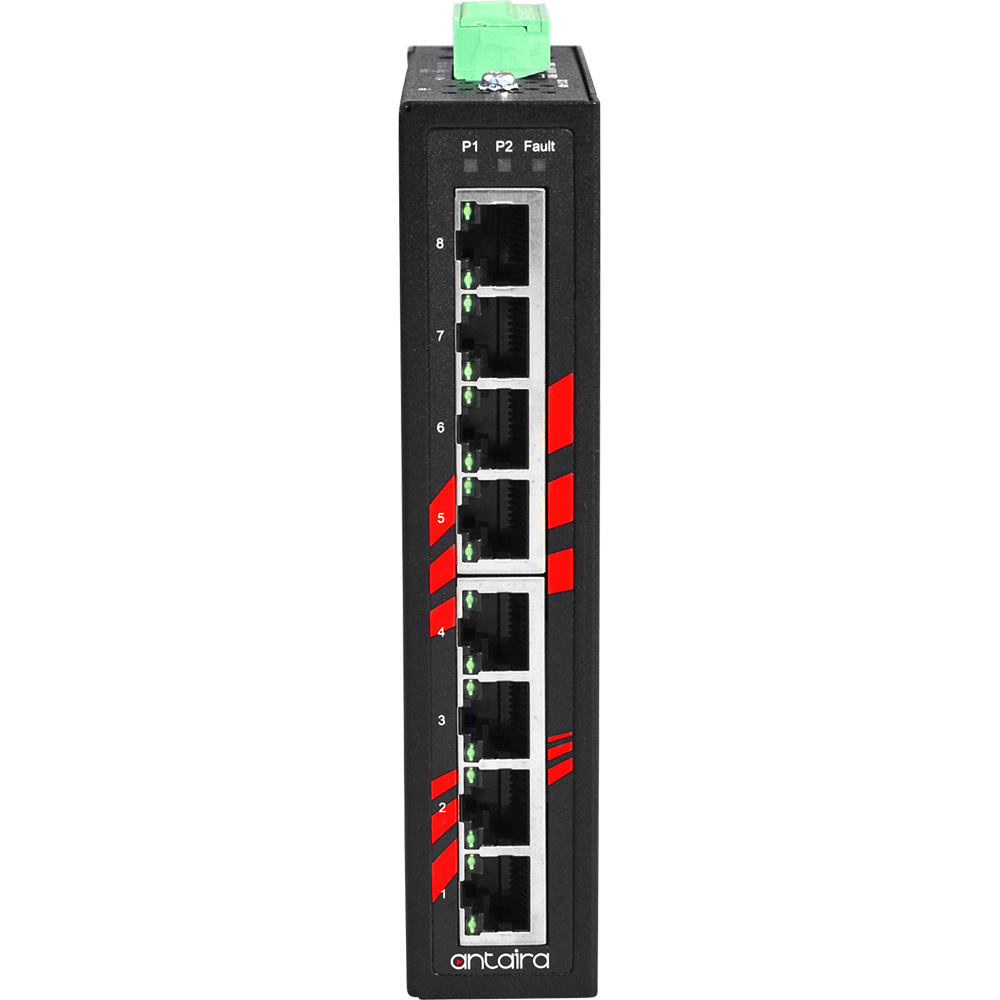

Antaira Technologies’ LNX-800AG industrial Gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable with 8*10/100/1000Tx, making it ideal for applications that demand a high bandwidth connectivity solution. This series provides a high EFT and ESD protection that has a dual power input with a reverse power polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur. There is a standard operating temperature model that supports -10°C to 70°C. The LNX-800AG is an ideal solution for harsh outdoor weather environments and industrial applications.
