LNP-C501G-SFP-bt-24
5-Port Compact Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch, ...
LNP-C501G-SFP-bt-24
5-Port Compact Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch, 4*10/100/1000TX (90W/Port), 1*100/1000 S
Featured Information
Ambient Relative Humidity :
5 to 95%, (non-condensing)
Certifications :
FCC, CE
Dimensions :
64.9 x 110 x 89.8 mm (W x H x D)
LNP-C501G-SFP-bt-24
5-Port Compact Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch, 4*10/100/1000TX (90W/Port), 1*100/1000 S
SPECIFICATIONS
- Ambient Relative Humidity : 5 to 95%, (non-condensing)
- Certifications : FCC, CE
- Dimensions : 64.9 x 110 x 89.8 mm (W x H x D)
- Dip Switch : PoE Switch: Control PoE Function by Port DIP Switch 1: PD Remote Reset Technology (PRRT) Enable/Disable DIP Switch 2: SFP Speed (1000Mbps/100Mbps)
- EMI : FCC Part 15 Subpart B Class A, CE EN55032/EN61000-6-4 Class A
- EMS : CE EN55035/EN61000-6-2, IEC61000-4-2,3,4,5,6,8
- Ethernet Port : 4*10/100/1000Base-TX (90W/Port), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Flow Control : IEEE 802.3x flow control, back pressure flow control
- Housing : Metal, IP40 protection
- Input Voltage : 9~55VDC Redundant Input
- Processing Type : Store and Forward
- Protocols : CSMA/CD
- Relay Contact : 24VDC, 1A resistive
- Reverse Polarity Protection : Present
- SFP Port : 1*100/1000 SFP Slot
- Standards : IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000BaseT Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber IEEE 802.3af/at/bt Power over Ethernet
- Storage Temperature : -40°C ~ 85°C
- Switching Architecture : Switching Fabric (Back-Plane): 10Gbps
- System Power Consumption : 4.6 Watts
- Transfer Rate : 14,880pps for Ethernet 148,800pps for Fast Ethernet 1,488,000pps for Gigabit Ethernet
- Jumbo Frame : 10 Kbytes

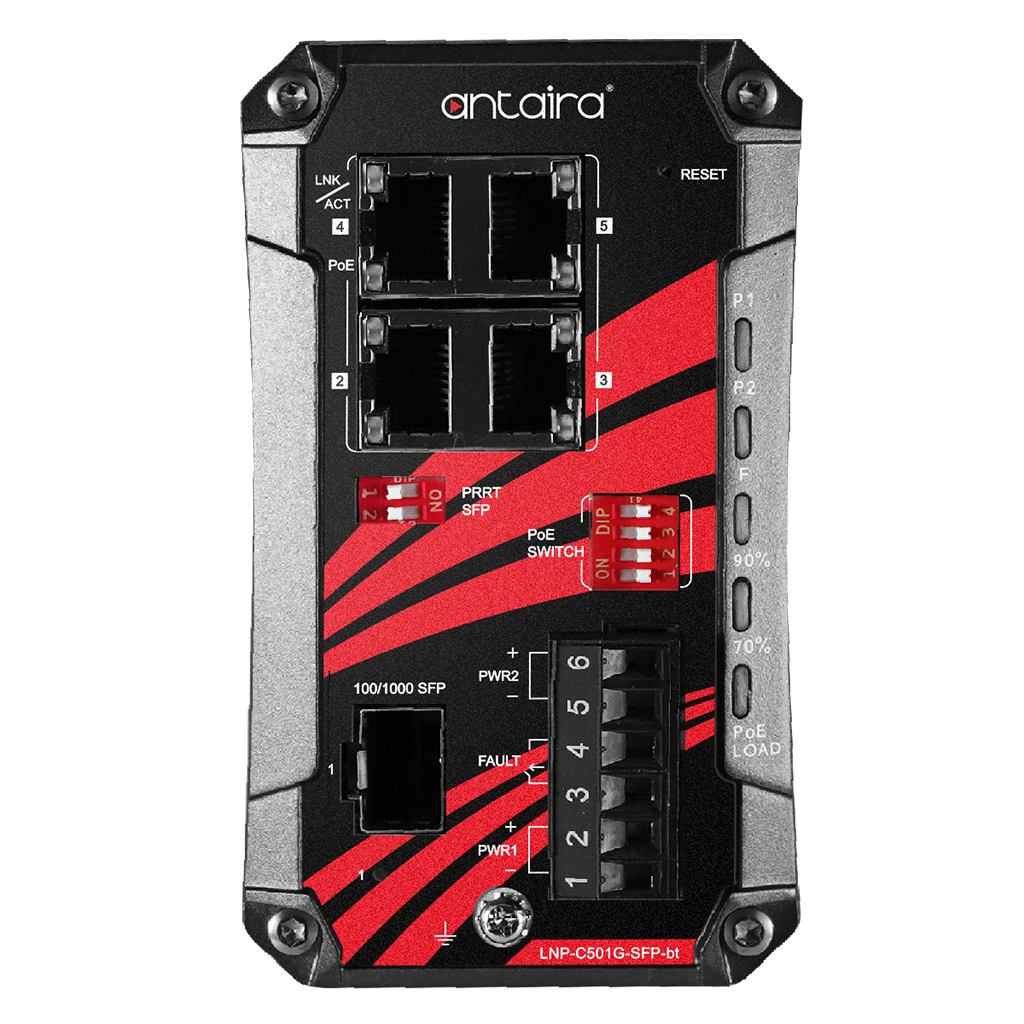

- LED Indicators : System: Power 1, Power 2, Fault PoE Load: 70%, 90% Ethernet ports: Speed/Link/Active PoE: On-connected to PD devices SFP: Speed/Link/Active
- MAC Table Size : 8K
- Memory Buffer : 1 Mbit
- Mounting : DIN-Rail mounting, Wall mounting
- Network Cable : 10BaseT: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m) 100BaseTX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m) 1000BaseTX: UTP/STP Cat. 5/5E cable; EIA/TIA-568 100-ohm (100m)
- Operating Temperature : STD: -10°C to 65°C
- Overload Current Protection : Present (Slow-Blown Fuse)
- Poe Pin Assignment : V-, V-, V+, V+ for pin 1, 2, 3, 6 V+, V+, V-, V- for pin 4, 5, 7, 8 *Support Modes: Mode A, Mode B, 4-Pair Mode
- PoE Power Budget : 60W @ 9V 90W @ 12V 150W @ 24V 240W @ 48~55V
- Warranty : 5 Years
- Weight : Unit: 0.70 lb Shipping: 1.00 lb
LNP-C501G-SFP-bt-24
5-Port Compact Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch, 4*10/100/1000TX (90W/Port), 1*100/1000 S

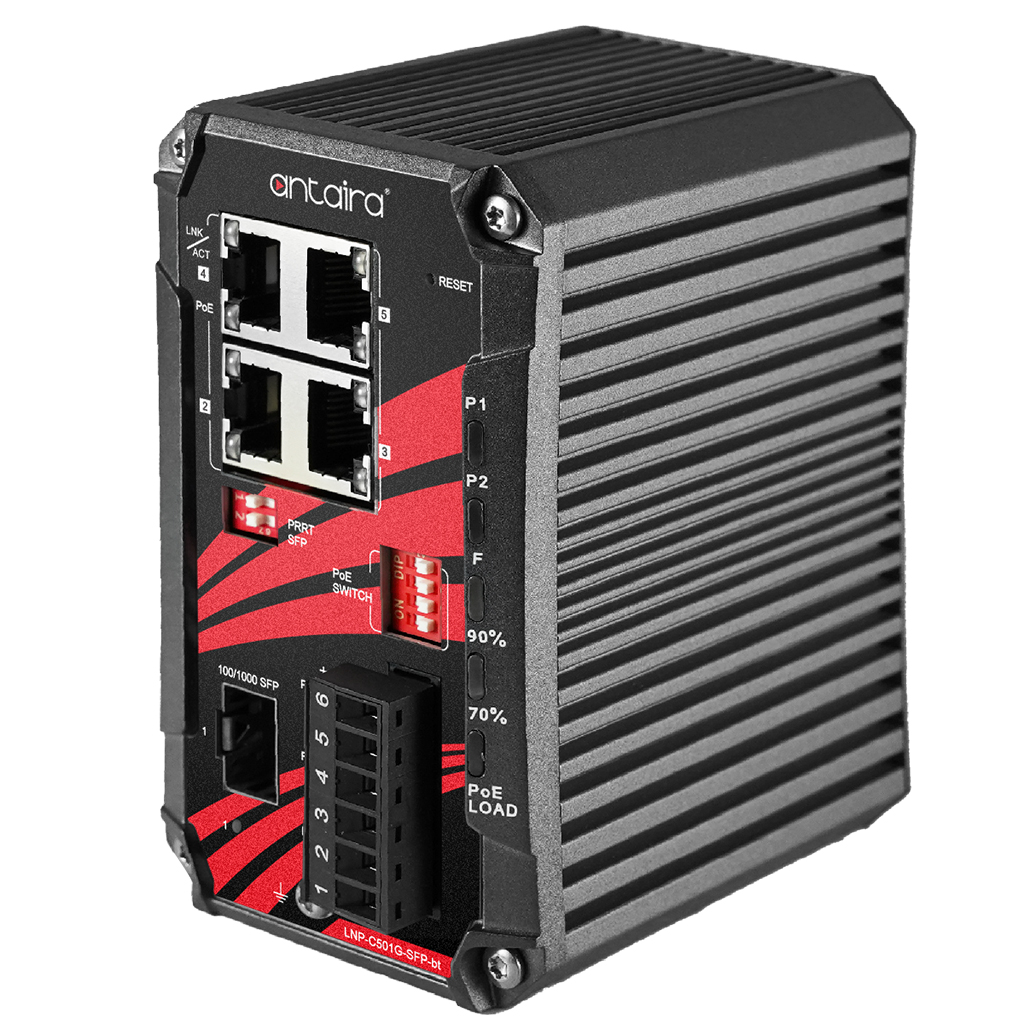

Antaira Technologies’ LNP-C501G-SFP-bt-24 is a 5-port industrial compact Gigabit PoE++ unmanaged Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE802.3bt for a maximum of 90W/port, and 1*100/1000 dual rate SFP slot for fiber connection. The LNP-C501G-SFP-bt is IP40 rated and DIN-rail mountable. There are a standard temperature range (STD: -10°C to 65°C). It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, and any other outdoor or harsh environment.
