Featured Information

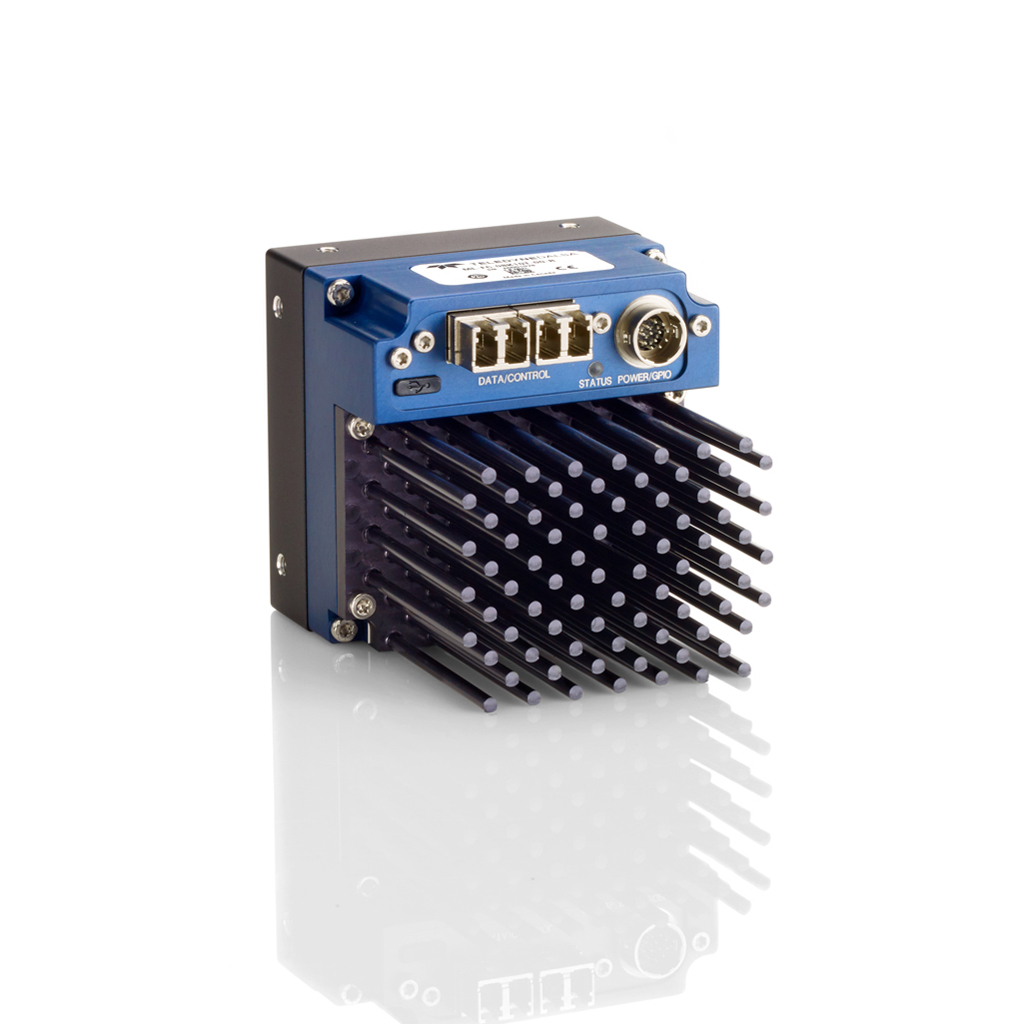

Linea HS 32k 400 kHz
Features :
- Part Number : HL-HM-32k40S-00-R
- Resolution : 32768x64
- Spectrum : Mono
- Interface : Camera Link HS
- Pixel Size : 5 µm
- Max Line Rate : 400 kHz
- Total Pixels : ~ 33 bin
- Bit Depth : 8 bit
- Operating Temperature : 0—60 °C
- Supported Lens Options : M90x1
- Power Requirement : 28W
- General Purpose I/O : Hirose 12-pin
- Dimensions (W x H x L) : 9 97 x 140.5 x 78.6 mm
- Mass : 1200 g
Linea HS 32k 400 kHz
The Linea HS brings your imaging system the speed and power of the PCIe Gen 3 platform when paired with Xtium2. Leveraging the high efficiency of the CameraLink HS interface's X-protocol, the Xtium2 CLHS PX8 supports Active Optical Cable (AOC) and industry standard CX4 cables with up to 7-CLHS lanes, each operating at 10.3 Gbits/s, to acquire images at up to 8.4 GBytes/s. The Xtium™2 CLHS FX8 builds in native fiber optic connectors, supporting up to four bidirectional SFP+ modules to deliver aggregate bandwidth of 4.8 GBytes/s, all in a compact, half-length, single slot solution. With slim, robust, and cost effective fiber optic cabling, Linea HS and Xtium2 allow cable lengths beyond 100 meters to enable the newest and most demanding vision applications.
