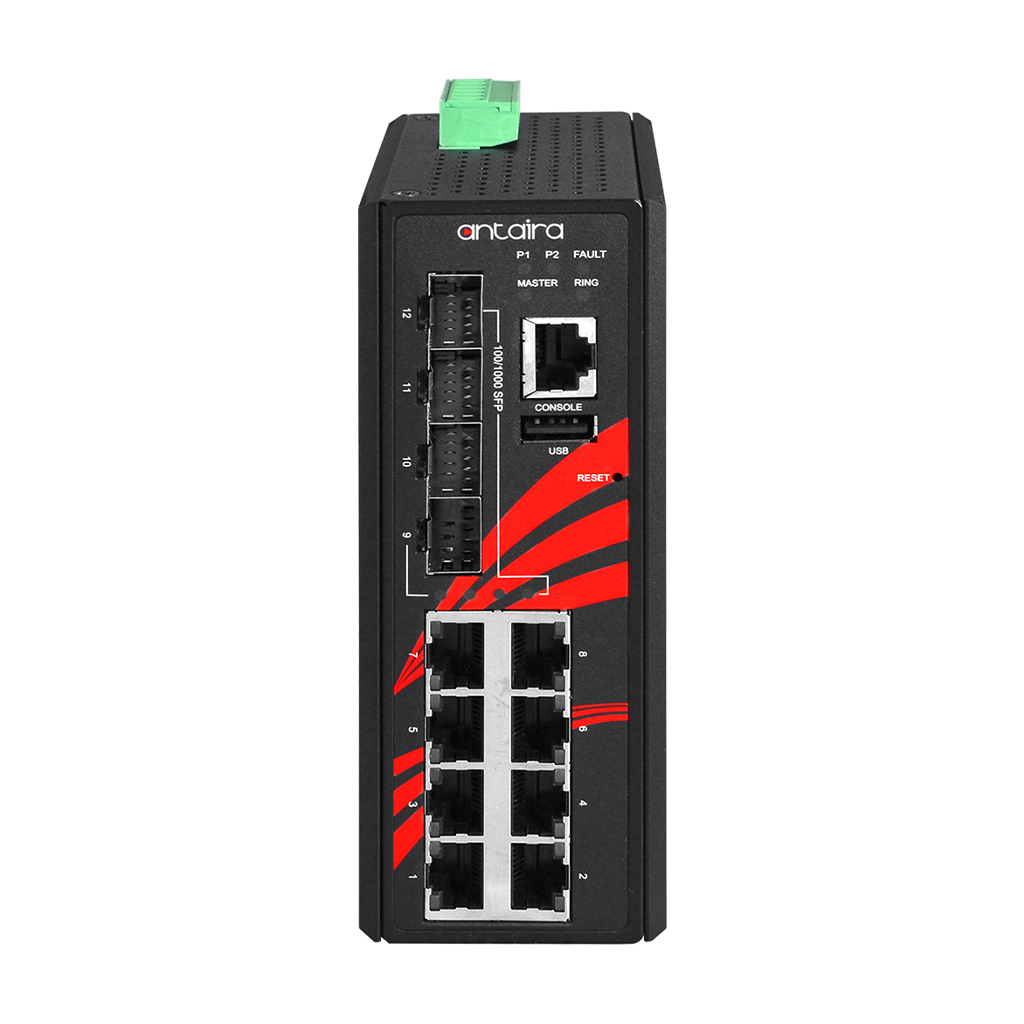

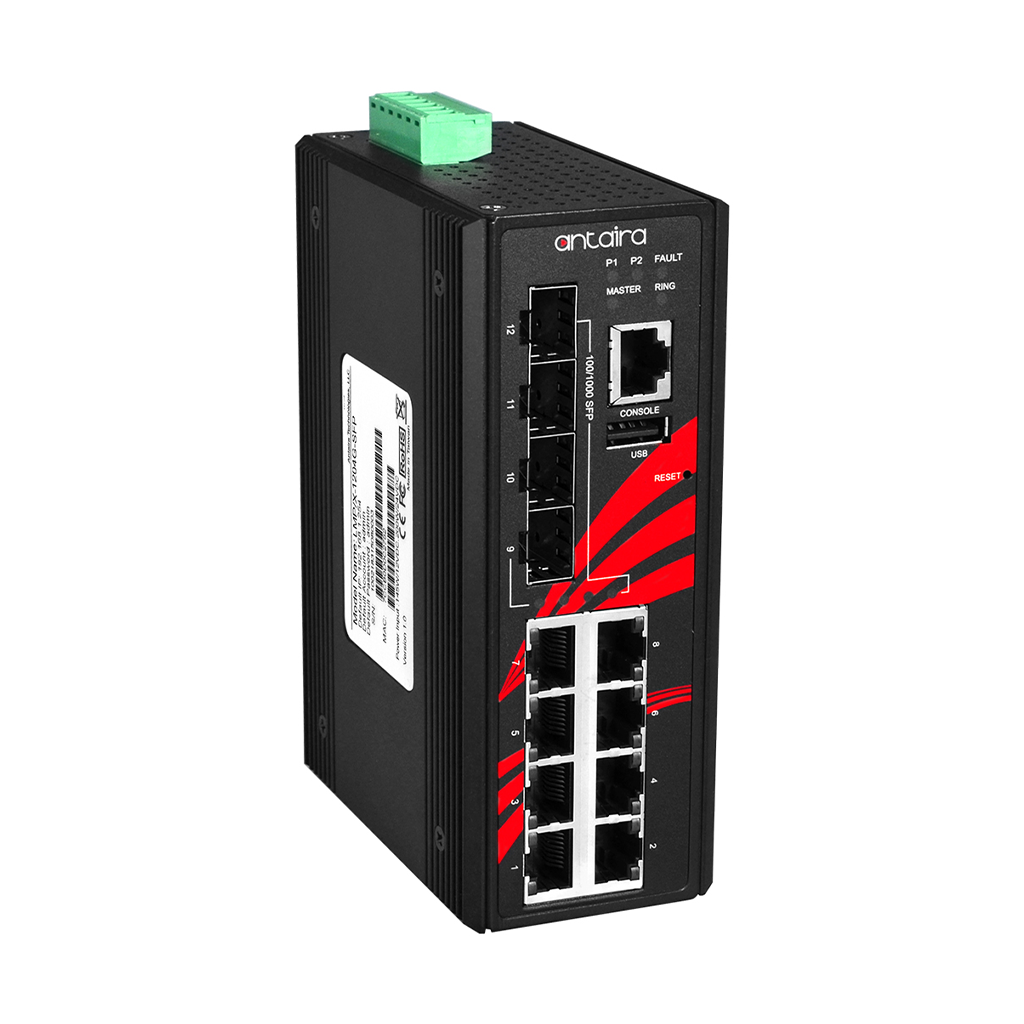

LMX-1204G-SFP-T-CC

12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, w/8*10/100/100...
LMX-1204G-SFP-T-CC
12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, w/8*10/100/1000Tx + 4*100/1000 SFP; EOT: -40 to 75C wi

Featured Information

Conformal Coated
Supports 8*10/100/1000Tx Fast Ethernet Ports and 4*100/1000 SFP Slots
Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
Product thumb
LMX-1204G-SFP-T-CC
12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, w/8*10/100/1000Tx + 4*100/1000 SFP; EOT: -40 to 75C wi

FEATURES

  • Conformal Coated
  • Supports 8*10/100/1000Tx Fast Ethernet Ports and 4*100/1000 SFP Slots
  • Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
  • Configuration: Web Console, Telnet, CLI Command
  • Supports IGMP v1/v2, up to 256 Groups
  • Supports QoS (IEEE802.1p) and CoS/ToS
  • Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
  • System Warning Setting for Automatic Warning through E-Mail
  • Redundant Power Input Design – 12~48VDC

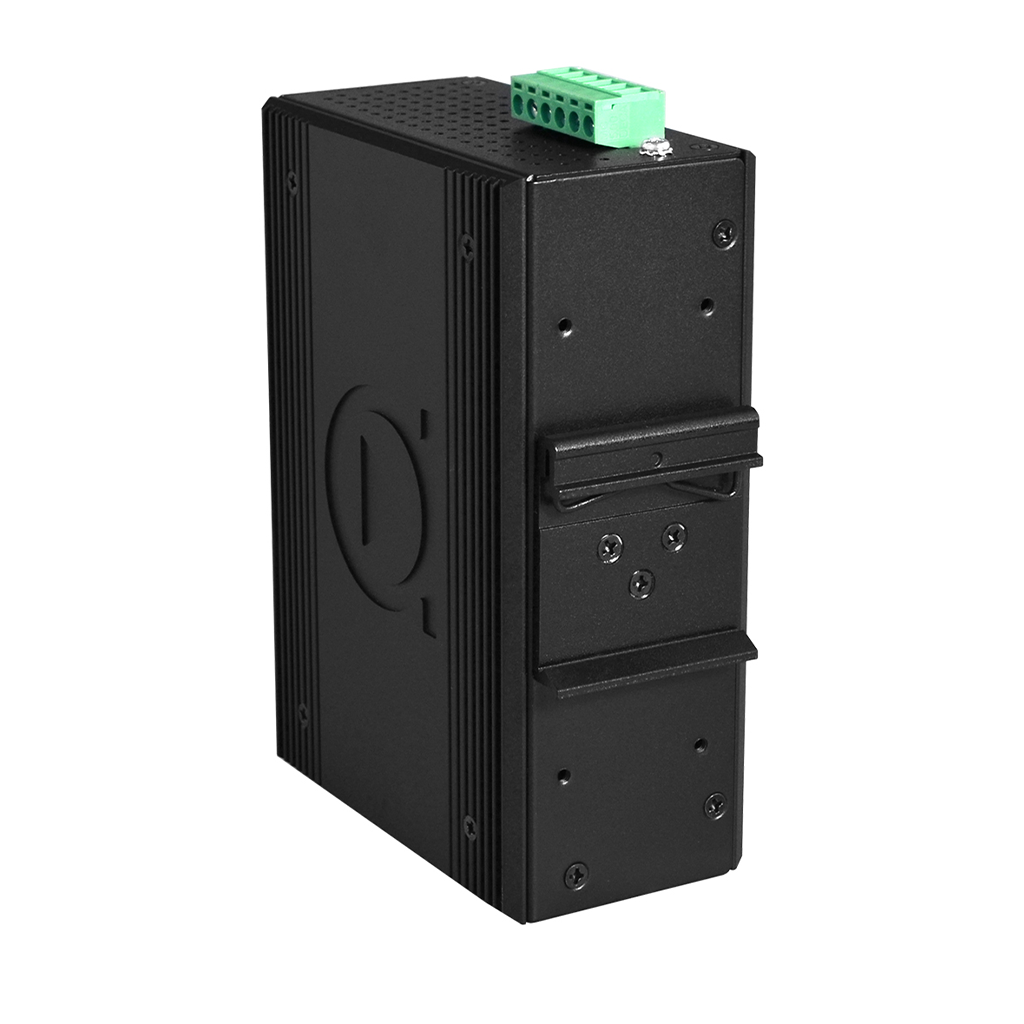

  • Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support

  • Weight :  Unit: 2.2 lbs.; Shipping: 3.0 lbs.
  • Input Voltage & Connection :  12~48VDC Redundant Input / 1 removable 6-contact terminal block
  • Power Consumption :  15 Watts
  • Standards :  IEEE 802.3 / 802.3u / 802.3x / 802.3ad, IEEE 802.1d / 802.1w / 802.1s / 802.1Q / 802.1X / 802.1p ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
  • Protection :  Power line EFT: 2,000VDC; Ethernet ESD: 6,000VDC Overload Current, Power Reverse Polarity, CPU Watchdog
  • Dimensions :  54 x 142 x 99 mm
  • Operating Temperature :  -40 to 75°C
  • EMI :  FCC Class A
  • EMS :  IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4
  • Shock/Vibration/Free Fall :  IEC60068-2-27 / 2-6 / 2-32

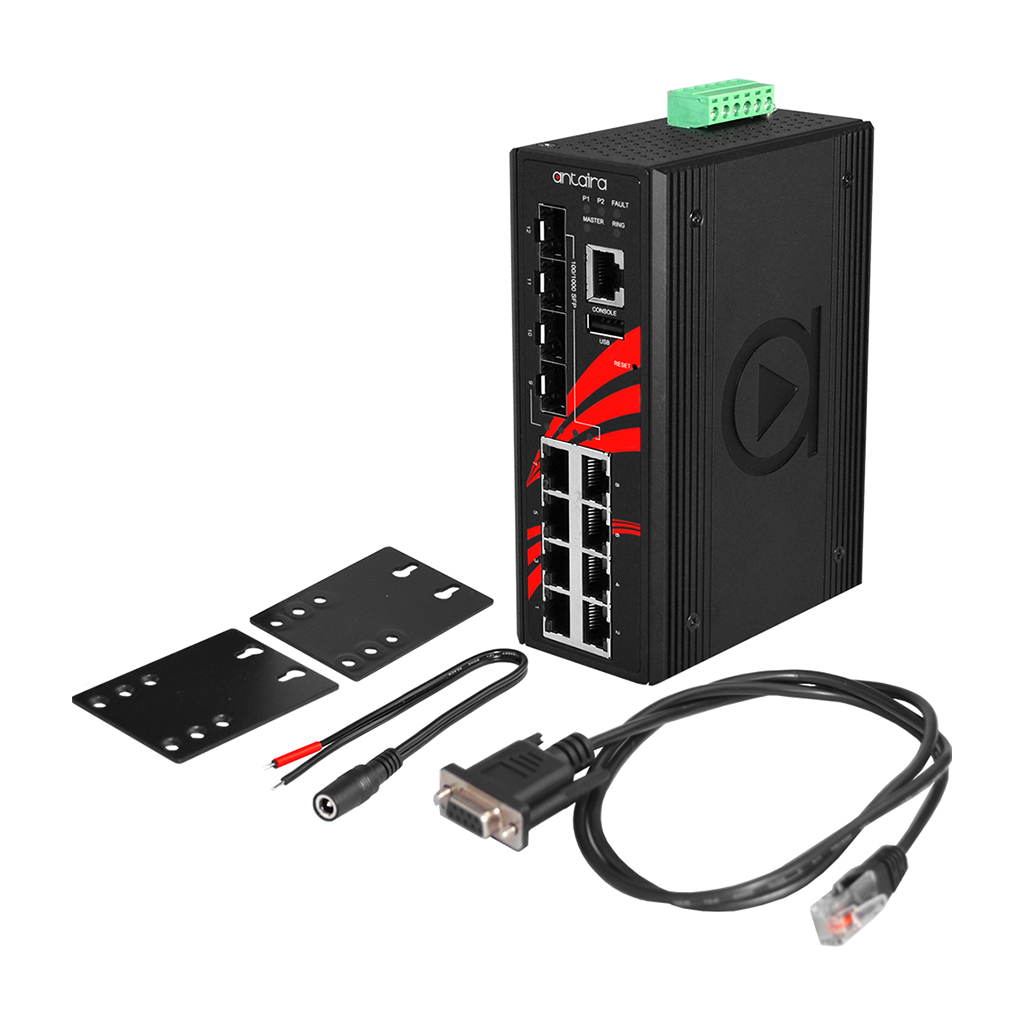

INCLUDED

  • 1 - LMX-1204G-SFP-T-CC
  • 1 - DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
  • 2 - Wall Mounting Brackets and Screws
  • 1 - RJ45 to DB9 Serial Console Cables

SPESIFICATIONS

  • Jumbo Frame :  9.6K
  • Protocols :  IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
  • VLAN :  1 - 4094
  • IGMP :  Up to 256 Groups
  • Ethernet Port :  8*10/100/1000BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
  • Fiber Port :  4* 100/1000 SFP Slots
  • Wavelength :  Refer to SFP Modules
  • Serial Console :  1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
  • Configuration Back Up :  1*USB 2.0
  • Housing / Mounting :  Metal IP30 rated / DIN-Rail & Wall-Mount (optional)

  • Green :  RoHS Compliant
  • Certifications :  FCC, CE, UL 61010-1, 61010-2-201, NEMA TS2, Class 1 Div 2, ATEX
  • Warranty :  5 Years

Product thumb
LMX-1204G-SFP-T-CC
12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, w/8*10/100/1000Tx + 4*100/1000 SFP; EOT: -40 to 75C wi

Antaira’s LMX-1204G-SFP-T-CC is a 12-port industrial gigabit Light Layer 3 managed Ethernet switch that is embedded with 8*10/100/1000Tx Fast Ethernet ports and four dual rate (100/1000X) SFP slots. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. It supports Jumbo Frame and wide bandwidth for data transmission and has sufficient port counts for any edge level connectivity solutions. The LMX-1204G-SFP-T has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -40°C to 75°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, or any other outdoor or harsh environment and is conformally coated
