LMX-0804G-SFP
8-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, w/4*10/100/1000...
LMX-0804G-SFP
8-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, w/4*10/100/1000Tx Ports + 4*100/1000Fx SFP Fiber Slots.
Featured Information
Network Broadcast Storm Protection
Supports 4*10/100/1000Tx Gigabit Ports + 4*100/1000Fx SFP Slots
Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
LMX-0804G-SFP
8-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, w/4*10/100/1000Tx Ports + 4*100/1000Fx SFP Fiber Slots.
FEATURES
- Network Broadcast Storm Protection
- Supports 4*10/100/1000Tx Gigabit Ports + 4*100/1000Fx SFP Slots
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
- Configuration: Web Console, Serial, CLI Command
- Supports IGMP v1/v2
- Supports QoS (IEEE 802.1p) and CoS/ToS
- Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
- Redundant Power Input Design 12~48VDC + Built-in relay output for Port Break Alarm
- System Warning Setting for Automatic Warning through E-mail
- DIN-Rail and Wall Mount Support
OTHERS
- Serial Console : 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
- Fiber Port : 4*100/1000 Dual Rate SFP Fiber Ports
- Ethernet Port : 4*10/100/1000BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI connection
- Configuration : Web Console, Telnet, CLI
- Jumbo Frame : 9.6K
- VLAN : 1 ~ 4094
- IGMP : Up to 256 Groups
- Configuration Back Up : 1*USB 2.0
- Protection : Power line EFT: 2,000VDC; Ethernet ESD: 6,000VDC Overload Current, Power Reverse Polarity, CPU Watchdog

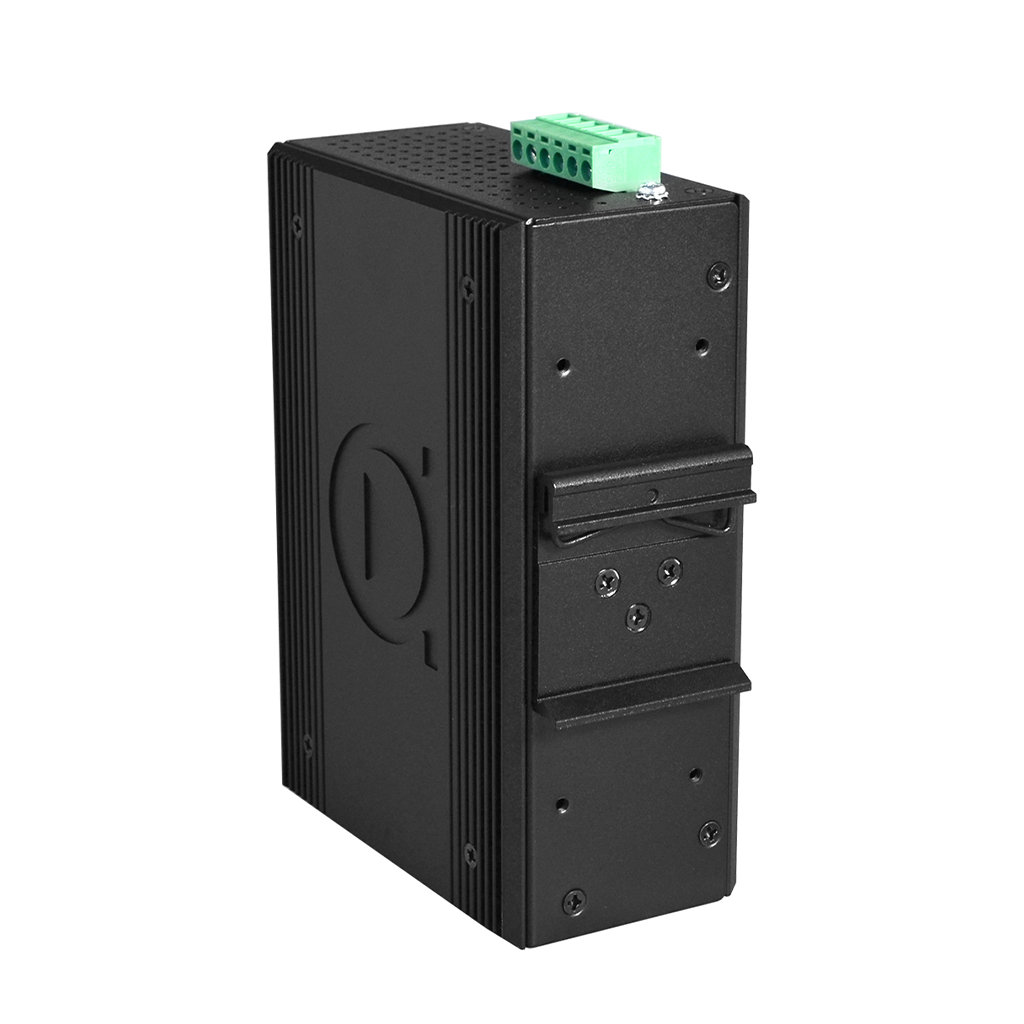

- Housing / Mounting : Metal IP30 rated / DIN-Rail & Wall-Mount (Included)

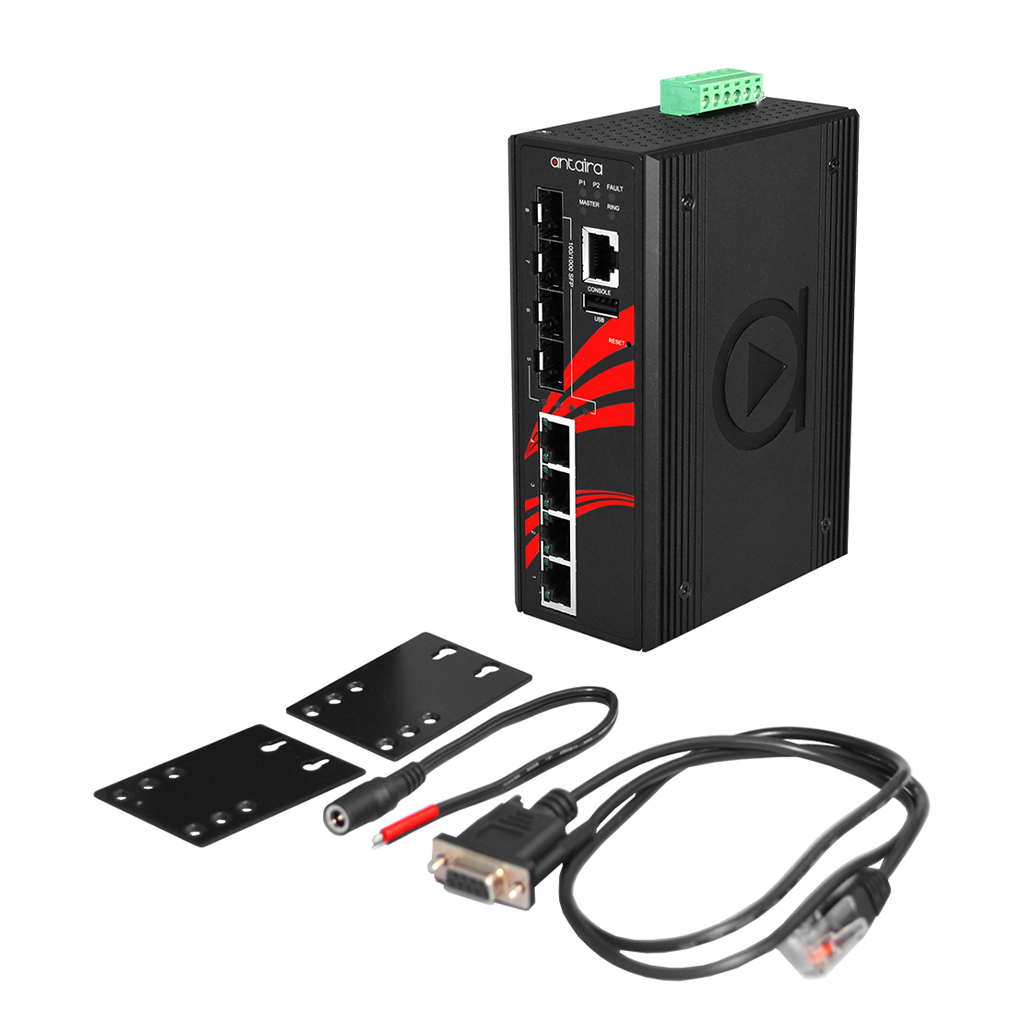

INCLUDED
- 1 - LMX-0804G-SFP
- 1 - DC cable –18 AWG to DC Jack 5.5x2.1mm
- 1 - RJ45 to DB9 Serial Console Cable
- 2 - Wall Mounting Brackets and Screws
STANDARDS
- IEEE 802.3 / 802.3u / 802.3ab / 802.3x / 802.3ad
- IEEE 802.1d / 802.1w / 802.1s / 802.1Q / 802.1X / 802.1p
- ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
- Dimensions : 54 x 142 x 99 mm
- Weight : Unit: 2.5 lbs; Shipping: 3.0 lbs
- Input Voltage : 12~48VDC Redundant Input / 1 removable 6-contact terminal block
- Power Consumption : 15 Watts
- Operating Temperature : STD: -10 to 70°C
- EMI : FCC Class A
- EMS : IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4
- Shock/Vibration/Free Fall : IEC60068-2-27 / 2-6 / 2-32
- Green : RoHS Compliant
- Certifications : FCC, CE, UL 61010-1, UL 61010-2-201
LMX-0804G-SFP
8-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, w/4*10/100/1000Tx Ports + 4*100/1000Fx SFP Fiber Slots.
Antaira’s LMX-0804G-SFP is a 8-port industrial gigabit Light Layer 3 managed Ethernet switch that is embedded with 4*10/100/1000Tx gigabit ports + 4*100/1000Fx SFP ports. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. The LMX-0804G-SFP has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C. It also provides high EFT and ESD protection for industrial networking applications within factory automation, ITS, power/utility, water wastewater, security, or other outdoor/harsh environments.
