LRAD 950NXT
LRAD 950NXT
Featured Information
950NXT-GRY :
Gray LRAD 950NXT communication system with XL Drivers, HD Camera, and pan & tilt capabilities.
950NXT-SWH :
Signal white LRAD 950NXT communication system with XL Drivers, HD Camera, and pan & tilt capabilities.
LRAD 950NXT
ORDERING INFORMATION
- 950NXT-GRY : Gray LRAD 950NXT communication system with XL Drivers, HD Camera, and pan & tilt capabilities.
- 950NXT-SWH : Signal white LRAD 950NXT communication system with XL Drivers, HD Camera, and pan & tilt capabilities.
OPTIONAL ACCESSORIES
- Commissioning : Confirms proper installation and operational functionality. Required for warranty.
- Maxabeam : Gray or signal white mounted searchlight. 12 million candlepower beam capable of illuminating targets up to 3,500 meters away (1 lux on target).
- Power Supply : Gray or signal white 48 volt, 1700 watt AC to DC power supply. Ruggedized and rated for outdoor installation.
- Laser Dazzler Connection Kit : Connection and installation material compatible with Wavelenght Solutions' laser dazzler. This dazzler is a high-power, non-lethal, green laser module used to disorient targets with directed light radiation.
- Laser Range Finder : Lidar-powered sensor used to detect targets and determine their distance and location at ranges up to 180 meters.

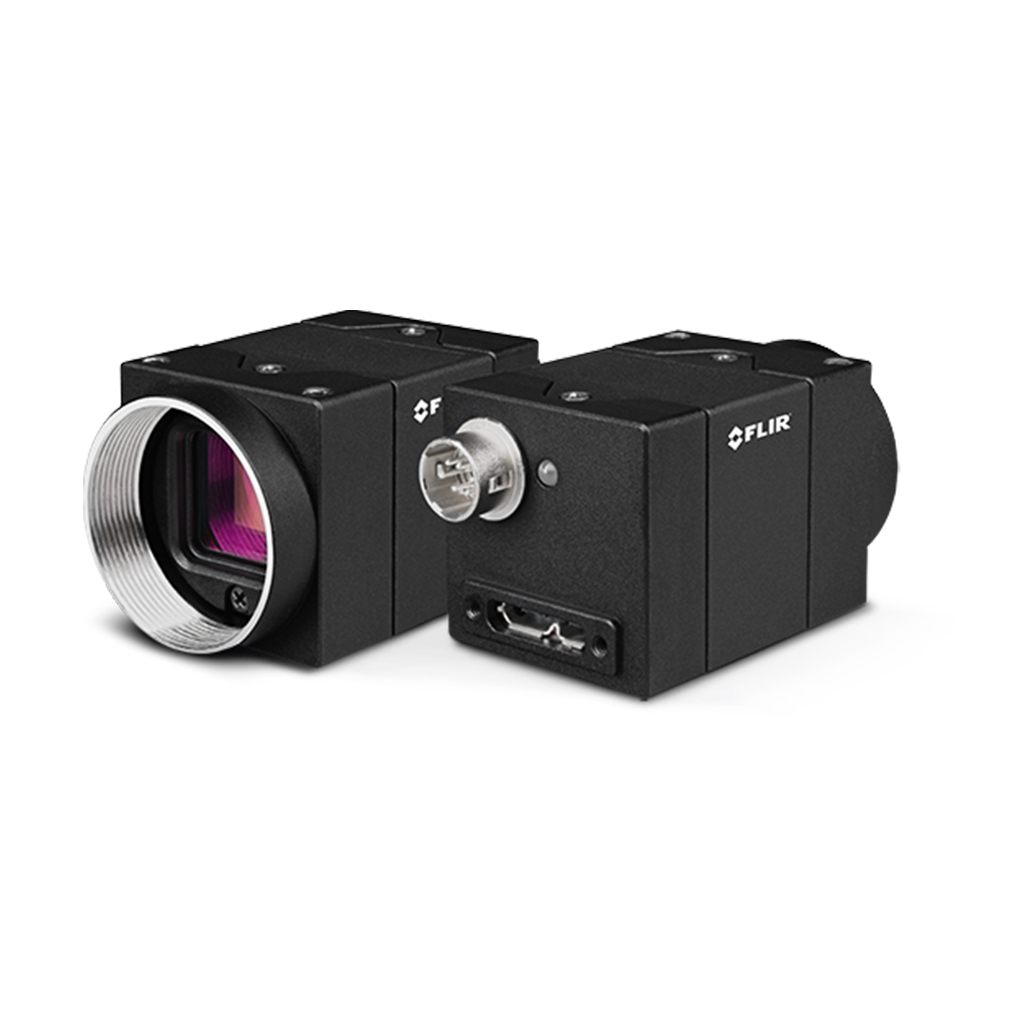

- FLIR Infrared Camera : Video camera that utilizes infrared technology to provide high-contrast thermal imagery.
- Software Application Programming Interface (API) : Software that enables system integrators to quickly and easily develop applications that allow LRAD to receive position and tracking commands from other networked sensors. As part of an integrated system, the LRAD can be programmed to respond to alarms, radars, and other sensor notifications.
- Dual-axis Servo/Gyro Stabilizer : Mechanism that compensates for instability at the installation site to ensure the LRAD remains on target and in the proper position.
- Automatic Object Tracking and Engagement : Program that automatically identifies, tracks, and engages any new or unknown person or object that enters the LRAD's surveillance perimeter.
MECHANICAL
- Dimensions (HxWxD) : 41 x 36 x 17 in (104.1 x 91.4 x 43.2 cm)
- Weight : 208 lb (94.3 kg)
- Construction : Molded low smoke composite, 6061 Aluminum, 316 Stainless hardware
- Positioner Range : 360° non-continuous rotation (+/-180°), +45 to -95° tilt
- Positioner Resolution : 0.1 degrees
ENVIRONMENTAL PERFORMANCE
- Cold/Hot Operating Temperature : MIL-STD-810G, Method 501.5 & 502.5, Procedure II, -33°C to 55°C
- Cold/Hot Storage Temperature : MIL-STD-810G, Method 501.5 & 502.5, Procedure I, -40°C to 70°C
- Operating Humidity : MIL-STD-810G, Method 507.5, 30°C to 60°C, 95% RH
- Rain : MIL-STD-810G, Method 506.5, Procedure I, Blowing Rain
- Salt Fog : MIL-STD-810G, Method 509.5
- Shock : MIL-STD-810G, Method 516.6, Procedure I
- Electromagnetic Interface (EMI) : MIL-STD-461G
INCLUDED ACCESSORIES
- High Definition Camera : HD video camera with adjustable boresight mount and 30x optical zoom lens.
- LRAD Connection and Cable Kit : Configuration and testing kit. Cables for permanent installation not included.
- LRAD Controller Software : Security software with TCP/IP network control. Easily integrated with other network enabled sensors. Allows for command and control of all LRAD 950NXT functions, including device movement, auido playback, and camera control. Also provides detailed diagnostics.
ACOUSTIC PERFORMANCE
- Maximum Peak Output : 155 dB SPL @ 1 meter, C-weighted
- Maximum Continuous Output : 151 dB SPL @ 1 meter, A-weighted
- Sound Projection : +/- 15° @ 1 kHZ/-3 dB
- Communication Ranges : Maximum range up to 3,000 meters in ideal conditions. Operational range up to 1,000 meters over 88 dB of background noise. Ranges based on continuous output.
ELECTRICAL REQUIREMENTS
- Power Input : 48 VDC (+/- 3%) at 35 Amps maximum
- Power Consumption : Idle: 25 Watts (no accessories), 200 Watts (camera and maxabeam on); Voice: 450 Watts (no accessories), 580 Watts (camera and maxabeam on); Peak: 840 Watts (no accessories), 1000 Watts (camera and maxabeam on); Max: 1700 Watts (all possible accessories on)
- Control Interface : Inputs for power and communications. Stainless steel MIL-DTL-D389992 connectors.
- Communications Interface : Ethernet interface with TCP/IP protocol, proprietary LRAD control command language, and graphical user interface included for Windows-based systems. Software development tools available.
INTEGRATED CAMERA
- Lens : 30x zoom, f=4.3 mm (wide) to 129.0 mm (tele), F1.6 to F4.7
- Angle of View (H) : 63.7 degree (wide end) to 2.3 degree (tele end)
- Minimum Illumination : Color: 0.01 lx (F1.6, AGC on, 1/30s)
- Outdoor Enclosure : Watertight, pressurized, nitrogen-filled, with solar shield
The LRAD 950NXT's ability identify and interact with targets from a distance provides security personnel the additional time and information necessary to accurately assess situations and appropriately scale responses. The LRAD 950NXT is operated using LRAD Controller software. This software's comprehensive functionality and easy-to-use controls enable personnel to identify targets on the live video feed, manipulate the 950NXT's pan & tilt position, and broadcast powerful warning messages and tones from a safety of a command and control center.
