ENIX Pro Series ED - 55.0 inch
ED 55T01 UHD
ENIX Pro Series ED - 55.0 inch
ED 55T01 UHD
Featured Information
TFT Technology :
High Quality TFT with LED Backlight Technology, Widescreen, TFT active-matrix liquid crystal panel, RGB vertical stripe, AMVA (Advanced - MVA) LCD Technology, Backlight Lifetime 50000 hrs
Viewable Size and Active Area :
55.0 inch - 1212.8 [47.75''] (H) x 683.6 [26.91''] (V) mm [inch]
Native Resolution and Pixel Pitch :
3840 x 2160 (UHD, 4K) - 0.315 (H) x 0.315 (V) mm
ENIX Pro Series ED - 55.0 inch
ED 55T01 UHD
SPESIFICATIONS
- TFT Technology : High Quality TFT with LED Backlight Technology, Widescreen, TFT active-matrix liquid crystal panel, RGB vertical stripe, AMVA (Advanced - MVA) LCD Technology, Backlight Lifetime 50000 hrs
- Viewable Size and Active Area : 55.0 inch - 1212.8 [47.75''] (H) x 683.6 [26.91''] (V) mm [inch]
- Native Resolution and Pixel Pitch : 3840 x 2160 (UHD, 4K) - 0.315 (H) x 0.315 (V) mm
- Aspect Ratio and Response Time : 16:9 - 8.5 ms (typical) (G to G)
- Light Intensity and Contrast Ratio : 500 cd/m² (typical) (380 cd/m² w/PCtouch) - 4000:1 (typical)
- View Angle and Max Colors : 89 deg. (up/down/left/right) 1.07B color (8 bits + FRC)
- Optimal Resolution and Hz : 3840 x 2160 @ 60 Hz
- Detectable Resolutions : UHD: 3840 x 2160@60Hz POP2 function: 2 x 1920 x 2160@60Hz QHD: 2560 x 1440@60Hz WXGA: 1920 x 1200@60Hz FHD: 1920 x 1080@60Hz UXGA (VESA): 1600 x 1200@60Hz SXGA (VESA): 1280 x 1024@75/60Hz VGA (VESA): 1024 x 768@75/70/60Hz SVGA VESA Analog: 800 x 600@75/72/60/56Hz VGA (VESA): 640 x 480@75/72/60Hz Note: Actual supported signals may differ based on utilized graphics card.
- Composite Video Input(s) : None
- Supported Video Signals : None
- Storage Temperature : -10.0°C / -2.2°F to +50.0°C / +122.0°F, Humidity up to 95%
- IP Rating : Protection: IP65 front - IPx1 Rest of unit
- Compass Safe Distance : N/A
- Type Approval, Testing and Certificates : FCC, CE
- Product Features : Dimmable function to 0 cd/m², Remote control, RJ-45, external wheel key encoder tool, Remote control, RS-232, serial command, Touch keypad
- Power Specifications and Consumption : Multi-power 100-240V AC - 50/60Hz Standard: 150W (Typ) - 250W (Max) w/Touchscreen: 151W (Typ) - 250W (Max)
- User Controls and Activity : User Controls (On right side - Touch Keypad): Power On/Off (monitor), Brightness Control, backlight dimmable to 0 cd/m² (-/+), On Screen Monitor Menu, Swap Source, Picture in Picture, Touch disable (Not in use, reserved), Navigation control (+/-)
- Connectors : • DVI Input: 4 x 24p DVI (female) - Max 3840x2160@30Hz (HDMI 1.4 compliant) • VGA Input: 1 x 15p HD D-SUB (female) - Max 1920x1200@60Hz • DP Input: 2 x 20p DisplayPort (female) - Max 3840x2160@60Hz (DisplayPort 1.2a compliant) • Touch Interface: 1 x USB Type B Connector (female) • RS-232: 1 x 9p D-SUB (female) non-isolated for remote control • RJ-45: 1 x Ethernet RJ45, 8P8C, GPIO interface, for Remote Control • AC Power IN: 1 x Std IEC Inlet
- Product Dimensions and Weight : W:1314.60 [51.75''] x H:784.80 [30.89''] x D:123.00 [4.83''] mm [inch] (w/handles) VESA Support: 400 x 400 / 200 x 400 [l x w] (mm) 4xM8 Approx. 37.34kg / 82.32lbs (standard) Approx. 37.54kg / 82.76lbs (w/touchscreen)
- Product Carton Size and Weight : L:1522.00 [59.92''] x W:303.00 [11.93''] x H:975.00 [38.39''] mm [inch] Approx. 45.2kg / 99.4lbs
- Factory Options : • Projected Capacitive Touch Screen (Multitouch, USB interface) • AG Coated Glass
- Accessories : • ET JGW STD-A1: 1 x ENIX Pro remote controller (RJ45 harness/encoder
- Capabilities / Prepared for : None
- Operating Temperature : -5.0°C / 23.0°F to +45.0°C / 113.0°F, Humidity up to 95%

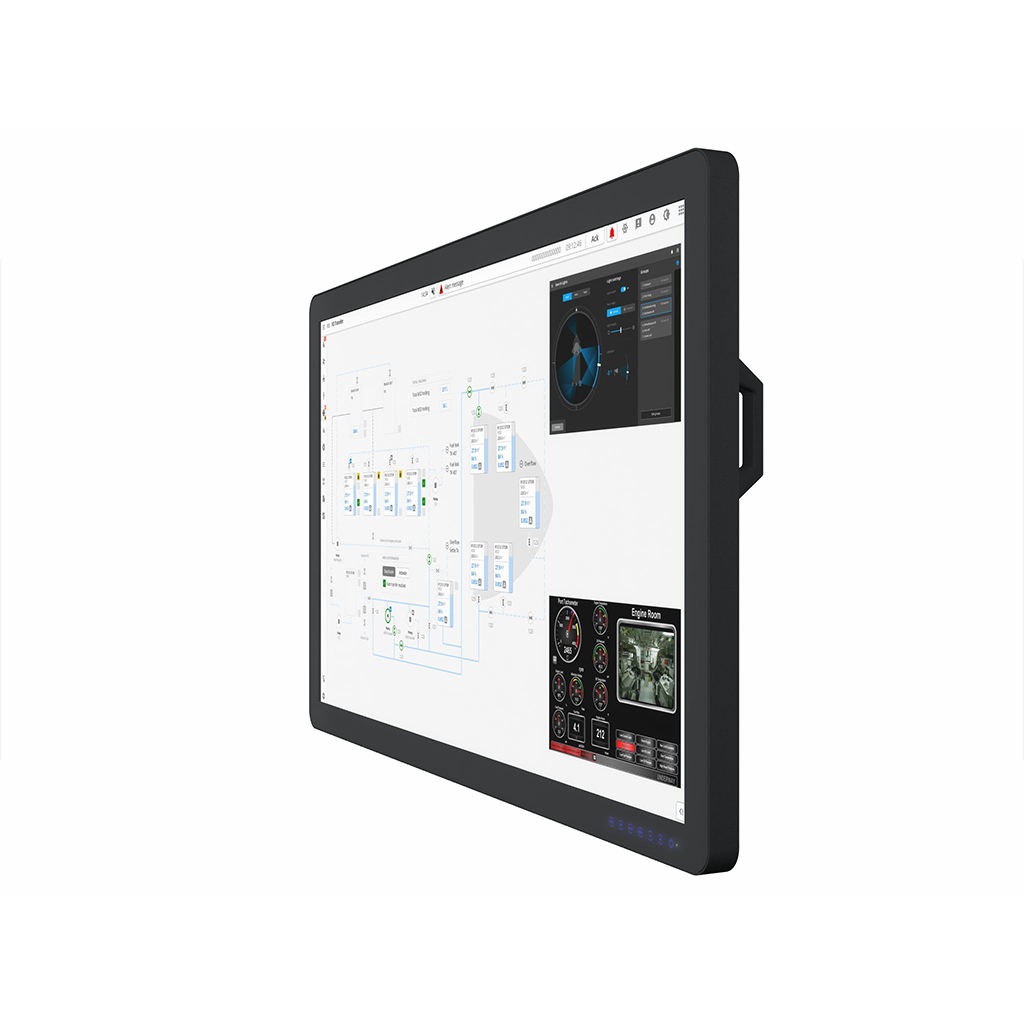

Its cutting-edge, high-definition LED monitor technology enables the presentation of large amounts of data onto one screen, instead of multiple monitors. The 55.0” is available with Projected Capacitive Touch and Anti Glare coating for better functionality in all situations and conditions. It also features an On Screen Monitor menu and Keypad for ease of use.
