Forge 5GigE

Forge 5GigE

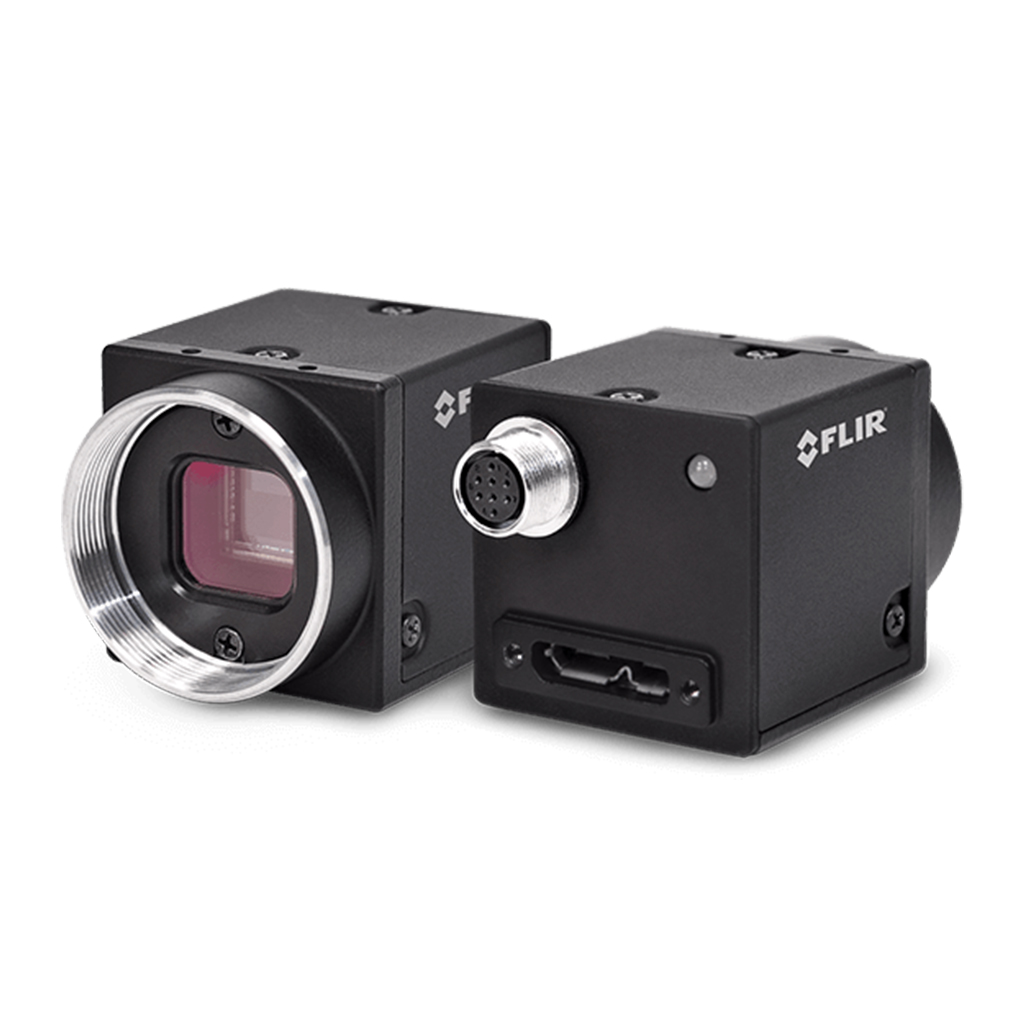

Model :FG-P5G-50S4C-C: 5.0 MP, 120 FPS, Sony IMX547, Color

Featured Information

FG-P5G-50S4C-C: 5.0 MP, 120 FPS, Sony IMX547, Color

Forge 5GigE

Lens Mount : C-mount
ADC : 8-bit, 10-bit, 12-bit
Required Accessories : Lens, Cable, Host Adapter (GigE), Tripod Mount Adapter (ACC-01-0019)
Acquisition Modes : Continuous Single Frame Multi Frame
Exposure Range : 6 µs to 30 seconds
Flash Memory : 4 MB non-volatile memory
Gain Range : 0 db to 48 dB
Image Buffer : 500 MB
Image Processing : Color correction matrix, gamma, lookup table, saturation, and sharpness
Partial Image Modes : Pixel binning, decimation, ROI

ADC : 8-bit, 10-bit, 12-bit
Auxiliary Output : 3.3 V, 120 mA maximum
Chroma : Color
Dimensions [W x H x L] : 29 mm × 44 mm × 74 mm
Interface : 5GigE PoE
Lens Mount : C-mount
Mass : TBD
Megapixels : 5
Non-isolated I/O Ports : 1 bi-directional, 1 input
Operating Humidity : 20 to 80% (no condensation)

Serial Port : 1 (over non-isolated I/O)
Storage Humidity : 30 to 95% (no condensation)

COMPLIANCE & CERTIFICATIONS

Compliance : CE, FCC, KCC, RoHS. The ECCN for this product is: EAR099.
Machine Vision Standard : GigE Vision v1.2
Warranty : 3 years

SPECIFICATIONS

Part Number : FG-P5G-50S4C-C
Resolution : 2448 × 2048
Frame Rate : 120
Megapixels : 5
Chroma : Color
Sensor Name : Sony IMX547
Sensor Type : CMOS
Sensor Format : 1/1.8
Readout Method : Global shutter
Pixel Size : 2.74

User Sets : 2 user configuration sets for custom camera settings

Opto-isolated I/O Ports : 1 input, 1 output
Part Number : FG-P5G-50S4C-C
Pixel Size : 2.74
Power Consumption [Maximum] : 7 W
Power Requirements : Power over Ethernet (PoE), or 12 V nominal (8 - 24 V) via GPIO
Readout Method : Global shutter
Resolution : 2448 × 2048
Sensor Format : 1/1.8
Sensor Name : Sony IMX547
Sensor Type : CMOS

RECOMMENDED SYSTEM CONFIGURATION

CPU : 3.1 GHz or equivalent CPU
Hard Drive : 200 MB hard drive space
Operating System : Windows or Linux (32–bit or 64–bit)
Port : 5Gigabit Ethernet Port
Power Sourcing Equipment : IEEE802.3af-2003 PoE Interface Card / Injector/ Switch or Camera Power Supply (12 V 1.5 A, 6–pin Hirose)
RAM : 2 GB RAM or more
Required Accessories : Lens, Cable, Host Adapter (GigE), Tripod Mount Adapter (ACC-01-0019)

FG-P5G-50S4C-C: 5.0 MP, 120 FPS, Sony IMX547, Color

Forge 5GigE

The Forge is based on an all-new camera platform designed to support a feature and sensor set to easily build robust and powerful systems faster. It offers flexible link speeds as well as the ability to go beyond 5GigE performance and control data transfer to the host. With OEMs in mind, the Forge provides features for easy integration, a seamless upgrade path from 1GigE systems and supports a choice of SDK’s and GigE Vision compliant software packages.
