LMX-1600G-M12-67
16-Port Industrial M12 IP67 Waterproof Gigabit Light Layer 3 Managed Ethernet Switch, with 16*10/100/1000Tx M12 Connecto

Featured Information

Ambient Relative Humidity :
5% to 95%, (non-condensing)
Bypass Protection :
Ethernet Port 8 and Port 16
Certifications :
FCC, CE
Product thumb
LMX-1600G-M12-67
16-Port Industrial M12 IP67 Waterproof Gigabit Light Layer 3 Managed Ethernet Switch, with 16*10/100/1000Tx M12 Connecto

SPESIFICATIONS

  • Ambient Relative Humidity :  5% to 95%, (non-condensing)
  • Bypass Protection :  Ethernet Port 8 and Port 16
  • Certifications :  FCC, CE
  • Configuration :  Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
  • Configuration Back Up :  1*USB 2.0 with M12 4-pin A-coded female connector for configuration backup/restore
  • Digital Input :  1* Digital Input (DI) with M12 5-Pin A-coded male connector: State 0: -30~8VDC / State 1: 10~30VDC, Max. input current: 8mA
  • Dimensions :  166.2 x 295 x 101.3 mm (W x H x D)
  • EMI :  FCC Part 15 Subpart B Class A, CE EN55032/EN61000-6-4 Class A
  • EMS :  CE EN55035/EN61000-6-2: IEC61000-4-2,3,4,5,6,8
  • Ethernet Port :  16*10/100/1000 Base-T(X), 8-pin M12 X-Coded female connectors, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection

  • MAC Table Size :  32K
  • Memory Buffer :  4Mbits
  • Mounting :  Wall mounting
  • Network Cable :  10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m) 1000Base-T: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
  • Network Redundancy :  STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
  • Operating Temperature :  -10°C to 65°C
  • Overload Current Protection :  Present
  • Power Connection :  Dual DC power inputs through M12 5-pin K-coded male connector
  • Power Saving :  ActiPHY, PerfectReach, IEEE 802.3az EEE power management
  • Priority Queues :  8

  • Transfer Rate :  14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
  • Vibration :  IEC60068-2-6
  • VLAN Groups :  4095
  • Warranty :  5 Years
  • Weight :  Unit: 8.89 lbs. Shipping: 10.49 lbs.

  • Flow Control :  IEEE 802.3x flow control, back pressure flow control
  • Free Fall :  IEC60068-2-32
  • Green :  RoHS Compliant
  • Housing :  Metal, IP67 protection
  • IGMP Group :  1024
  • Input Voltage :  24~55VDC Redundant Input
  • Jumbo Frame :  9.6Kbytes
  • L2 Switching :  Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
  • L3 Switching :  DHCP option82, static routes
  • LED Indicators :  System: Power 1, Power 2, Master, Ring, Status Ethernet ports: Speed/Link/Active

  • Processing Type :  Store and forward
  • QoS :  802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
  • Relay Contact :  24VDC, 1A resistive
  • Reverse Polarity Protection :  Present
  • RS232 Serial Console :  1*RS232 with M12 5-pin A-coded female connector
  • Shock :  IEC60068-2-27
  • Storage Temperature :  -40°C to 85°C
  • Switching Architecture :  Back-Plane (Switching Fabric): 32Gbps
  • System / Diagnostics :  Dual Image Protection, PING, PING6
  • System Power Consumption :  28W

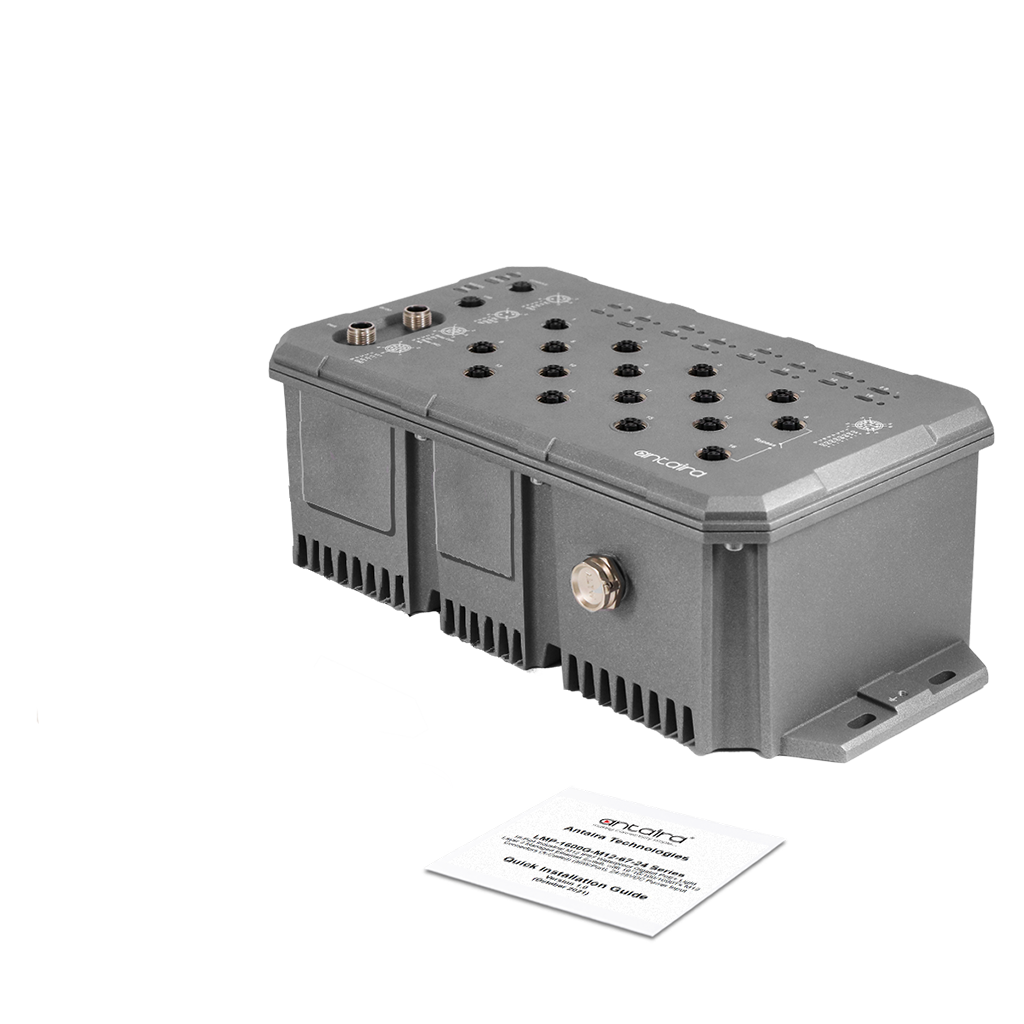

INCLUDED

  • Dust Cover Set
  • LMX-1600G-M12-67
  • Quick Installation Guide

Product thumb
LMX-1600G-M12-67
16-Port Industrial M12 IP67 Waterproof Gigabit Light Layer 3 Managed Ethernet Switch, with 16*10/100/1000Tx M12 Connecto

Antaira Technologies’ LMX-1600G-M12-67 is a 16-port managed gigabit Ethernet switch, which provides 16*10/100/1000 Base-T(X). LMX-1600G-M12-67 is full manageable light layer 3 Ethernet switch series and supports power inputs redundancy. LMX-1600G-M12-67 offers standardized network redundancy ITU-T G.8032 ERPS v2 (Ethernet Ring Protection Switch) protocol, providing <50ms recovery time to the network. LMX-1600G-M12-67 provides comprehensive network security and management capability by supporting Multi-user account, IGMP, GVRP, VLAN, QoS, SNMP, RADIUS, TACACS+, Aggregation (Static, LACP), SSH, SSL, IP source guard to create a highly-secured network environment. For power saving purpose, assuring PD priority and enhancing security level of the network. LMX-1600G-M12-67 is an M12 IP67 industrial gigabit Ethernet switch that meets the high-reliability requirements demanded by industrial applications. Its M12 connectors ensure a tight and robust connection and it guarantees reliable operation on applications that are subject to high vibration and shock in dust, liquid or gas laden environments. Being able to operate under the standard temperature range from -10°C to 65°C, the LMX-1600G-M12-67 can be installed in almost any harsh environment.
