STE-502C
2-Port RS-232/422/485 To Ethernet Device Server
STE-502C
2-Port RS-232/422/485 To Ethernet Device Server
Featured Information
Approvals :
FCC, CE
CPU :
16-bit Embedded CPU
Data Bits :
7 or 8 Data Bits
STE-502C
2-Port RS-232/422/485 To Ethernet Device Server
SPESIFICATIONS
- Approvals : FCC, CE
- CPU : 16-bit Embedded CPU
- Data Bits : 7 or 8 Data Bits
- Data Rate : 1200 ~ 230400 bps (230 Kbps)
- Dimensions : 85 x 75 x 28 mm (3.35 x 2.95 x 1.10 inch)
- EEPROM : 512 Bytes
- Flash Memory : 512 KBytes
- Flow Control : Xon/Xoff, RTC/CTS
- Led Displays : LAN, RUN, and COM
- Management : Web, Telnet, Serial Console, and Windows Based Utility
- Operating System : Windows OS Based Configuration Utility, Virtual COM Software
- Stop Bits : 1 or 2
- Storage Temperature : -20° C to 85° C (-4° F to 185° F)
- Internet Interface : 10/100Mbps Fast Ethernet
- Operating Humidity : 20% to 90% (Non-Condensing)
- Operating Temperature : 0° C to 60° C (32° F to 140° F)
- Parity : None, Even, Odd, Mark, Space
- Power : 9 ~ 30VDC
- Power Consumption : 3 Watts
- Protocols : HTTP, SNMP, ARP, Telnet, ICMP, BOOTP, DHCP
- SDRAM : 512 KBytes
- Serial Connector: DB9 Male
- Serial İnterface : RS-232/422/485
STE-502C
2-Port RS-232/422/485 To Ethernet Device Server

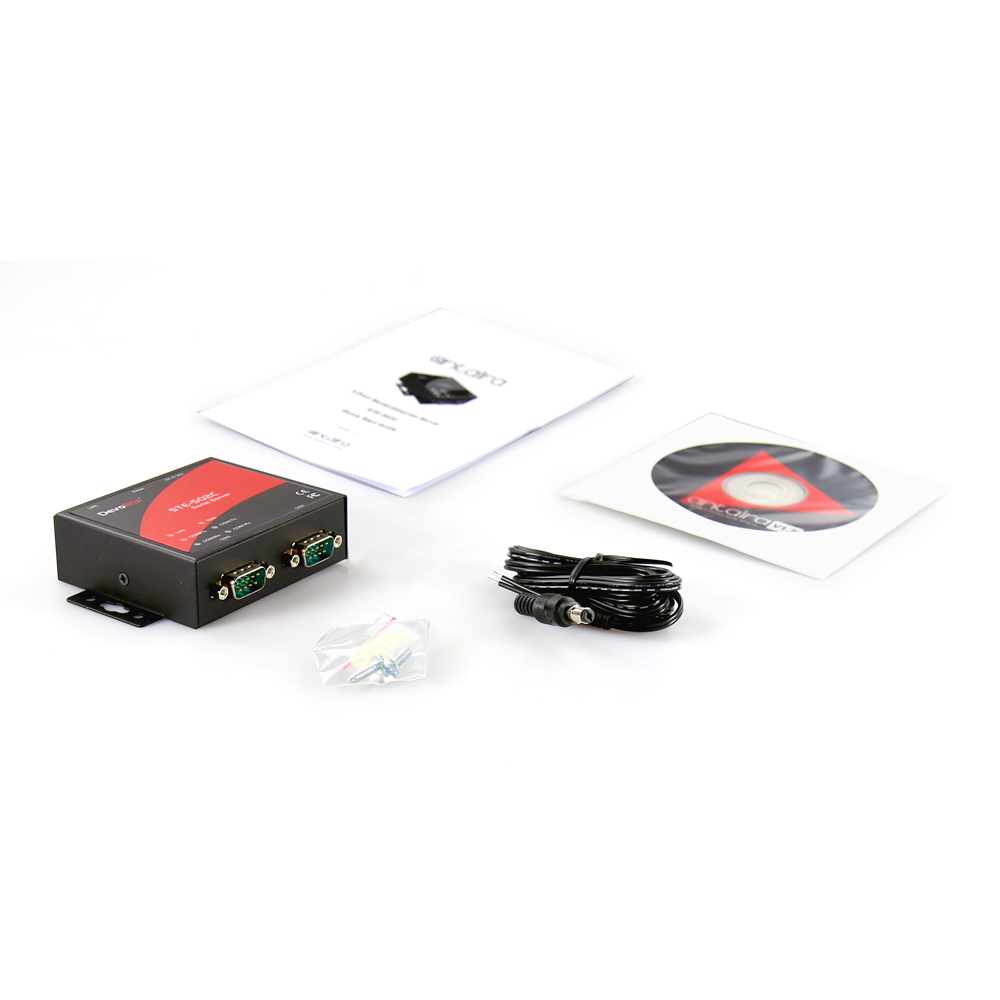

The STE-502C is a dual port gateway between Ethernet (TCP/IP) and Serial signal communications. It allows almost any serial device to be connected to a new or existing Ethernet network. By encapsulating serial data and transporting it over Ethernet, the STE-502C offers full-duplex, bi-directional data transmission transparent between serial port and Ethernet network. Capable of using either RS232, RS422 or RS485 serial communication standards the STE-502C is ideal for upgrading industrial serial devices onto a Ethernet network.
