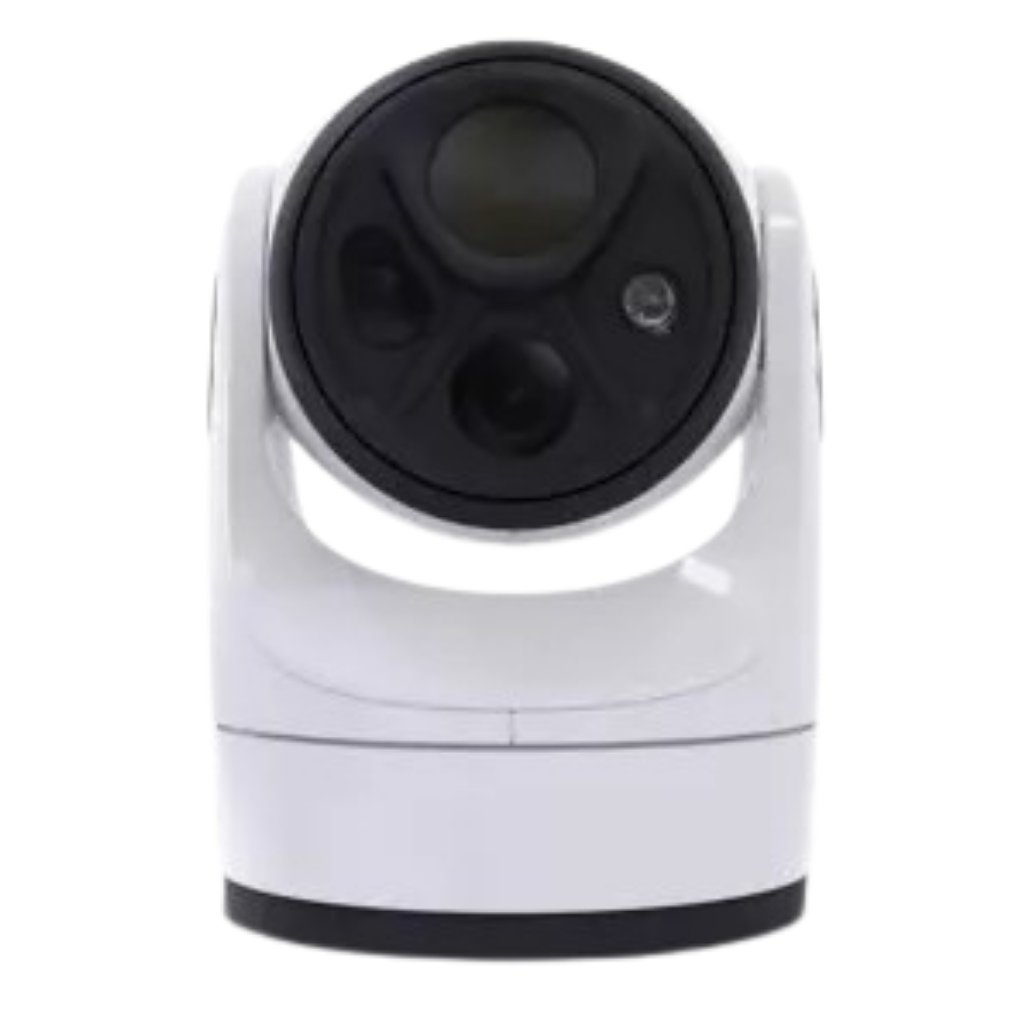

FLIR M460
Elite Marine Thermal Camera System
.png)
.png)
FLIR M460
Elite Marine Thermal Camera System
Featured Information
Detector Type :
640 × 512 VOx Microbolometer
Video Refresh Rate :
30Hz
Field of View :
5.86° – 30.68°
Focal Length :
26 mm (Wide) to 105 mm (Narrow)
Optical Zoom :
5.4× optic zoom
Digital Zoom :
4× digital zoom
Image Processing :
FLIR Proprietary Digital Detail Enhancement
FLIR M460
Elite Marine Thermal Camera System
THERMAL CAMERA
- Detector Type : 640 × 512 VOx Microbolometer
- Video Refresh Rate : 30Hz
- Field of View : 5.86° – 30.68°
- Focal Length : 26 mm (Wide) to 105 mm (Narrow)
- Optical Zoom : 5.4× optic zoom
- Digital Zoom : 4× digital zoom
- Image Processing : FLIR Proprietary Digital Detail Enhancement
LAZER SPOTLIGHT
- Beam : 2.2º
- Lumens : 1000 lm
- Max Illumination Range : 1 km (0.25 lux)
TARGET TRACKING
- AI Enhanced Detection and Classification : Yes (thermal and visible)
- Video Target Tracking : Yes (thermal and visible)
- Radar Target Tracking : Yes (via NMEA 0183)
POWER
- Supply Voltage : 12 to 24 volts DC (10.8V min to 31.2V max)
- Current : Peak 23 amps
- Power Consumption : 230 Watts
NETWORK and CONNECTORS
- Ethernet : 1 adet RayNet
- DeviceNet : NMEA 2000
- Bulkhead : NMEA 0183 Input Output
- IEEE Standard : Conforms to IEEE 802.3ab
VISIBLE CAMERA
- Detector Type :
- Resolution :
- Minimum Illumination : .03 lux (ICR off, high sensitivity mode on)
- 0.0002 lux (ICR on, high sensitivity mode on)
- Optical Zoom : 25× Optical Zoom
- Digital Zoom : 12× digital zoom
- Focal Length : 6.5-162.5mm
- Field of View : 59° Wide FOV to 2.8° Narrow FOV
LAZER RANGE FINDER
- Maximum Effective Range : 12 km (6.5nm) (Range performance depends on sea conditions and target size)
- Nato Target Range : 6 km (3.24nm) (Range performance depends on sea conditions and target size)
SYSTEM SIPECIFICATION
- Gyro Stabilization Yes (three-axis)
- Digital Image Stabilization Yes (visible camera only)
- Network Video Output Four, independent H.264 network video streams
- Video Connector BNC 6G-SDI output
- ONVIF Compliant Yes Profiles S
- Pan and Tilt 360° Continuous Pan, +/-90° Tilt
ENVIRONMENTAL SIPECIFICATION
- Operating Temperature : -25 °C to +55 °C (-13 °F to 131 °F)
- Storage Temperature : -30 °C to +70 °C (-22 °F to 158 °F)
- Relative Humidity : Max 95%
- Automatic Window Defrost : Standard at power-up
- Water Ingres : IPX6 and IPX7
- Sand and Dust : IEC/EN 60529:1992+A2:2013 (IP6X) / MIL-STD-810H
- Vibration : IEC/EN 60945:2002 (exposed)
- Altitude : MIL-STD-810H
- Lightning Protection and Wind : Near Strike at 2 kV - 100 knot (115.2 mph)
- EMC : IEC/EN 60945:2002 / MIL-STD-461 Section RE101
FLIR M460
Elite Marine Thermal Camera System
Engineered for precision in the harshest marine environments, the M460 combines AI-driven multi spectral imaging with advanced detection capabilities. More than thermal camera, the M460 combines a superior FLIR LWIR thermal sensor with a 4K ultra low-light visible camera, a 12km ITAR free laser rangefinder and a long-range laser spotlight. M460 integrates these powerful sensor payloads into a rugged three-axis stabilized gimbal housing, offering superior long-range detection capabilities with best-in-class image stabilization.
