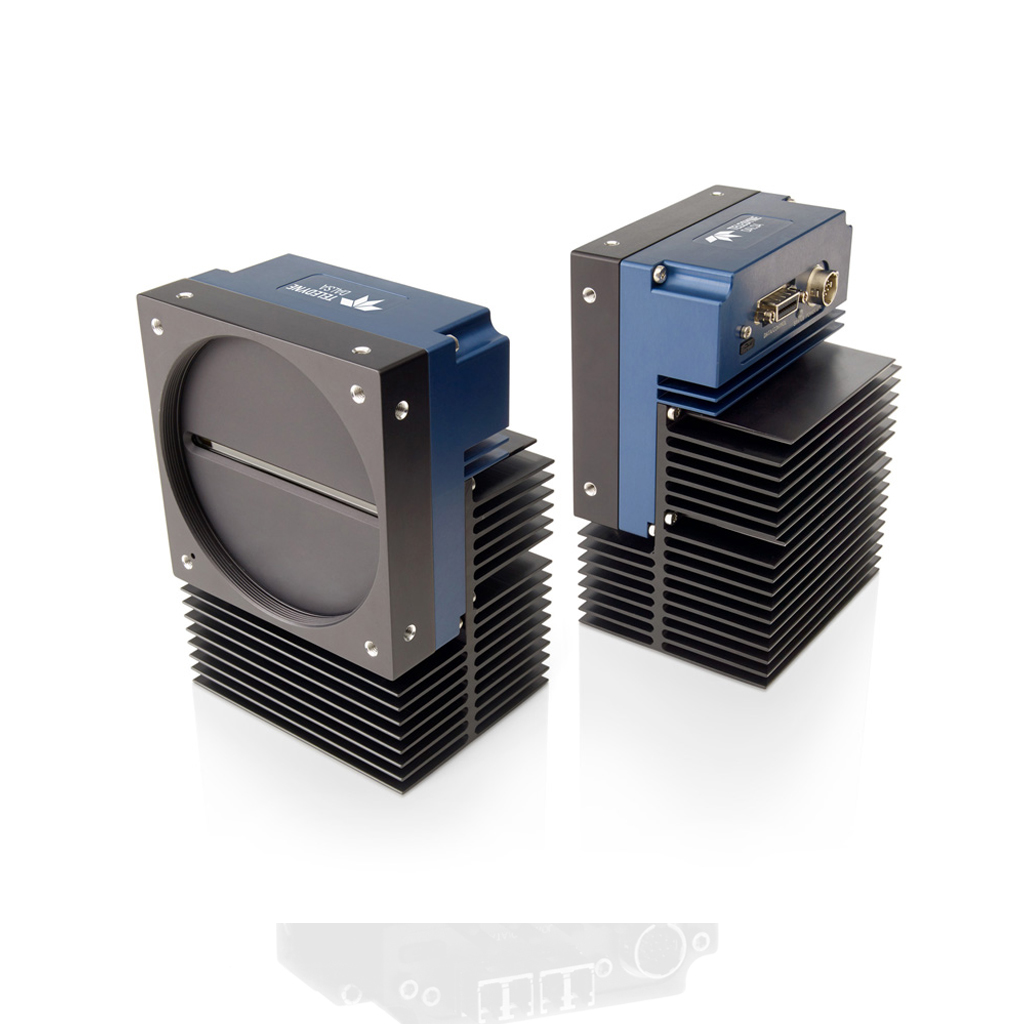

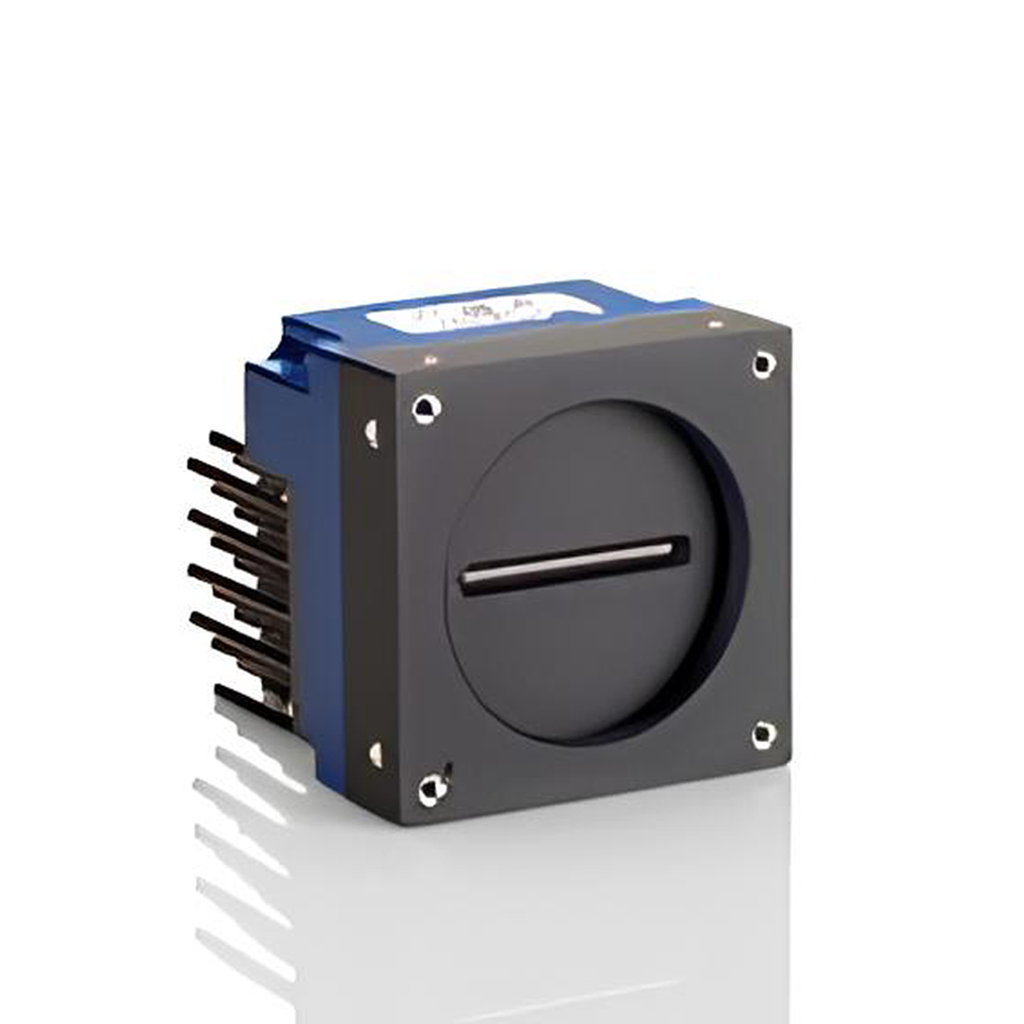

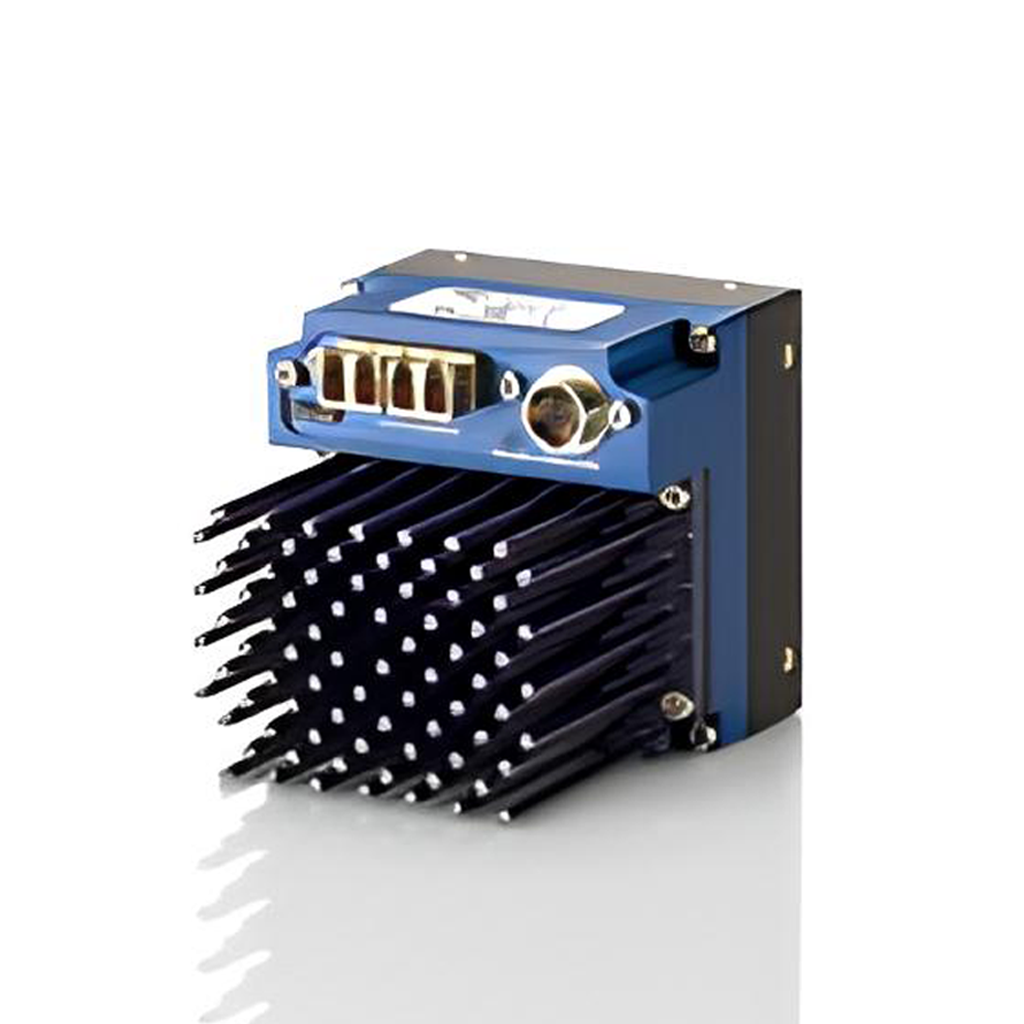

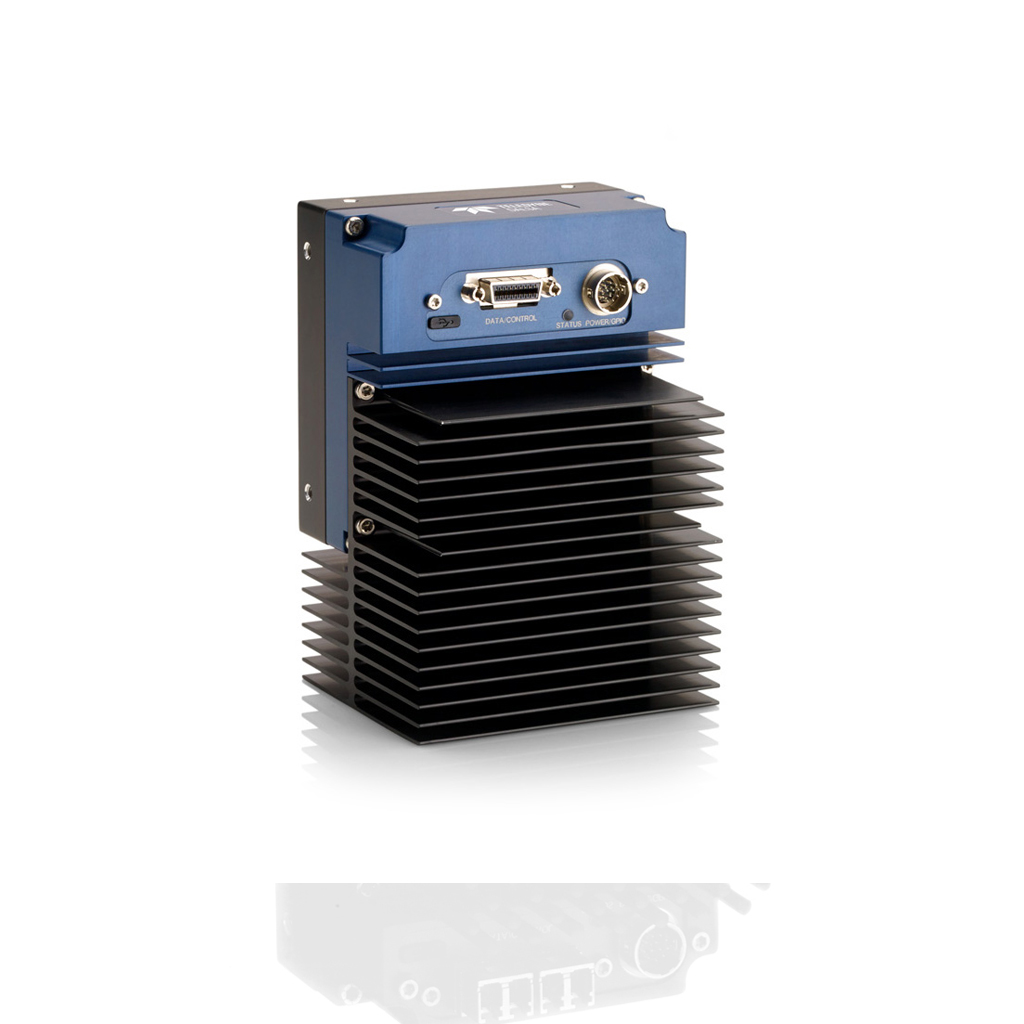

Linea ML Color 8k Fiber 280 kHz

LEADING EDGE MULTI-LINE CMOS

LEADING EDGE MULTI-LINE CMOS

Model :Linea ML Color 8k Fiber 280 kHz

Featured Information

Part Number :

ML-FC-08K10T

Resolution :

8192x3

Spectrum :

Color

LEADING EDGE MULTI-LINE CMOS

Features :

Part Number : ML-FC-08K10T
Resolution : 8192x3
Spectrum : Color
Interface : Camera Link HS, Fiber Optic
Pixel Size : 5 µm
Max Line Rate : 280 kHz
Total Pixels : ~ 8 k
Bit Depth : 8 bit
Operating Temperature : 0—65 °C
Dynamic Range : 60 dB

Dimensions (W x H x L) : 76x76x85mm
Mass : 500 g

Linea ML Color 8k Fiber 280 kHz

LEADING EDGE MULTI-LINE CMOS

Linea ML Color 8k & 16k Datsheet

The Linea ML brings leading edge CMOS technology that is faster than ever, with affordable multiline architecture that enables the newest, most powerful inspection techniques including HDR, color and multispectral analysis, and multi-field imaging (single-pass bright/darkfield). With a native fiber optic interface for easy, low-cost long cabling, the Linea ML opens new horizons in inspection.
